Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

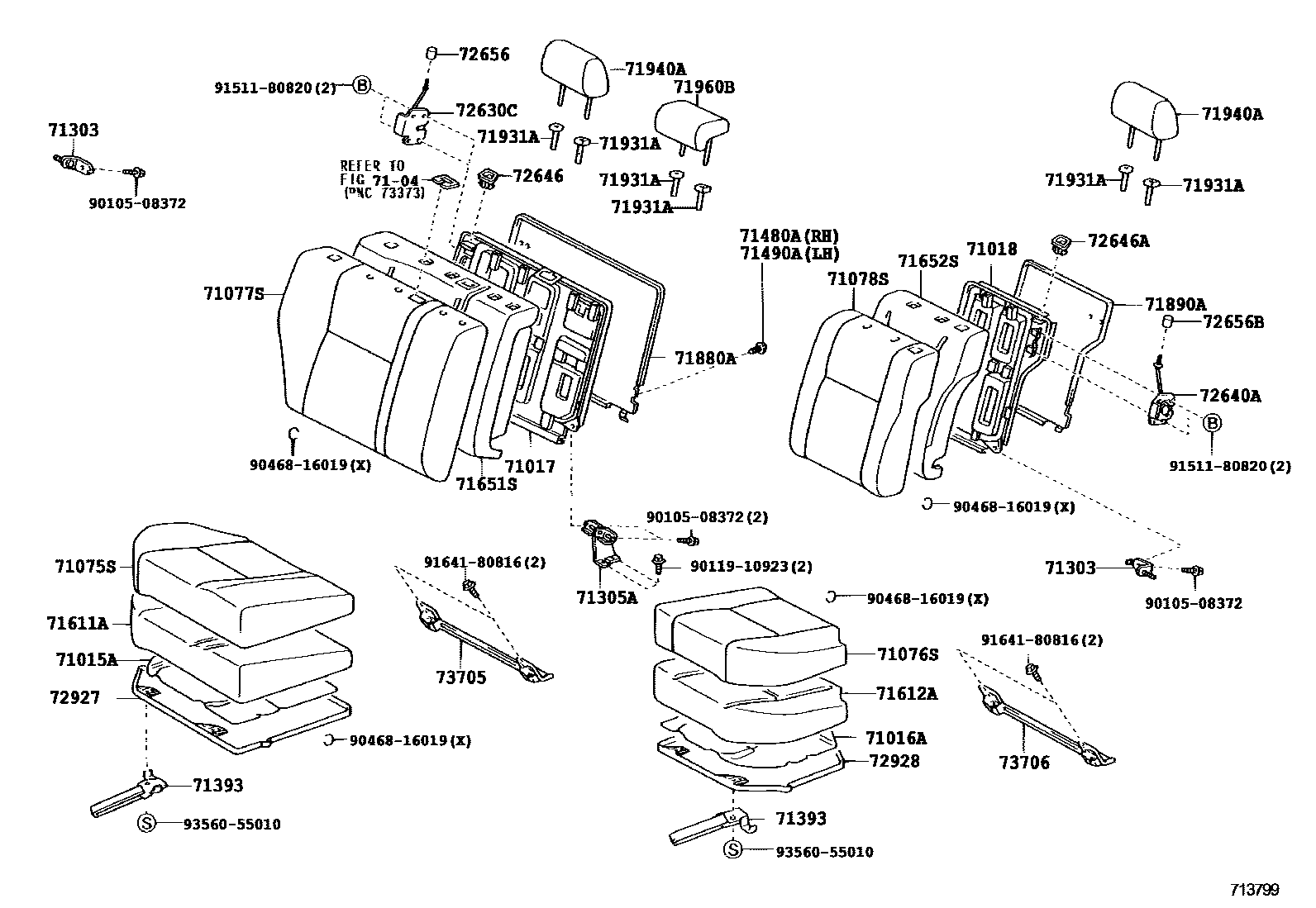

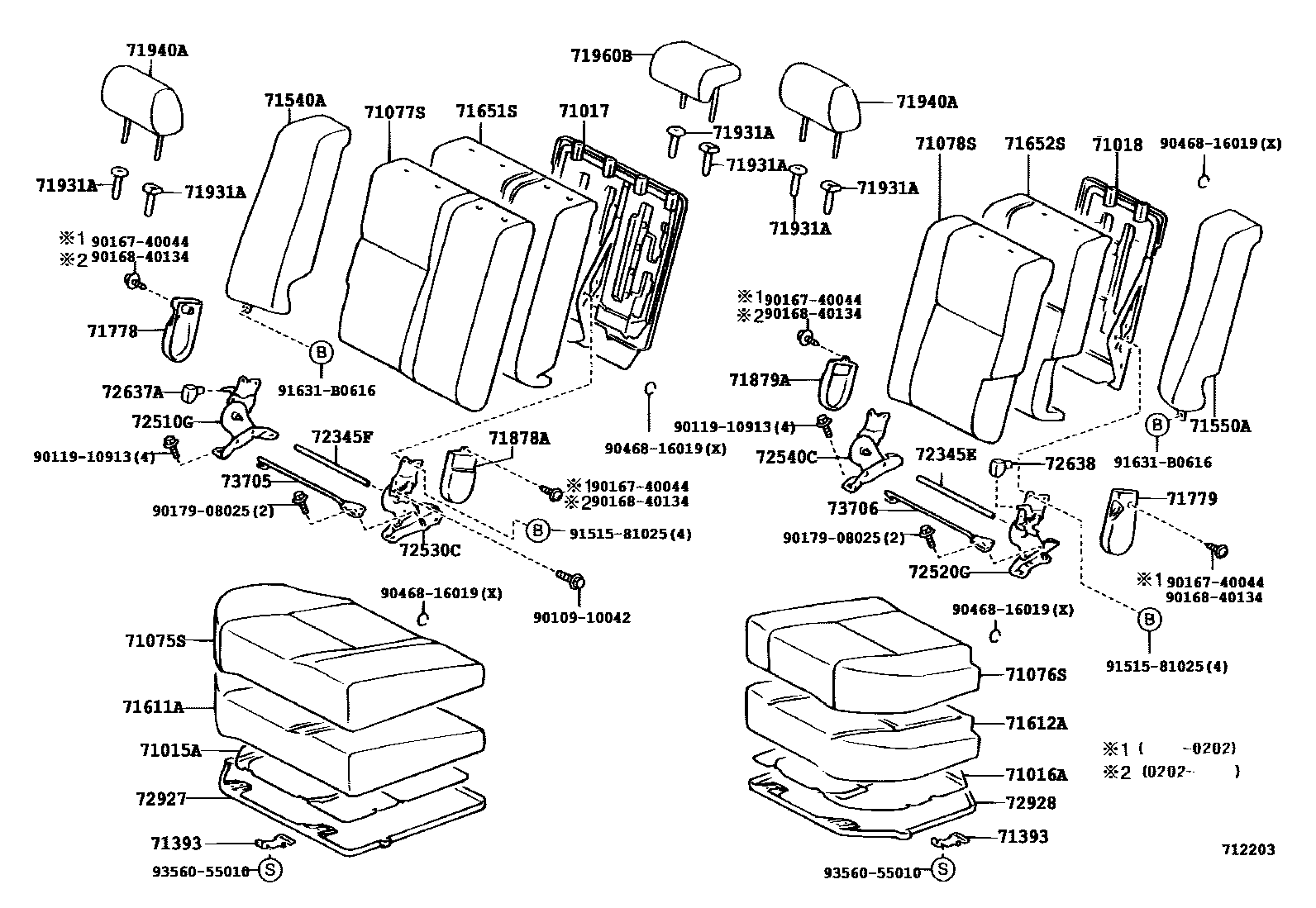

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-13070 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-02150 · 71017-13280 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02080 · 71018-13120 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02060 |
| 71480A | Clip (for rear seat back) | 90467-08188 |
| 71490A | Rear left seat back clip | 90467-08188 |
| 71611A | Rear right seat cushion | 71611-12660 · 71611-13240 |
| 71612A | Rear left seat cushion | 71612-12310 · 71612-13110 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12820 · 71651-13320 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12700 · 71652-13170 |
| 71931A | Rear seat headrest bracket | 71956-47010 |
| 72345E | Seat back recliner connecting tube | 72345-13050 |
| 72345F | Right seat back recliner connecting pipe | 72345-13050 |
| 72510G | Rear right seat backrest inclination outer adjuster assembly | 72510-13020 |
| 72520G | Rear left seat backrest tilt outer adjuster assembly | 72520-13020 |
| 72530C | Rear right seat backrest inclination angle inner adjuster assembly | 72530-13040 |
| 72540C | Rear left seat backrest inclination angle inner adjuster assembly | 72540-13020 |
| 72630C | Rear right seat back lock assembly | 72630-13140 |
| 72640A | Rear left seat back lock assembly | 72640-13130 |
| 72927 | Rear right seat cushion lower cover | 72927-13040 |
| 72928 | Rear left seat cushion lower cover | 72928-13030 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02050 · 73705-13010 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02040 · 73706-13010 |
