Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

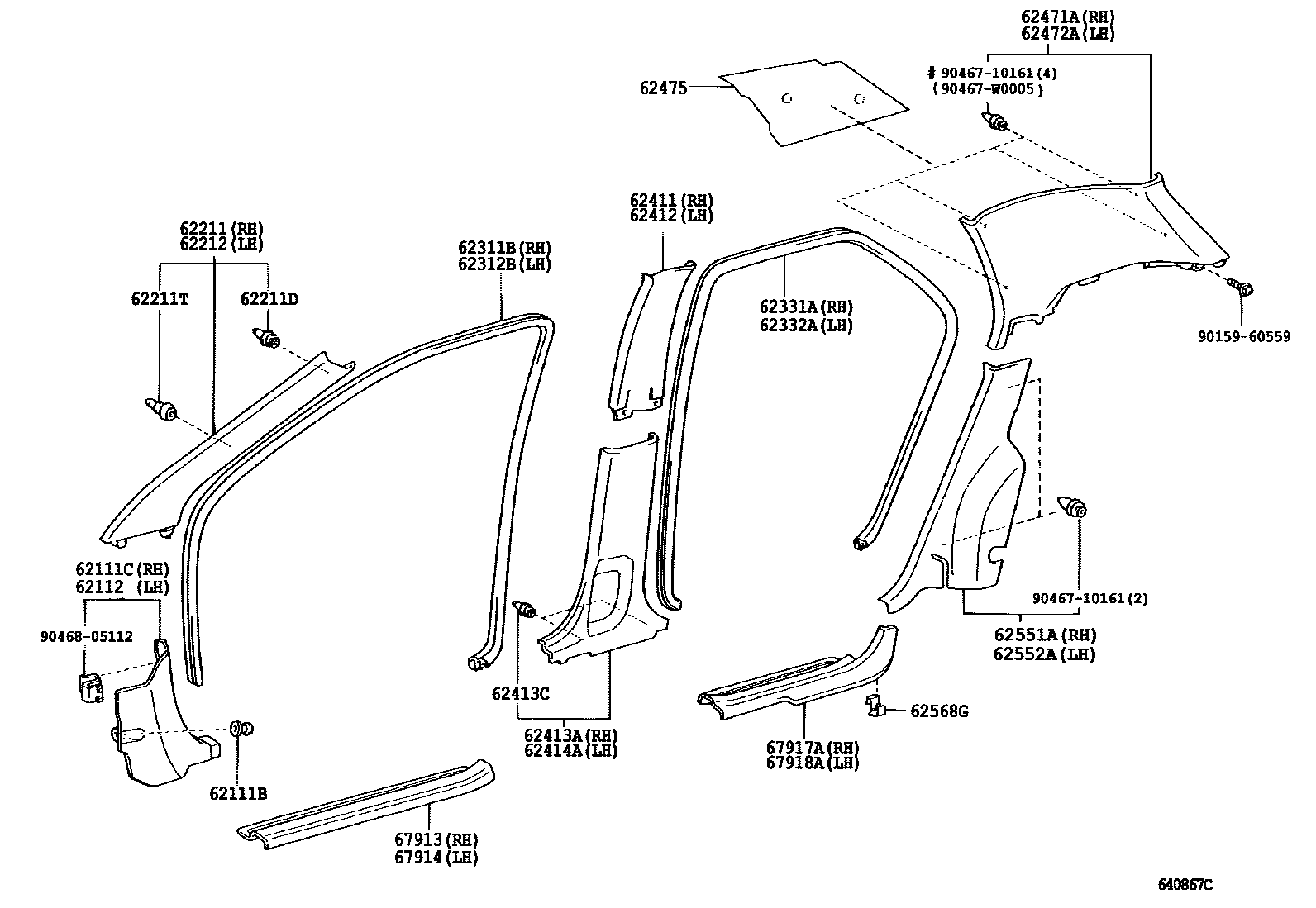

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 · 90467-10188 · 90467-W0005 |
| 62211T | Clip (for front pillar decorative panel) | 62217-13010 · 90467-10192 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-09215 |
| 62475 | Roof side interior trim panel lining | 62475-13080 |
| 62568G | No. 3 door inner sill protection strip clip | 62568-13030 |
