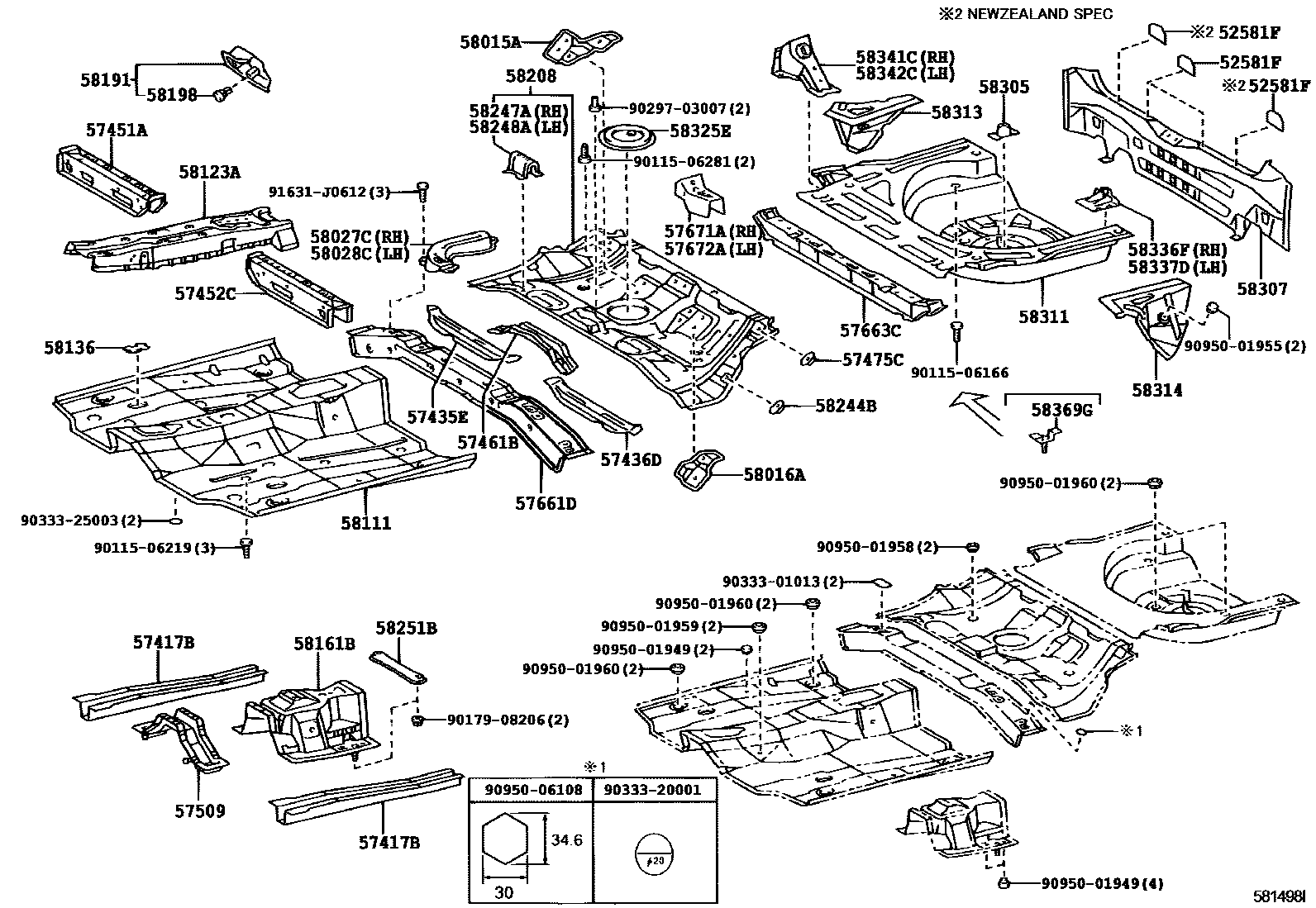

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52581F | rear bumper protector | 52581-13030 |
| 57417B | Front underfloor reinforcement | 57417-13020 · 57418-13020 |
| 57435E | Center floor right longitudinal beam | 57435-12010 |
| 57436D | Center floor left longitudinal beam | 57436-12010 |
| 57451A | Front floor right cross member | 57051-12020 · 57451-12191 |
| 57452C | Front floor left cross member | 57452-12021 |
| 57461B | Center floor No. 1 beam sub-assembly | 57461-12130 |
| 57475C | Front floor cross member panel | 57475-13020 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-12040 |
| 57661D | rear floor front cross member | 57407-13100 |
| 57663C | Rear floor center cross member | 57663-13040 · 57663-13060 |
| 57671A | Rear floor right longitudinal beam bracket | 57671-13010 |
| 57672A | Rear floor left longitudinal beam bracket | 57672-13010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12060 · 58015-12070 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-13040 |
| 58027C | Center floor right side panel sub-assembly | 58027-13010 |
| 58028C | Center floor left panel sub-assembly | 58028-13010 |
| 58111 | front floor pan | 58111-12902 |
| 58123A | shift lever bracket | 58013-12040 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-12070 · 57805-12140 |
| 58191 | Front floor footrest | 58191-12120 |
| 58198 | Footrest clip | 58198-20210 · 90467-09220 |
| 58208 | central floor base | 58211-13910 · 58211-13912 |
| 58244B | Rear seat cushion mounting bracket | 58244-13030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12070 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12070 |
| 58251B | front floor bracket | 58251-12030 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-13150 · 58307-13190 |
| 58311 | rear floor pan | 58311-13300 · 58311-13900 |
| 58313 | Rear floor right panel | 58313-13150 · 58313-13200 |
| 58314 | rear floor left panel | 58314-13140 · 58314-13170 |
| 58325E | Rear floor access hole cover | 58325-12110 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-02060 |
| 58337D | Rear floor bottom left reinforcement | 58337-02010 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-13040 · 58341-13060 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-13040 · 58342-13060 |
| 58369G | No. 3 fuel pipe bracket | 58369-12020 |
