Toyota COROLLA 仪表板和手套箱 — Figure 5501

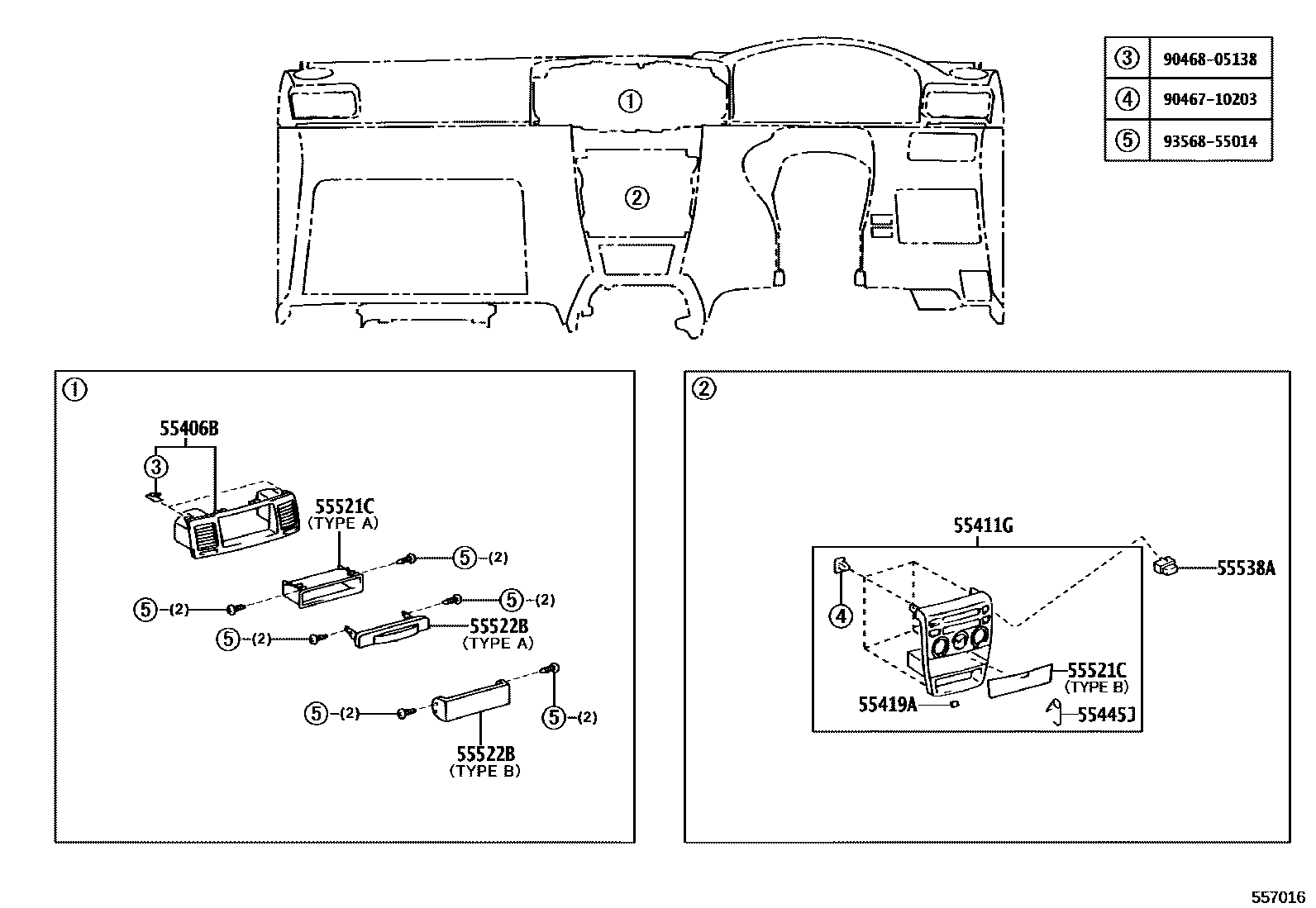

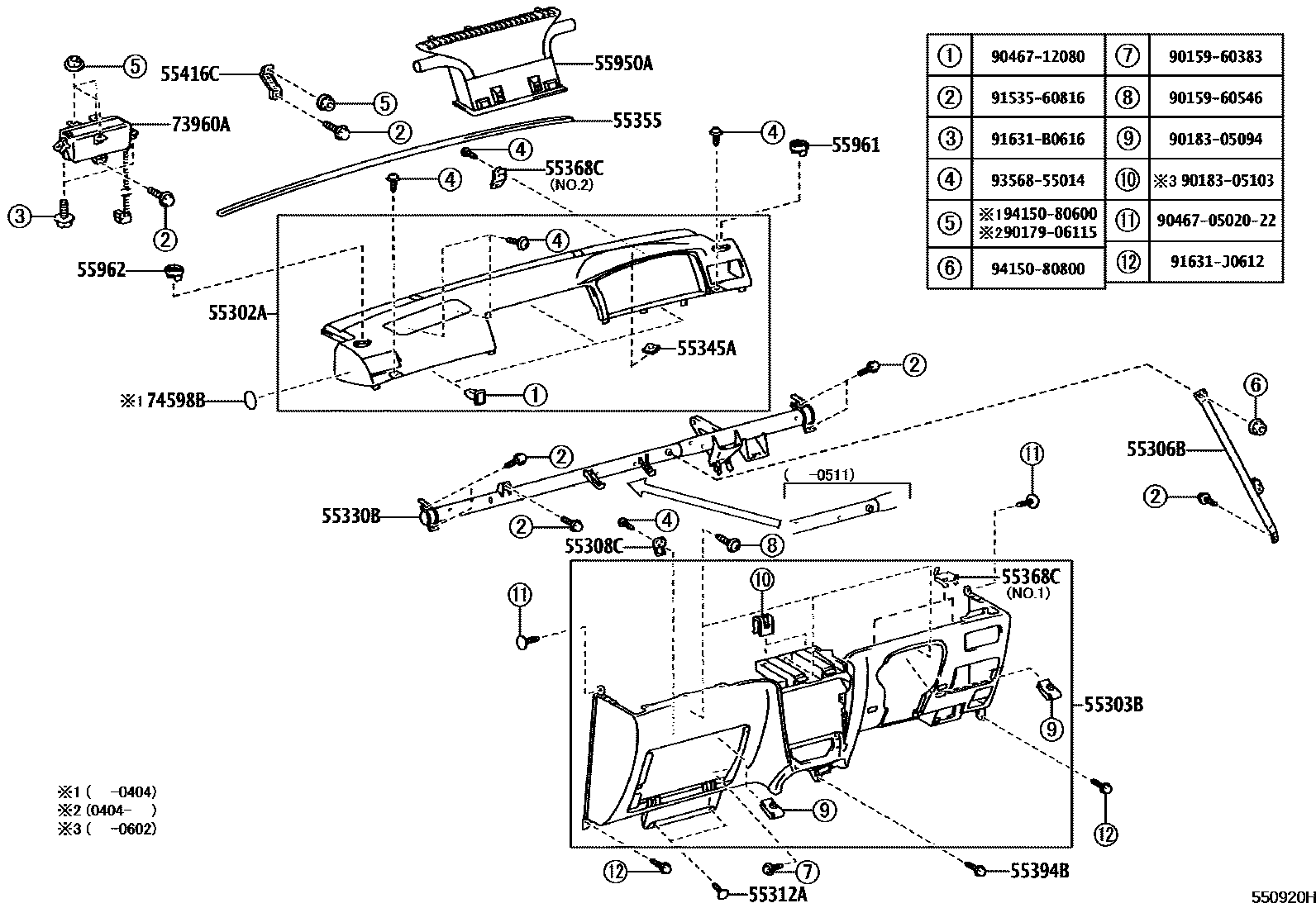

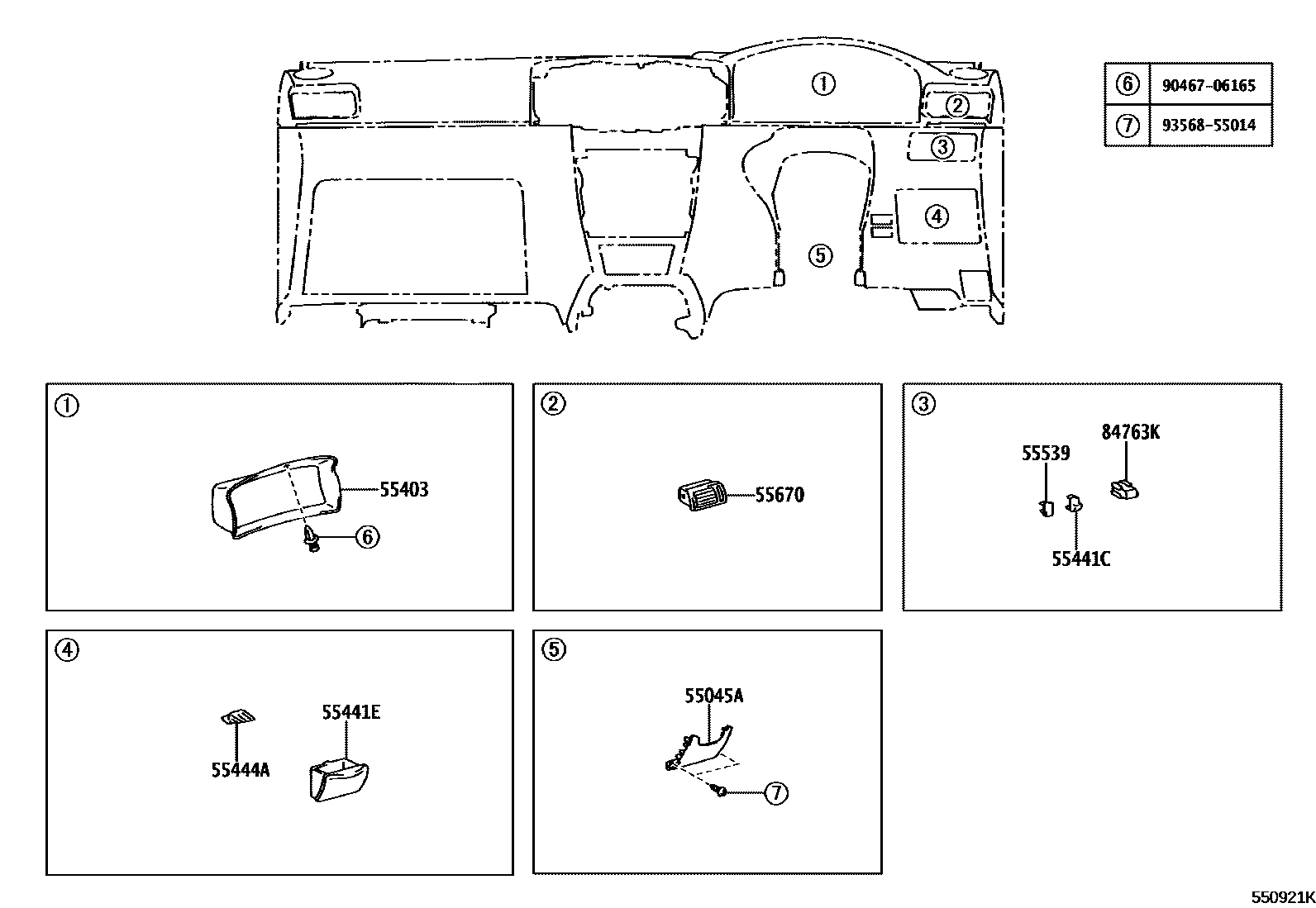

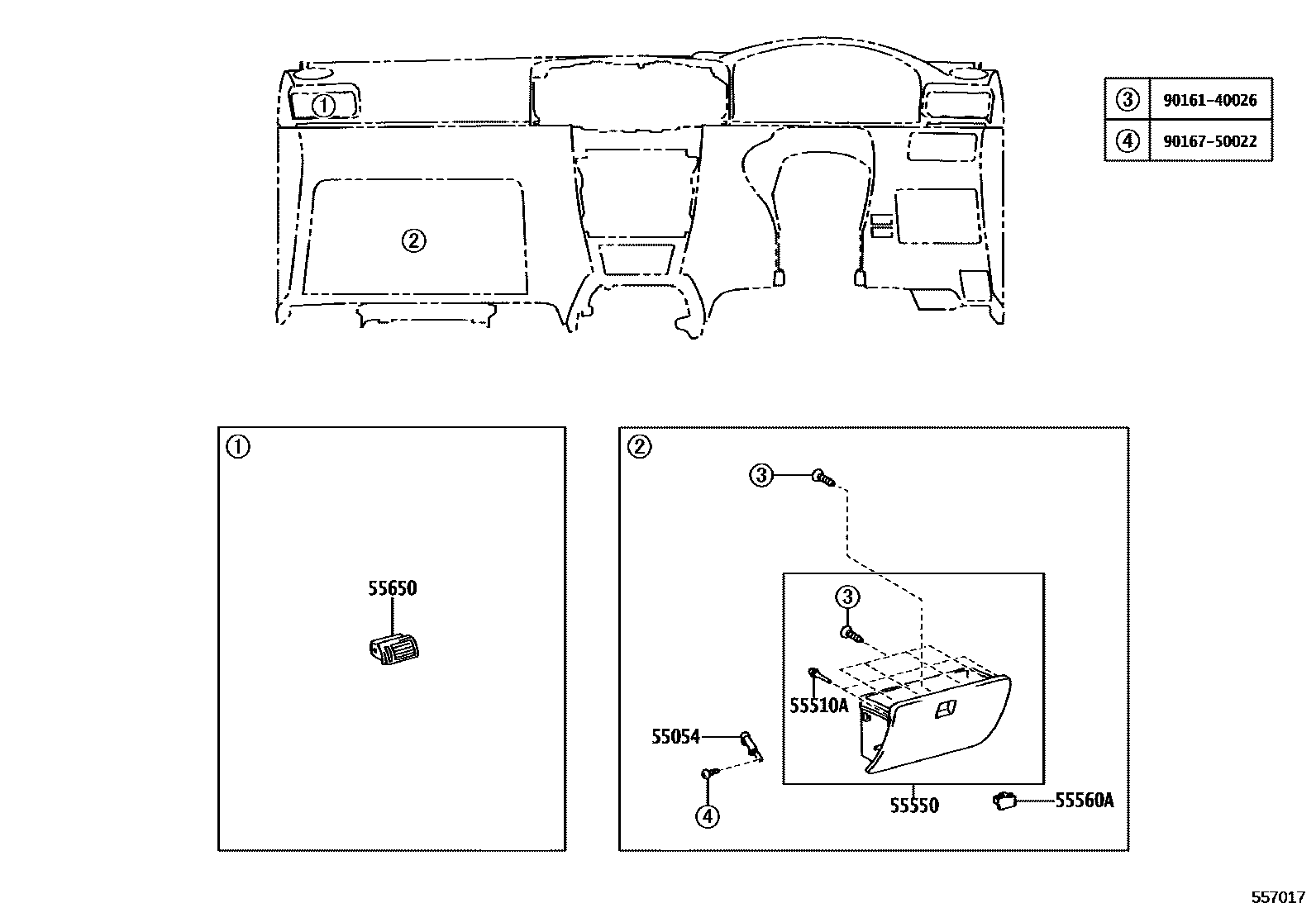

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-12270 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12280 |
| 55330B | Instrument panel reinforcement assembly | 55330-12390 · 55330-12490 · 55330-12740 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52012 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-12090 |
| 55394B | Dashboard bolts | 55394-12010 · 55394-12020 |
| 55403 | Instrument cover sub-assembly | 55403-12030 |
| 55416C | Instrument cluster decorative panel fixings | 55416-12030 |
| 55419A | Instrument cluster decorative panel cushion | 55419-32020 |
| 55444A | Dashboard storage box spring | 55444-12080 |
| 55445J | Dashboard storage box spring | 55445-12110 |
| 55510A | Cushion (for glovebox lid) | 90541-04002 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-12180 · 55522-52010 |
| 55538A | Cooler switch hole cover | 55538-12100 |
| 55950A | Defroster nozzle assembly | 55950-12240 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12030 |
| 74598B | Passenger air bag warning label | 74598-20010 · 74598-30040 |
| 84763K | switch board | 84763-12120 |
