Toyota COROLLA Floor stringers — Figure 5305

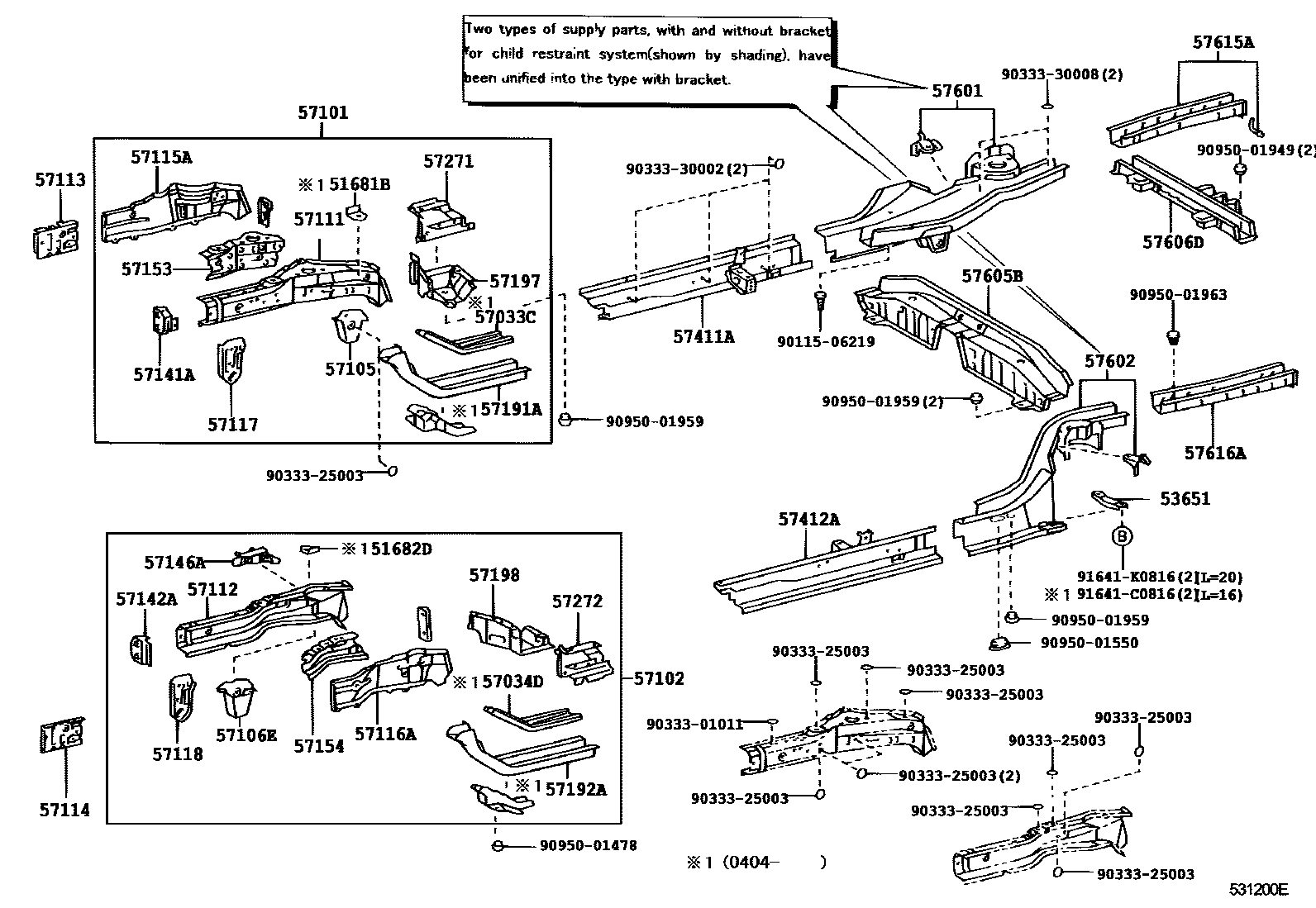

Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 36 PNC and OE references.

Toyota COROLLA Floor stringers EPC diagram — 531200E
Floor stringers — 531200E (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
51681BRight front wheel brake flexible hose support plate51681-32050
51682DLeft front wheel brake flexible hose support plate51682-32040
53651Rear floor longitudinal beam bracket53651-32010
57033CNo. 3 right front longitudinal beam reinforcement sub-assembly57033-13010
57034DNo. 3 left front longitudinal beam reinforcement sub-assembly57034-13010
57101Right front longitudinal beam sub-assembly57101-1A290 · 57101-1A330
57102Left front longitudinal beam sub-assembly57102-1A270 · 57102-1A310
57105Right front suspension cross member front mounting bracket sub-assembly57105-12140
57106ELeft front suspension cross member front mounting bracket sub-assembly57106-12130
57111Right front longitudinal beam57111-12240
57112Left front longitudinal beam57112-12170
57113Right front longitudinal beam extension57113-12190
57114Left front longitudinal beam extension57114-12160
57115ARight front longitudinal beam outer panel57115-12080
57116ALeft front longitudinal beam outer panel57116-12080
57117Right front longitudinal beam front plate sub-assembly57117-12130
57118Left front longitudinal beam front plate sub-assembly57118-12130
57141AFront bumper arm right bracket57141-12050 · 57141-12080
57142AFront bumper arm left bracket57142-12060 · 57142-12090
57146ALeft front longitudinal beam rear reinforcement57146-12020
57153No. 2 right front longitudinal beam reinforcement57016-12080
57154No. 2 left front longitudinal beam reinforcement57017-12060
57191ARight rear longitudinal member inside front floor57191-13010
57192ALeft rear longitudinal member inside front floor57192-13010
57197Right front torsion box section piece57197-12030
57198Left front anti-torsion box section piece57198-12030
57271Steering housing support beam right extension57271-12090
57272Steering casing support beam left extension57272-12090
57411AFloor right inner longitudinal beam57401-12570 · 57401-12630
57412AFloor left inner longitudinal beam57402-12590 · 57402-12680
57601Rear floor right longitudinal beam sub-assembly57601-13907 · 57601-13913
57602Rear floor left longitudinal beam sub-assembly57602-12964 · 57602-13911 · 57602-1A905
57605BRear floor No. 1 cross member sub-assembly57605-12180 · 57605-12210
57606DRear shock absorber mounting beam sub-assembly57606-13130 · 57606-13131 · 57606-13191
57615ARear floor right rear longitudinal member57615-02907 · 57615-13912
57616ARear floor left rear longitudinal member57616-02906 · 57616-13909
