Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 3 PNC and OE references.

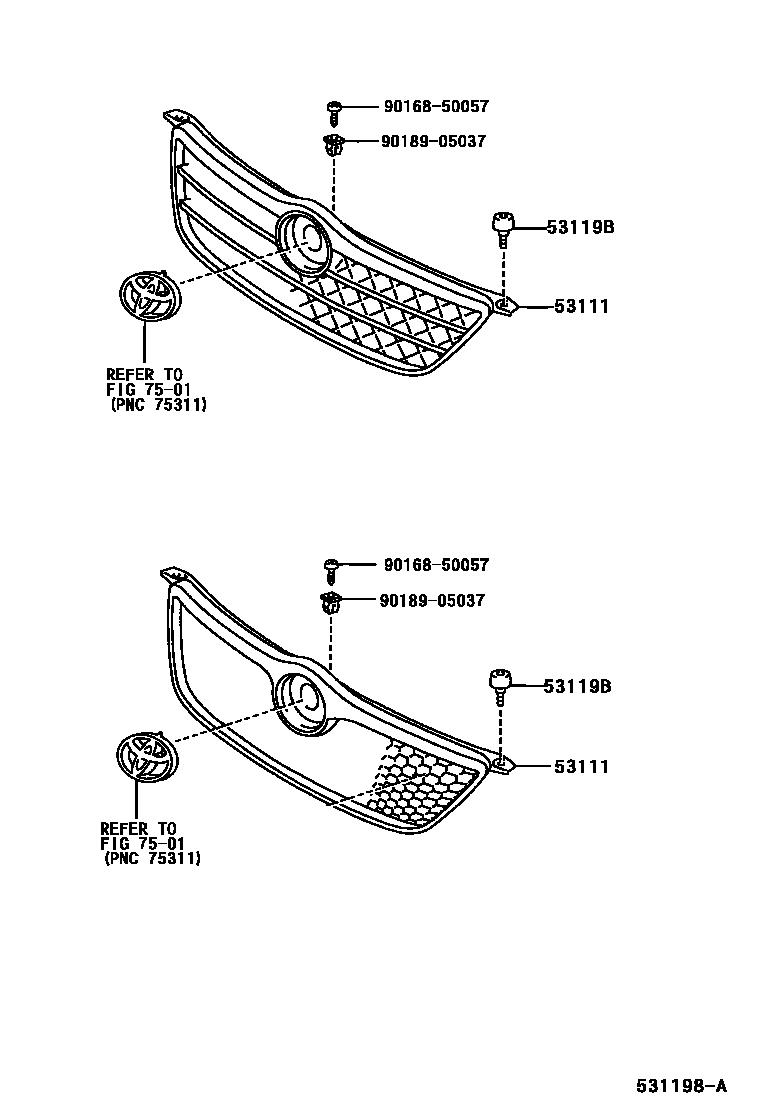

Toyota COROLLA radiator grille EPC diagram — 531198A
radiator grille — 531198A (200110 – 200404)

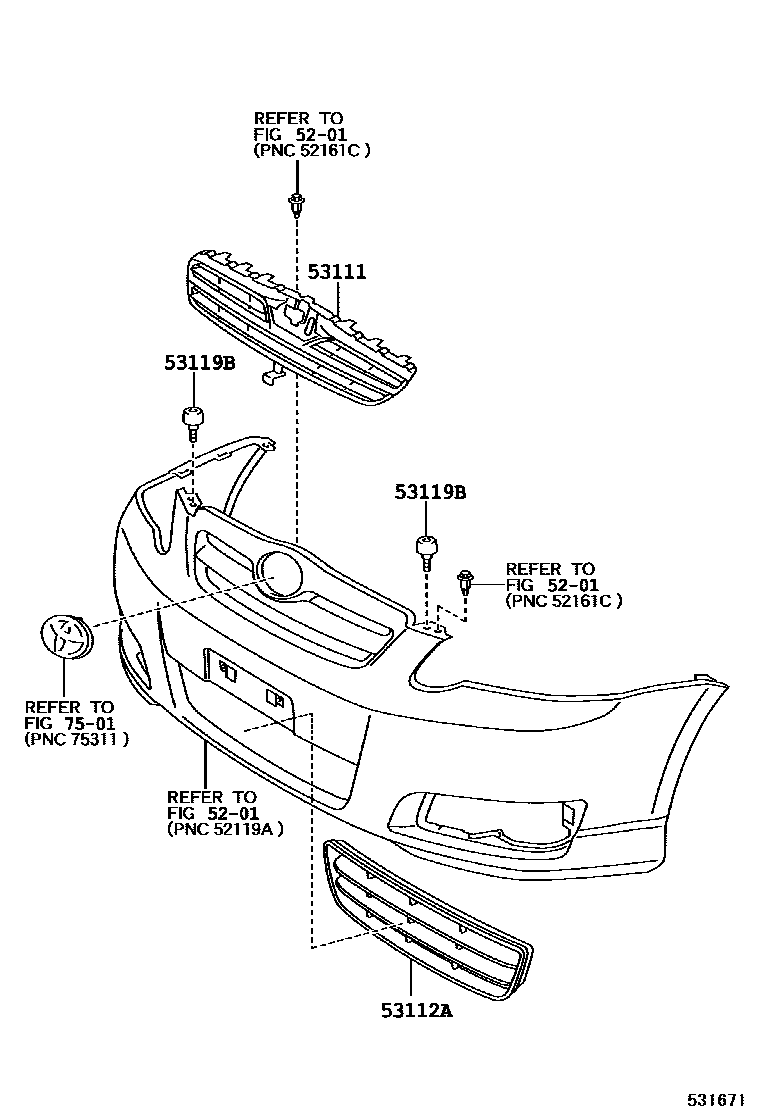

Toyota COROLLA radiator grille EPC diagram — 531671
radiator grille — 531671 (200404 – 200702)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-13200 · 53111-13290 · 53111-1A902 · 53111-1A903
53112ALower radiator grille53112-13010
53119BRadiator grille protector53119-12150 · 53119-13020
