Toyota COROLLA 后保险杠及附件 — Figure 5202

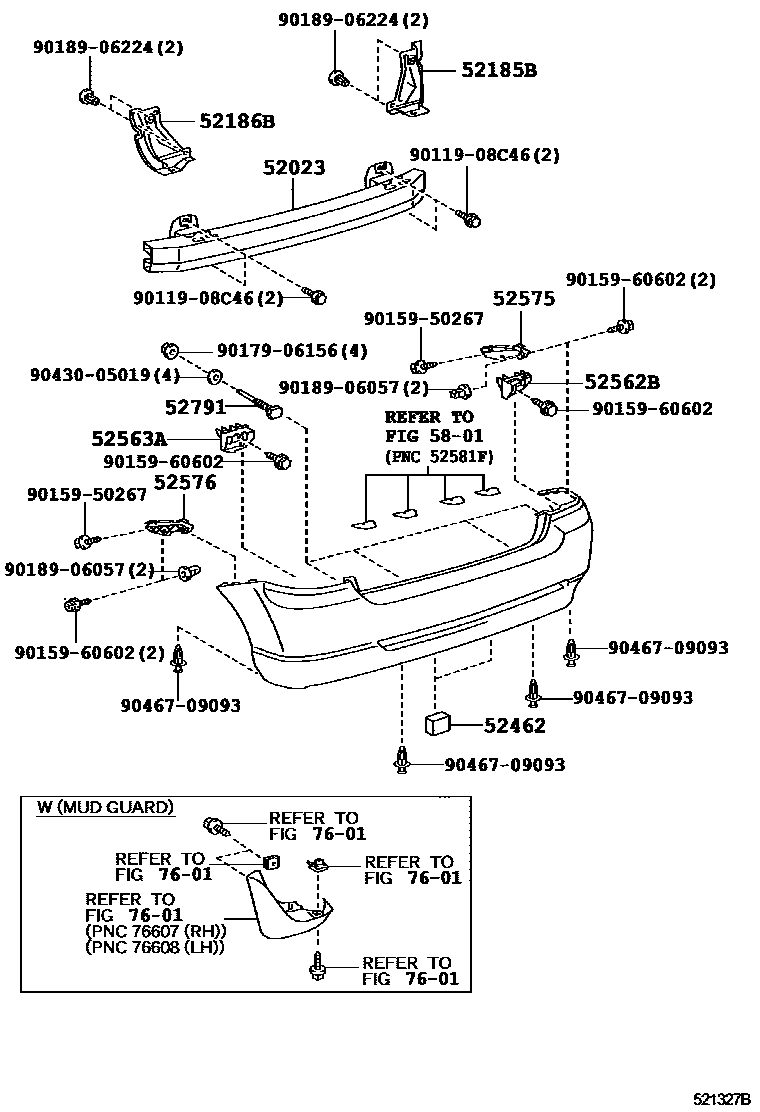

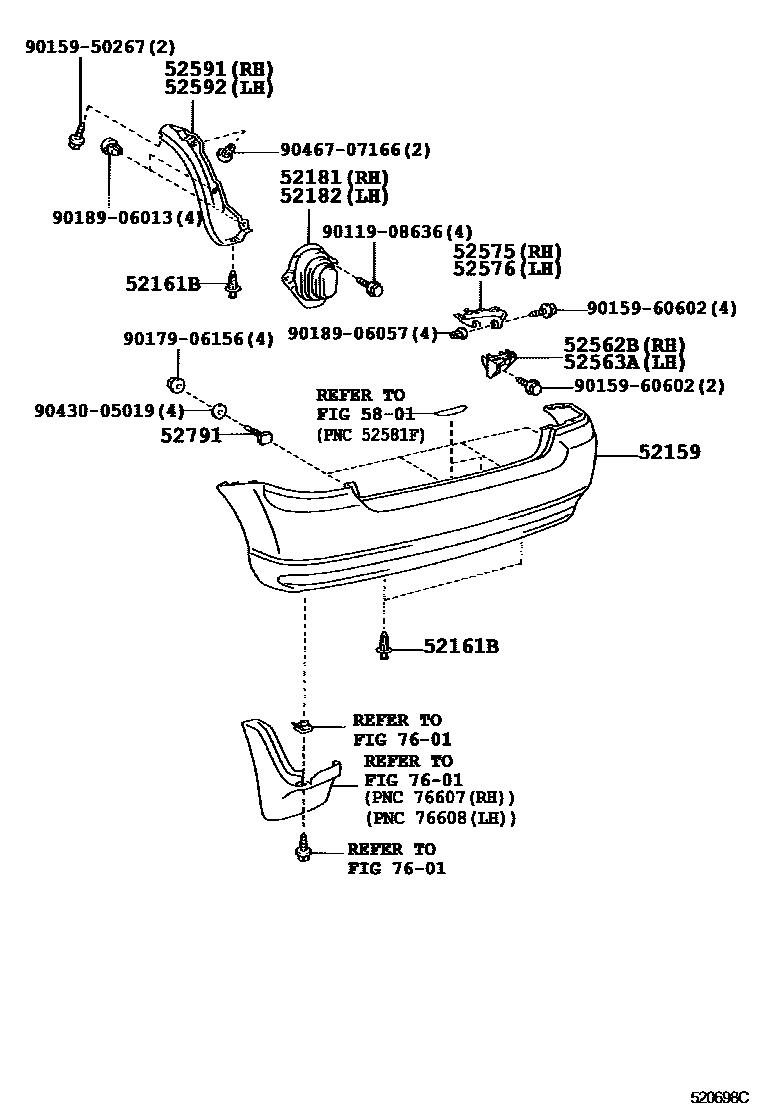

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12210 |
| 52159 | rear bumper cover | 52159-13906 · 52159-13913 |
| 52161B | Rear bumper insert | 52161-16010 · 90467-09093 |
| 52181 | Rear bumper right arm | 52181-13120 |
| 52182 | Rear bumper left arm | 52181-13120 |
| 52185B | Installation support on the right side of the rear bumper | 52185-13080 |
| 52186B | Rear bumper left side mounting support | 52186-13040 |
| 52462 | Rear bumper right side lining | 52462-13020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-13030 |
| 52563A | Rear bumper upper left fixing bracket | 52563-13020 |
| 52575 | Rear bumper right side fixing bracket | 52575-13030 · 52575-13050 |
| 52576 | Rear bumper left side fixing bracket | 52576-13030 · 52576-13050 |
| 52591 | Rear bumper right seal | 52591-13040 |
| 52592 | Rear bumper left seal | 52592-13040 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
