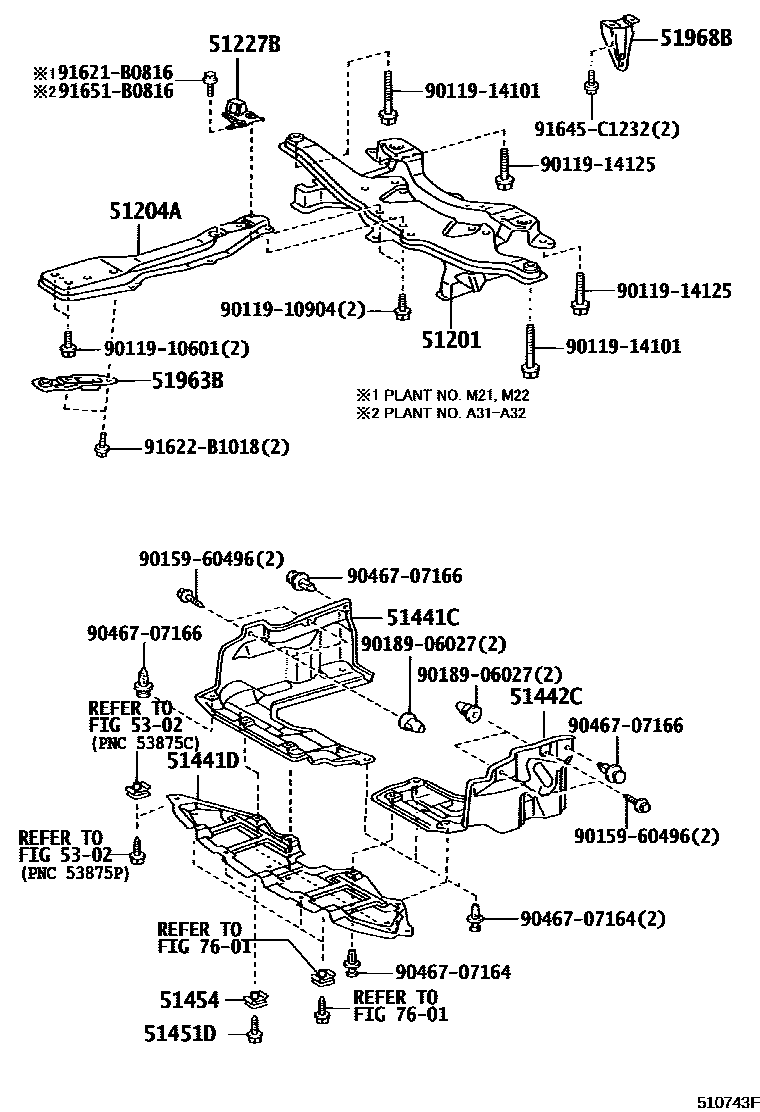

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12430 · 51201-12431 · 51201-20350 |
| 51204A | Engine center mount beam sub-assembly | 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-12070 · 51227-12080 · 51227-12081 |
| 51441C | Engine right bottom cover | 51441-12190 |
| 51441D | engine cover | 51451-12020 · 51451-13030 |
| 51442C | Engine left bottom cover | 51442-12180 · 51442-12190 |
| 51451D | Screw No. 1 | 90159-60488 |
| 51454 | clip | 90467-05138 |
| 51963B | Right front transport hook | 51960-13010 · 51963-12240 |
| 51968B | Left rear transport hook | 51968-13040 |
