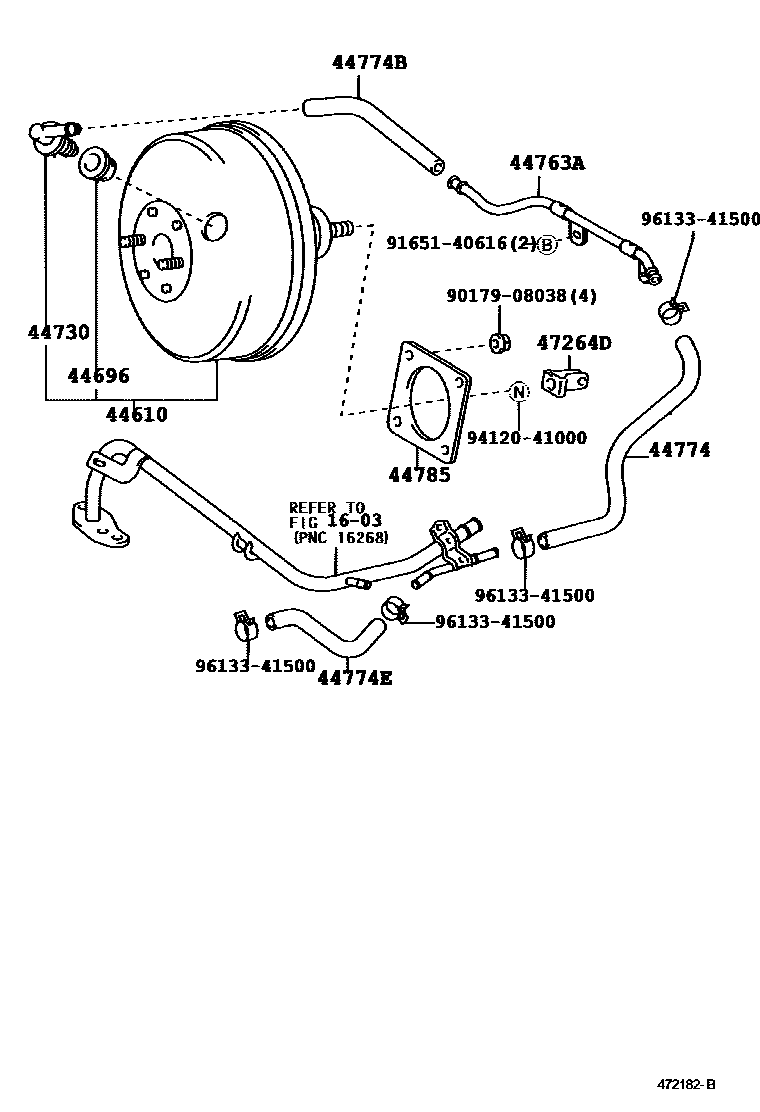

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-1E470 · 44610-1E490 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-14050 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12340 |
| 44774 | Hoses (joints to connector tubes) | 44774-12420 |
| 44774B | Hoses (joints to connector tubes) | 95446-09180 |
| 44774E | Hoses (joints to connector tubes) | 44774-20310 |
| 44785 | brake booster pad | 44785-20020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-63010 |
