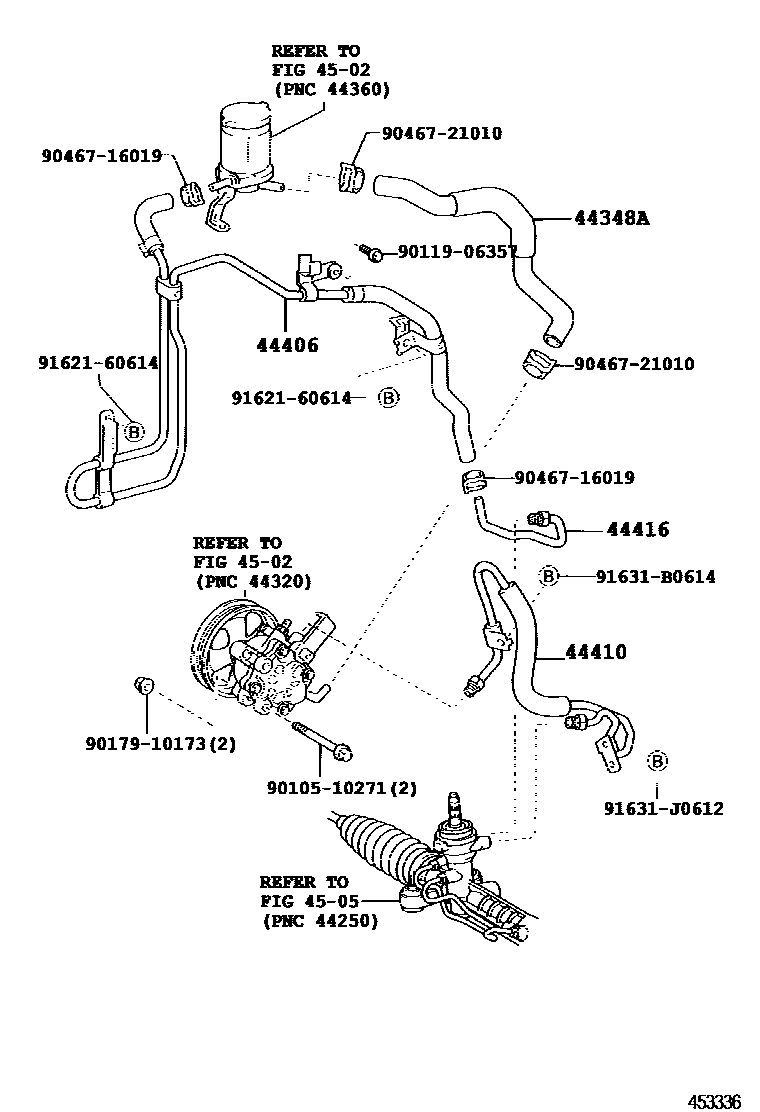

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44348A | No. 1 hose (tank to pump) | 44348-12091 |
| 44406 | Oil return pipe sub-assembly | 44406-12231 |
| 44410 | Pressure supply pipe assembly | 44410-12600 · 44410-12720 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-12270 · 44416-13011 |
