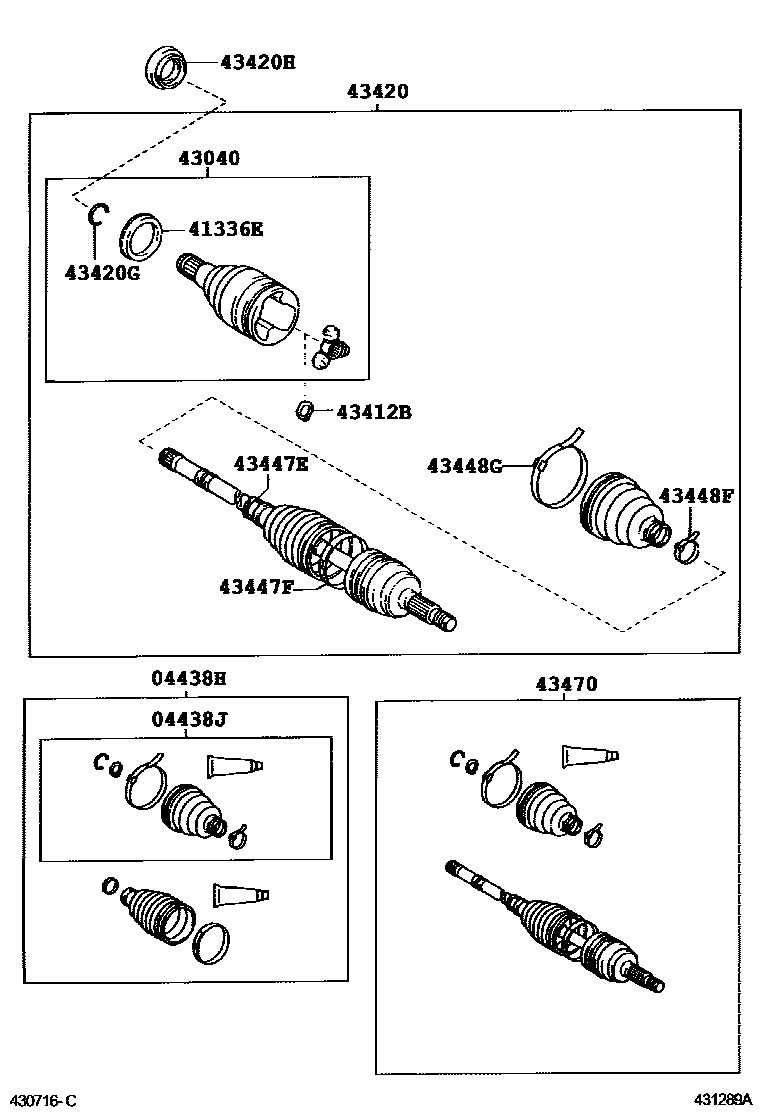

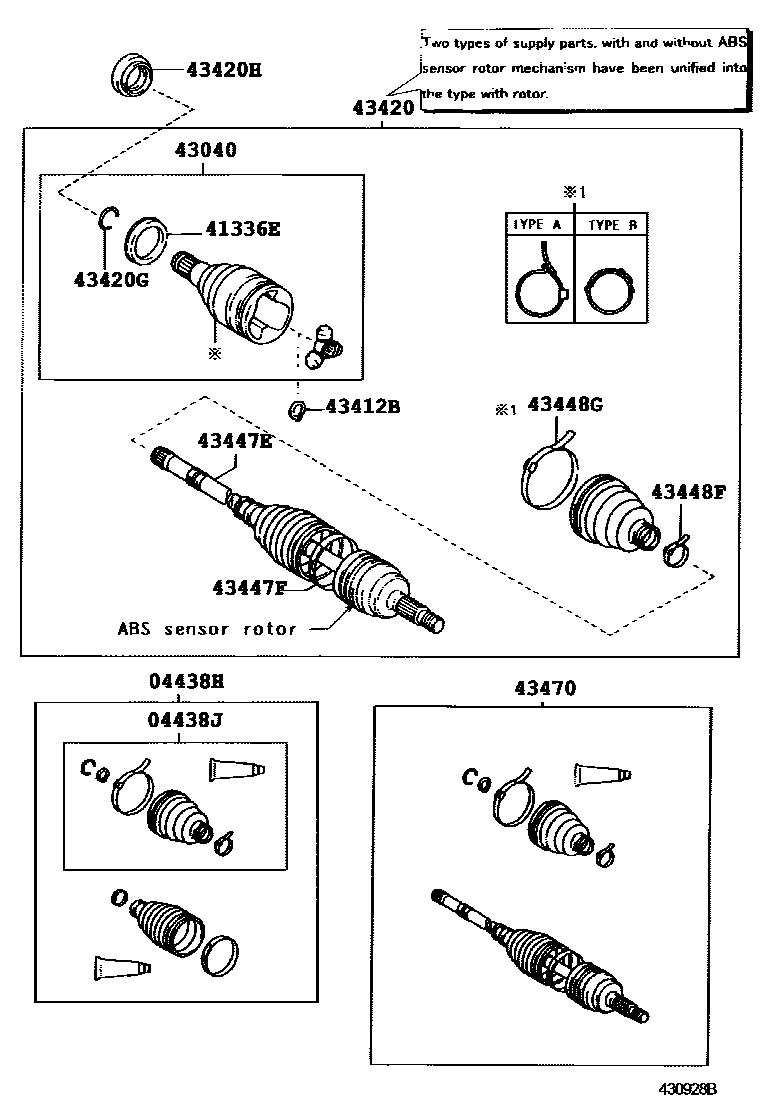

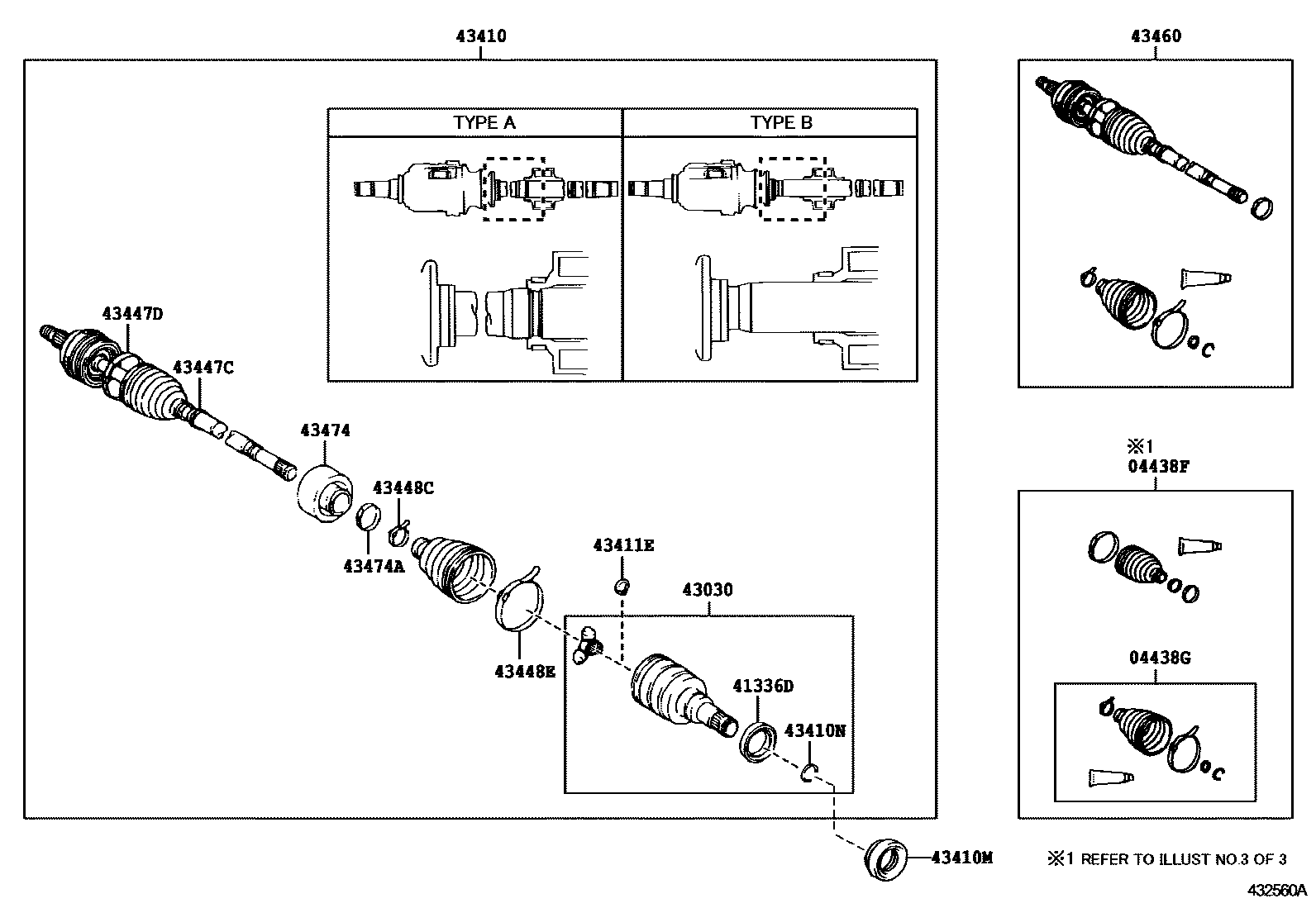

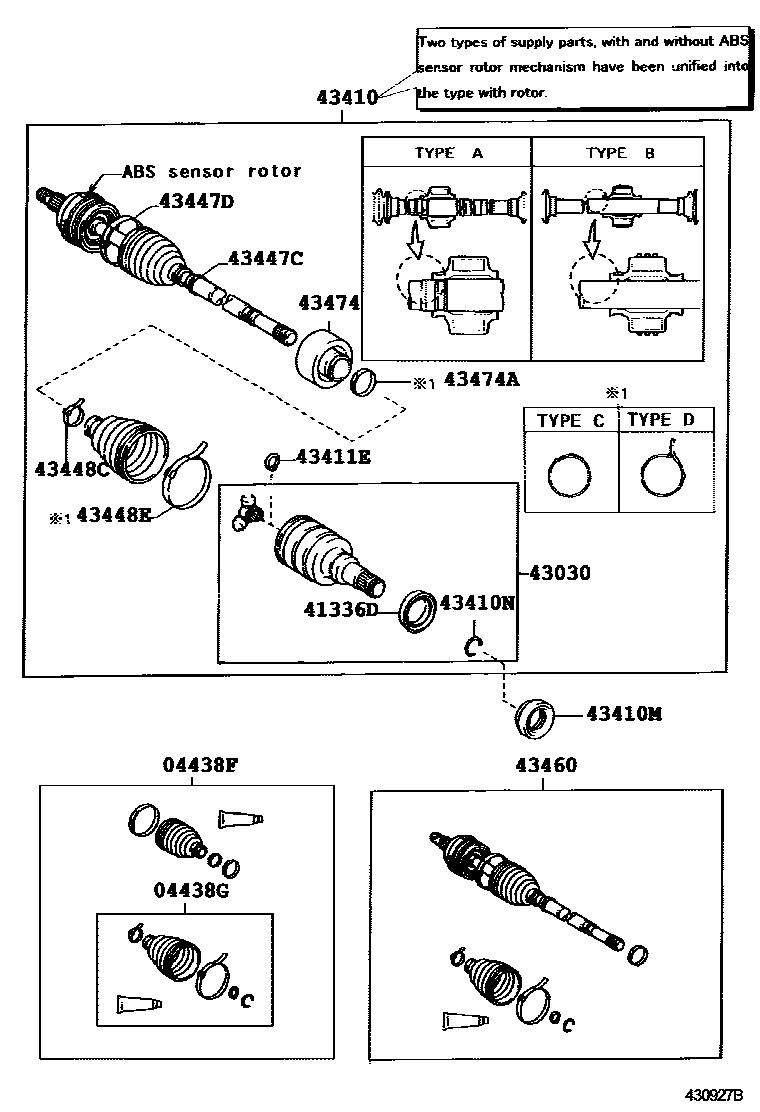

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12481 · 04438-12600 · 04438-12610 · 04438-12620 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-32231 · 04438-32240 · 04438-42200 · 04438-52230 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52260 · 04428-12260 · 04428-42100 · 04438-12481 · 04438-12600 · 04438-12610 · 04438-12620 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52190 · 04438-32231 · 04438-32240 · 04438-42200 · 04438-52230 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12060 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-02020 · 43040-32040 · 43403-02040 · 43403-12040 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02020 · 43040-32040 · 43403-02040 · 43403-12040 |
| 43410 | Right front driveshaft assembly | 43410-02180 · 43410-02220 · 43410-02500 · 43410-12660 · 43410-12670 · 43410-12690 |
| 43410M | Front drive shaft right oil seal | 90311-34023 · 90311-35051 · 90311-35055 · 90311-35057 |
| 43410N | Hole snap ring (for right front driveshaft) | 90521-26004 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-02200 · 43420-02240 · 43420-02530 · 43420-12570 · 43420-12580 · 43420-12590 · 43420-12620 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 |
| 43420H | Front drive shaft left oil seal | 90311-34026 · 90311-35044 · 90311-35054 · 90311-35058 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12150 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12140 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12150 · 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12140 · 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09440 · 43460-09470 · 43460-09A26 · 43460-19875 · 43460-19895 · 43460-80001 · 43460-80004 · 43460-80043 · 43460-80050 · 43460-80051 · 43460-80052 · 43460-80065 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09670 · 43470-09700 · 43470-09Q90 · 43470-80014 · 43470-80015 · 43470-80017 · 43470-80018 · 43470-80095 · 43470-80097 · 43470-80124 · 43470-80165 |
| 43474 | drive shaft damper | 43474-12040 · 43474-12120 · 43474-12130 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 |
