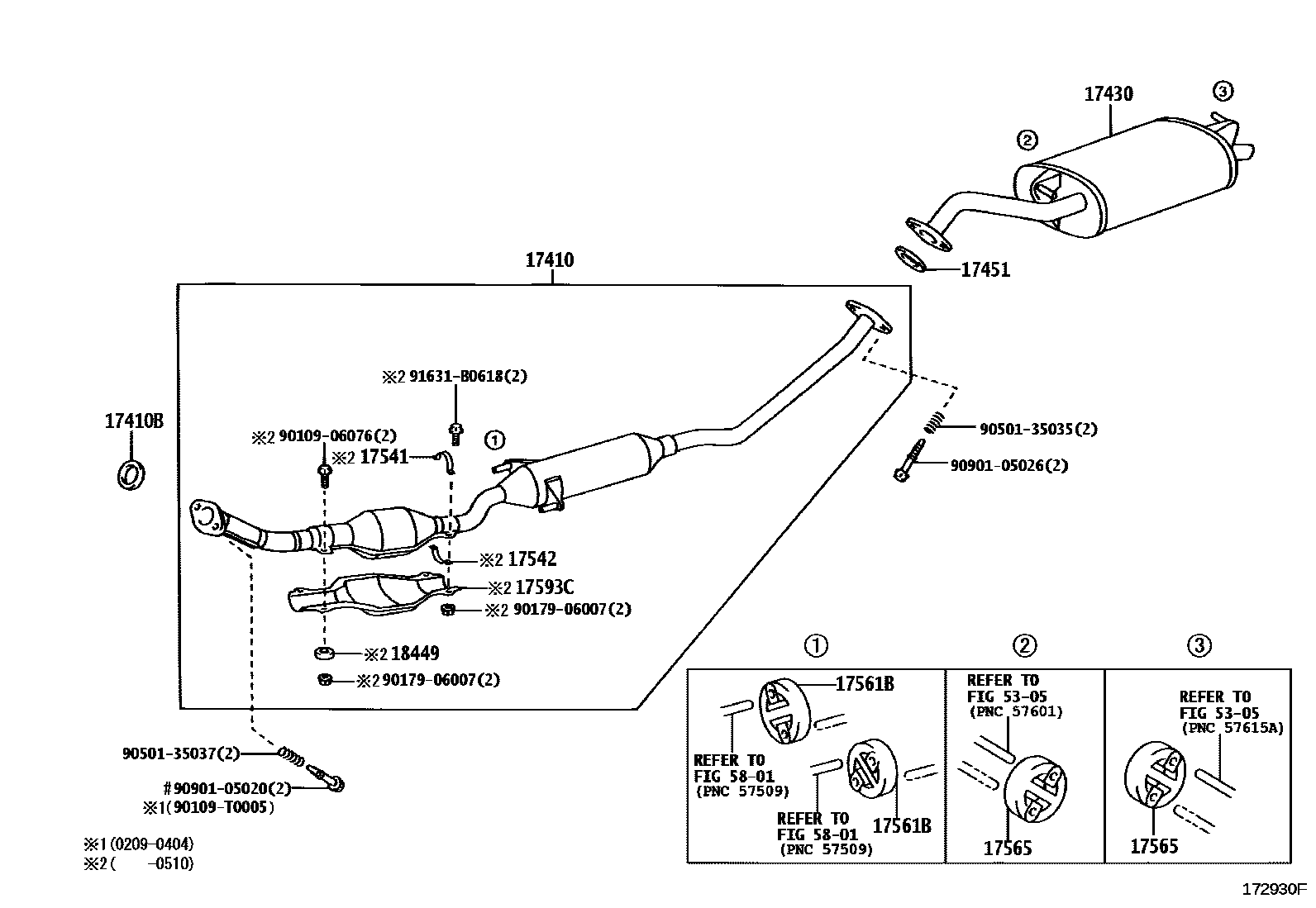

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-22340 · 17410-22620 |
| 17410B | Exhaust pipe gasket | 17451-22070 |
| 17430 | Exhaust tailpipe assembly | 17430-22260 · 17430-22411 |
| 17451 | Exhaust pipe gasket | 17451-16030 |
| 17541 | No. 1 exhaust pipe protection device stay | 17541-42010 |
| 17542 | No. 2 exhaust pipe protection device stay | 17542-42010 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-21030 · 17565-22030 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-21040 |
| 17593C | No. 1 lower exhaust pipe protection device | 17593-22020 |
| 18449 | Three-way catalytic converter protection device gasket | 18449-74010 |
