Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 13 PNC and OE references.

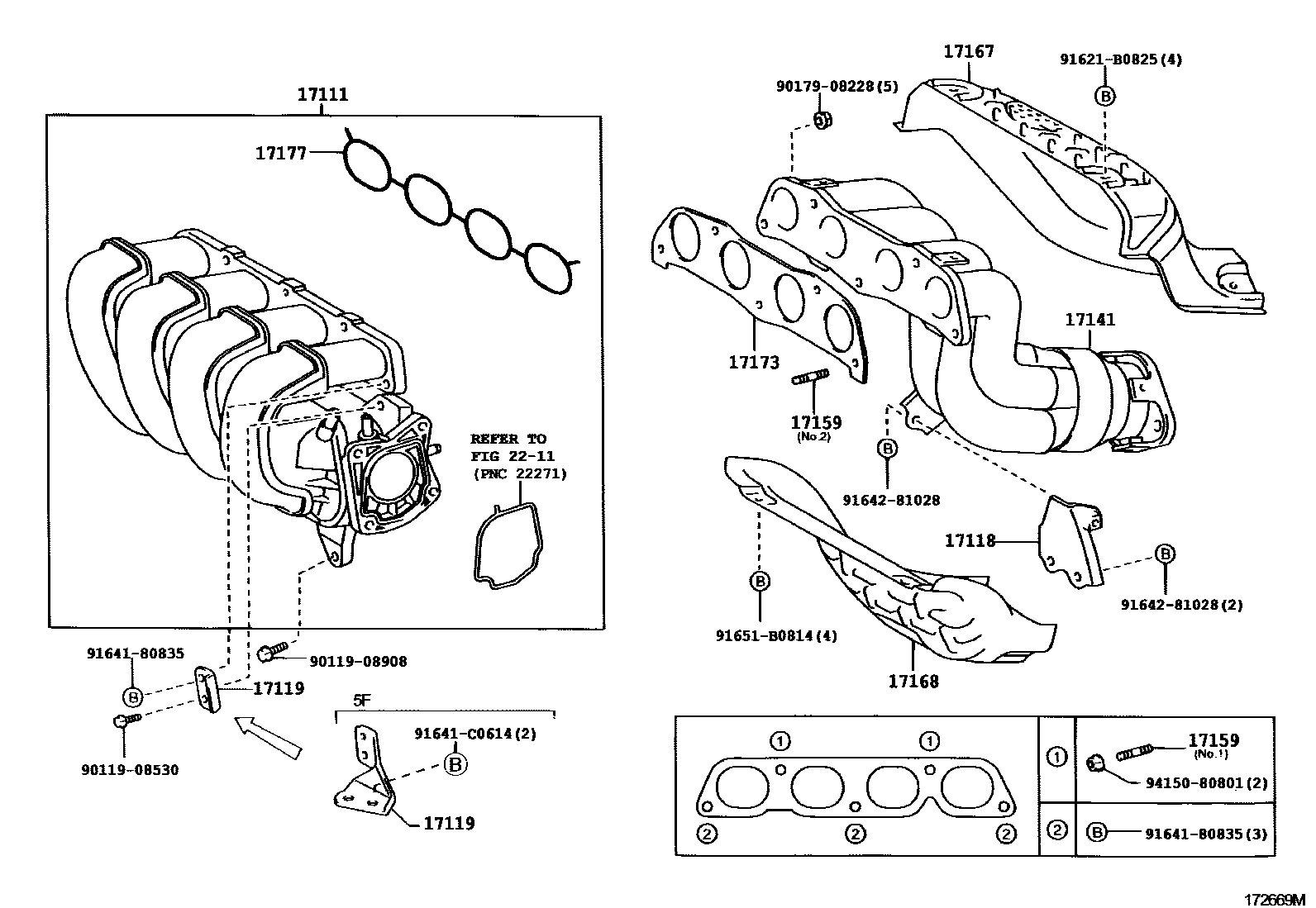

Toyota COROLLA Manifold EPC diagram — 172669M
Manifold — 172669M (200110 – 200510)

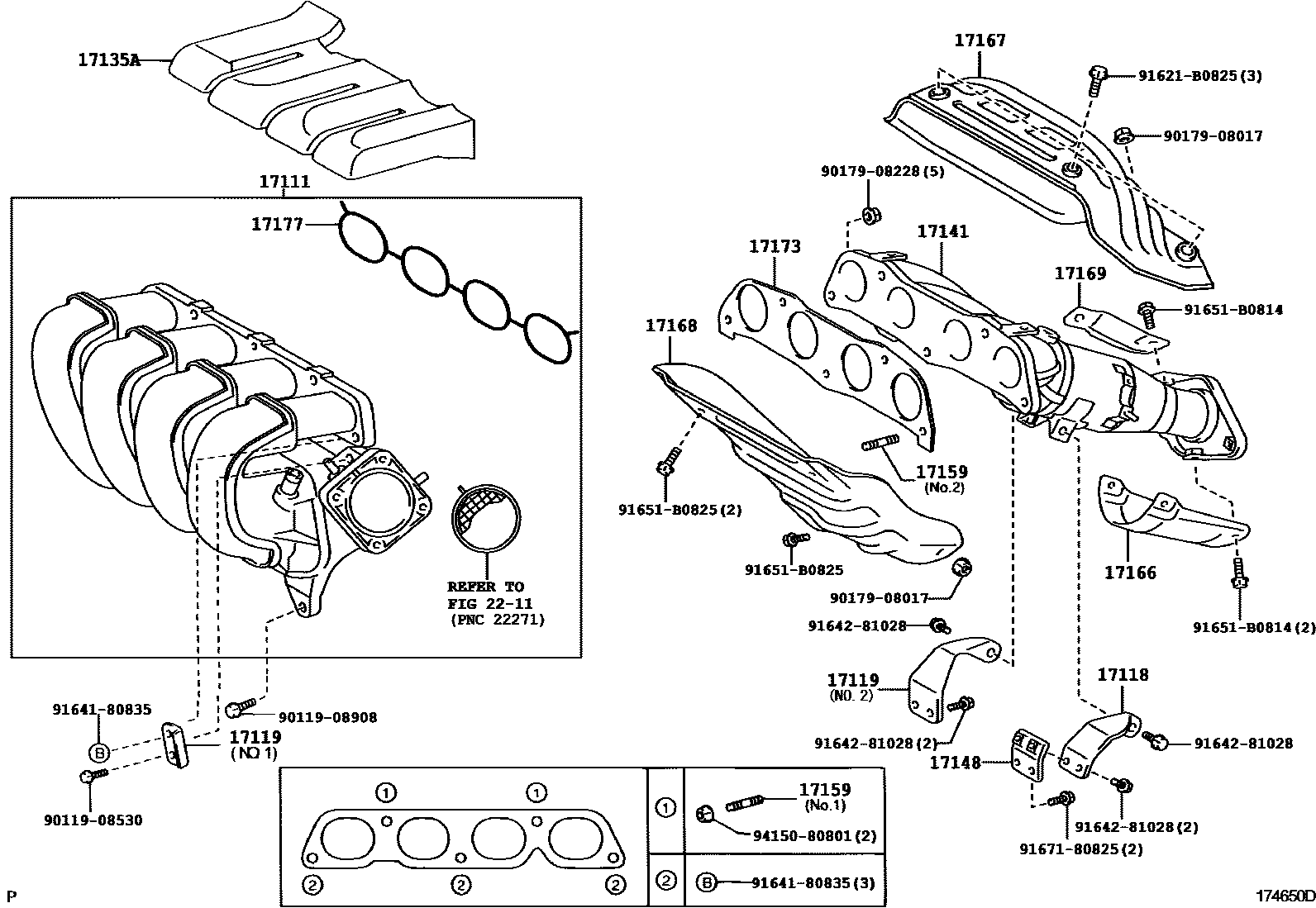

Toyota COROLLA Manifold EPC diagram — 174650D
Manifold — 174650D (200510 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17120-22030 · 17120-22070
17118Manifold stays17118-22020 · 17118-22090
17119No. 2 manifold stay17119-22070 · 17139-22030 · 17139-22040
17135AIntake manifold No. 1 heat shield17135-22010
17141exhaust manifold17104-22050 · 17104-22120
17148Exhaust manifold plate (for EGR intake)17148-22030
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08037 · 90126-08043
17166Exhaust manifold No. 4 heat shield17166-22011
17167Exhaust manifold No. 1 heat shield17167-22040 · 17167-22041 · 17167-22121
17168Exhaust manifold No.2 insulation pad17168-22040 · 17168-22120
17169Exhaust manifold No. 3 heat shield17169-22030
17173Gasket (exhaust manifold to cylinder head)17173-22010
17177No. 1 gasket (intake manifold to cylinder head)17171-22030
