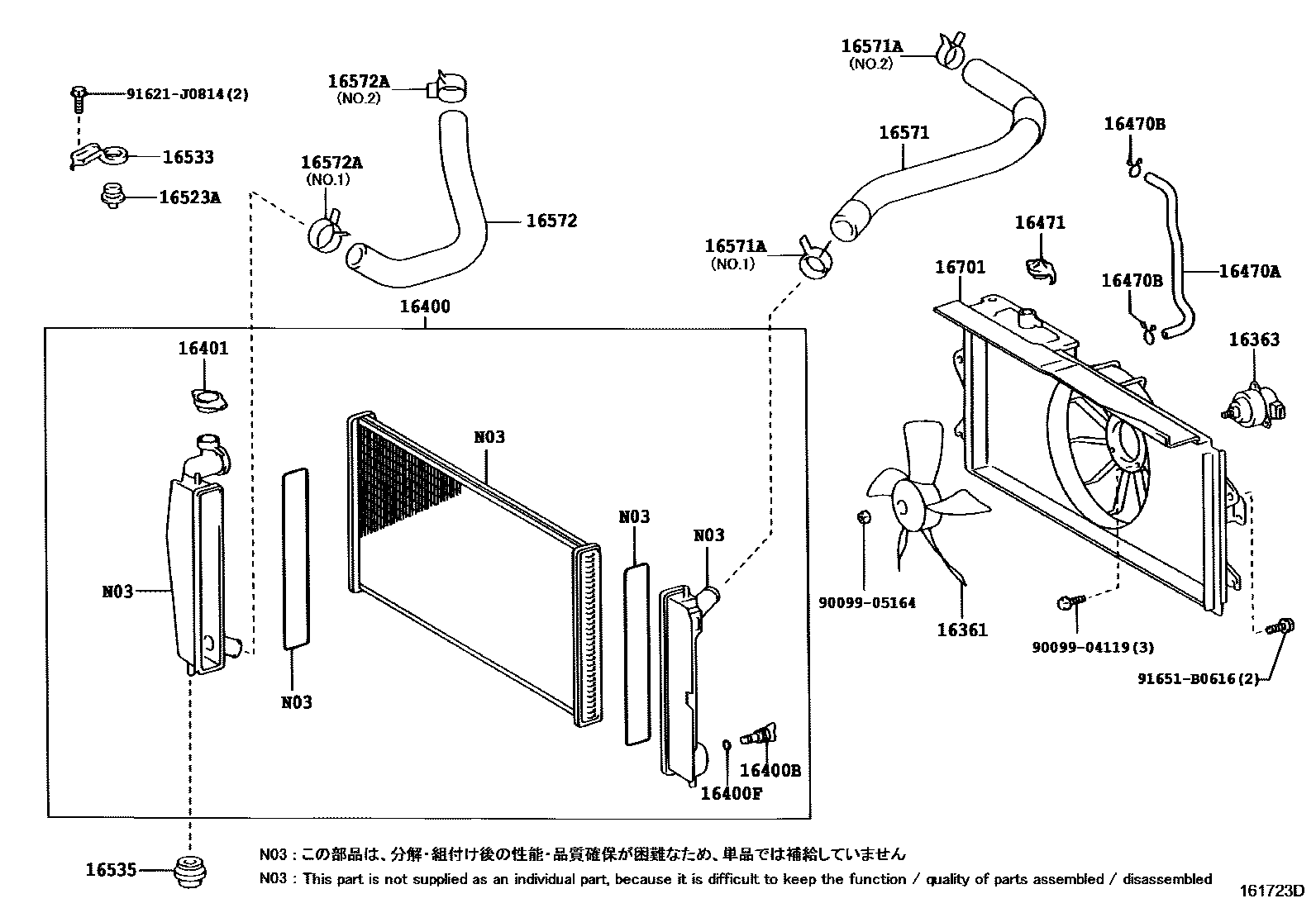

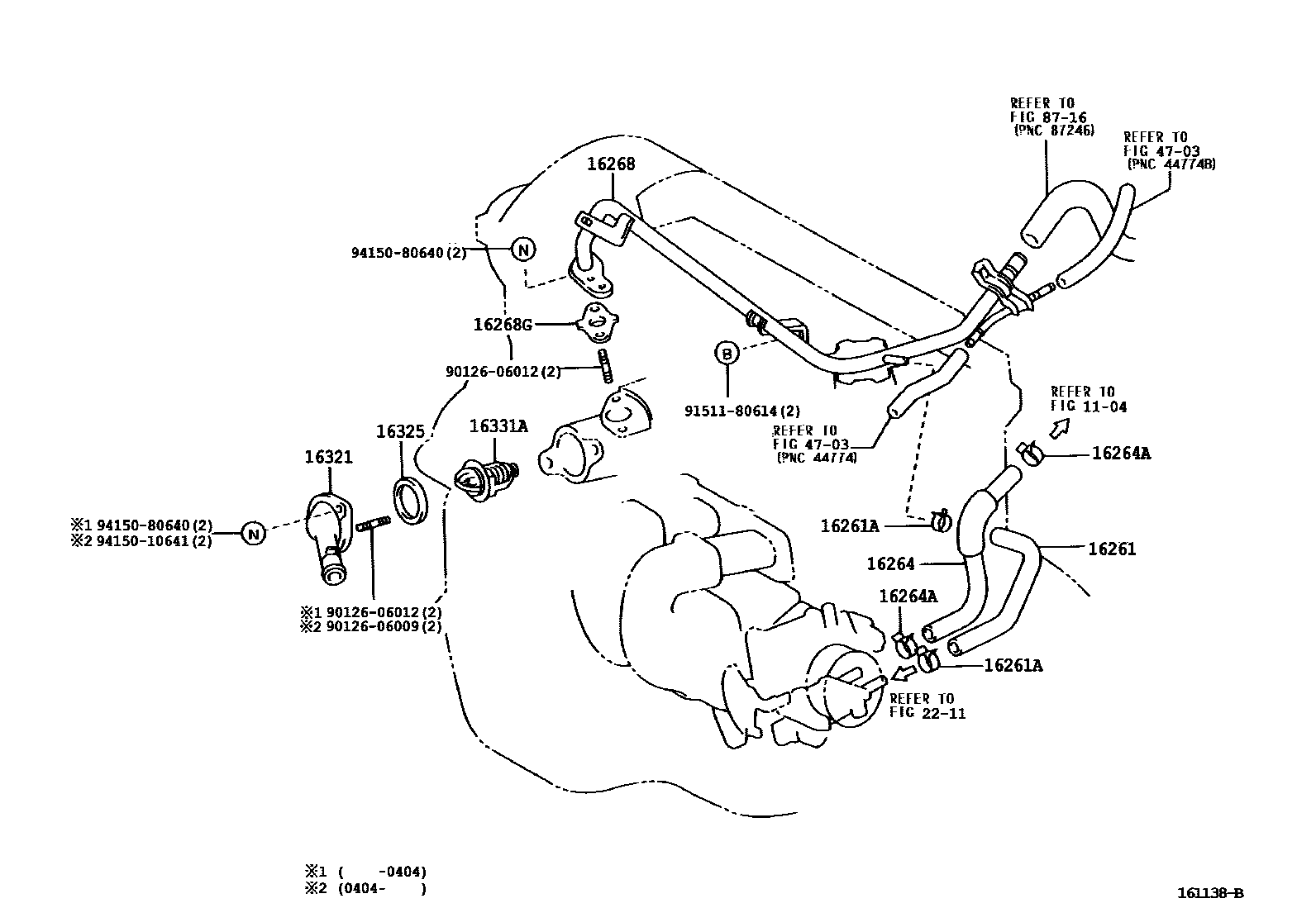

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-0D030 · 16261-22080 · 16261-22142 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D020 · 16264-22090 · 16264-22123 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-51300 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-22100 · 16268-22160 |
| 16268G | Gasket (for water bypass pipe) | 16258-22010 |
| 16321 | water inlet | 16321-22070 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-62010 |
| 16331A | thermostat | 90916-03129 |
| 16361 | Fan | 16361-21060 |
| 16363 | cooling fan motor | 16363-23020 · 16363-28150 |
| 16400 | Radiator assembly | 16400-21140 · 16400-21180 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-21030 · 16471-23010 |
| 16523A | Radiator bracket cushion | 16523-21020 |
| 16533 | Radiator upper bracket | 16533-21020 |
| 16535 | Radiator lower support | 16535-21050 · 90480-40016 |
| 16571 | Radiator water inlet hose | 16571-22070 · 16571-22160 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34004 · 90467-37005 · 96136-44301 |
| 16572 | Radiator outlet hose | 16572-22070 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90466-37002 · 96136-43901 · 96136-44301 |
| 16701 | Fan cover sub-assembly | 16711-21080 |
