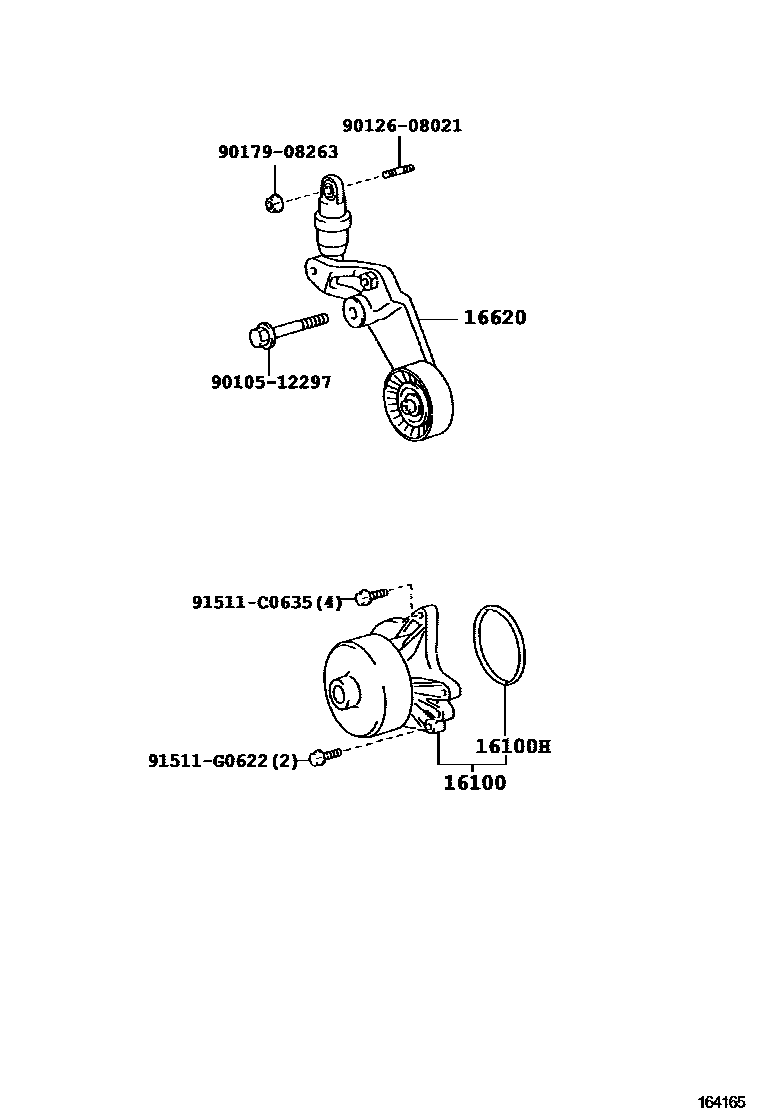

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-29175 · 16100-29415 |
| 16100H | O-ring (for water pump) | 90301-69006 |
| 16620 | Poly V-belt tensioner assembly | 16620-22011 · 16620-22012 · 16620-22013 |
