Toyota COROLLA Cylinder Head — Figure 1104

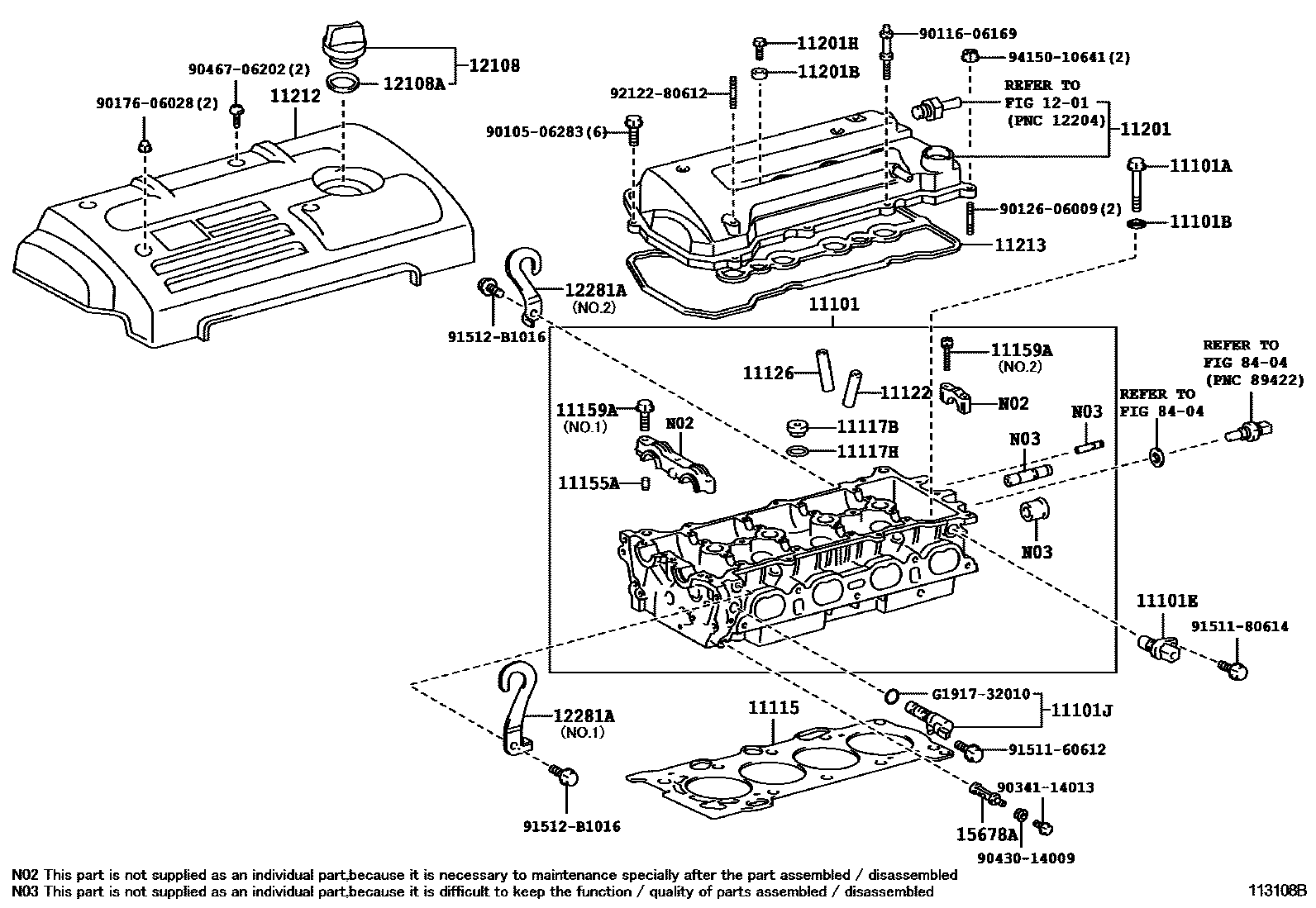

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 1 images and 21 PNC and OE references.

Toyota COROLLA Cylinder Head EPC diagram — 113108B
Cylinder Head — 113108B (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-22051 · 11101-22052 · 11101-22071
11101ABOLT (FOR CYLINDER HEAD)90910-02152
11101BFlat Washer (for cylinder head assembly)90201-10344
11101ECam position sensor90919-05026
11101JCamshaft timing oil control valve assembly15330-22030
11115GASKET, CYLINDER HEAD11115-22040 · 11115-22041 · 11115-22050
11117BNo. 2 headed tapered thread plug90341-20002
11117HGasket (for coolant hole)90430-20004
11122BUSH, INTAKE VALVE GUIDE11122-20020 · 11123-20020
11126BUSH, EXHAUST VALVE GUIDE11122-20020 · 11123-20020
11155APIN, RING W/HEAD90250-06001
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90109-06080 · 90119-08A29
11201CYLINDER HEAD COVER SUB-ASSY11201-22060
11201BGasket (for cylinder head cover)90210-06013
11201HBolts (for cylinder head cover)90105-06202
11212No. 2 cylinder head cover11212-22070 · 11212-22130 · 11212-22150
11213GASKET, CYLINDER HEAD COVER11213-22050
12108OIL FILLER CAP SUB-ASSY12180-21010 · 12180-55010
12108AGASKET (FOR OIL FILLER CAP)90430-37140
12281AEngine No. 1 hanger12281-15040 · 12281-15050 · 12281-22021
15678AOil control valve filter15678-21010
