Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

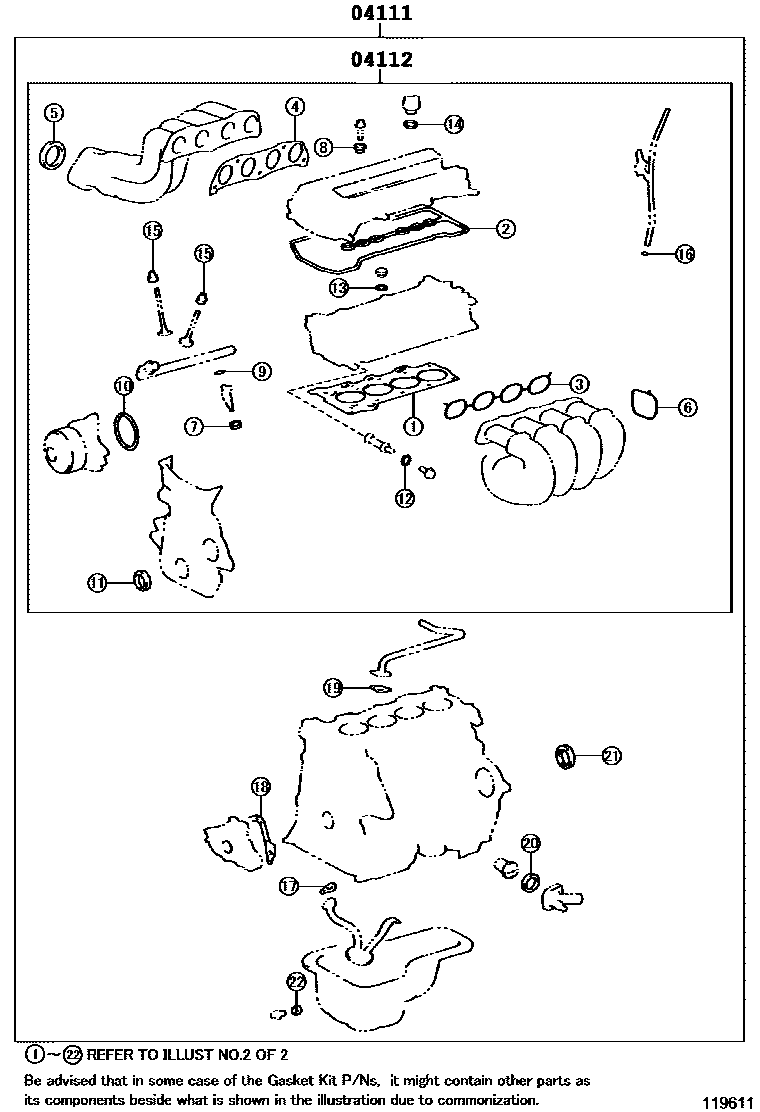

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119611
Engine Overhaul Gasket Kit — 119611 (200110 – 200404)

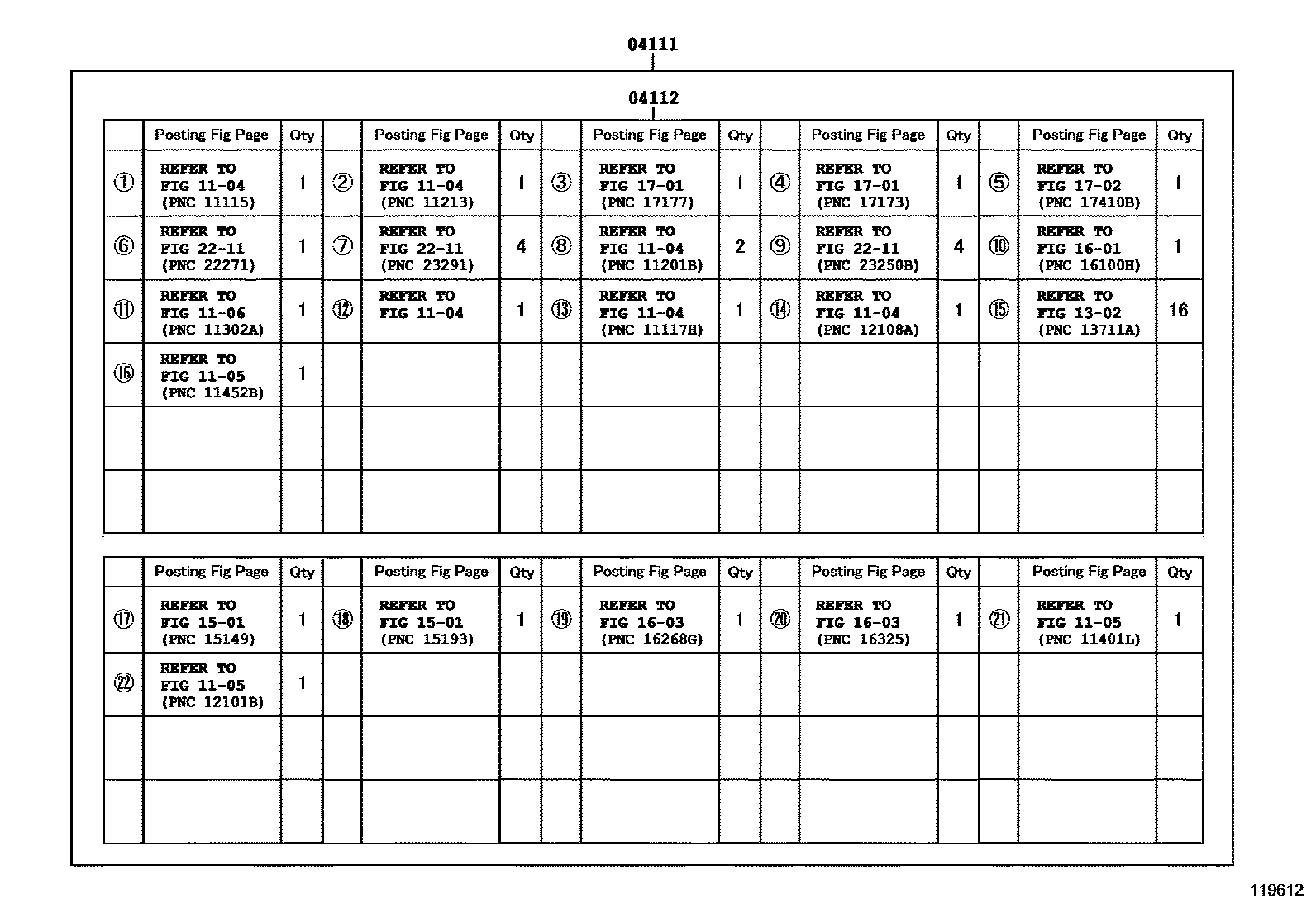

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119612
Engine Overhaul Gasket Kit — 119612 (200110 – 200404)

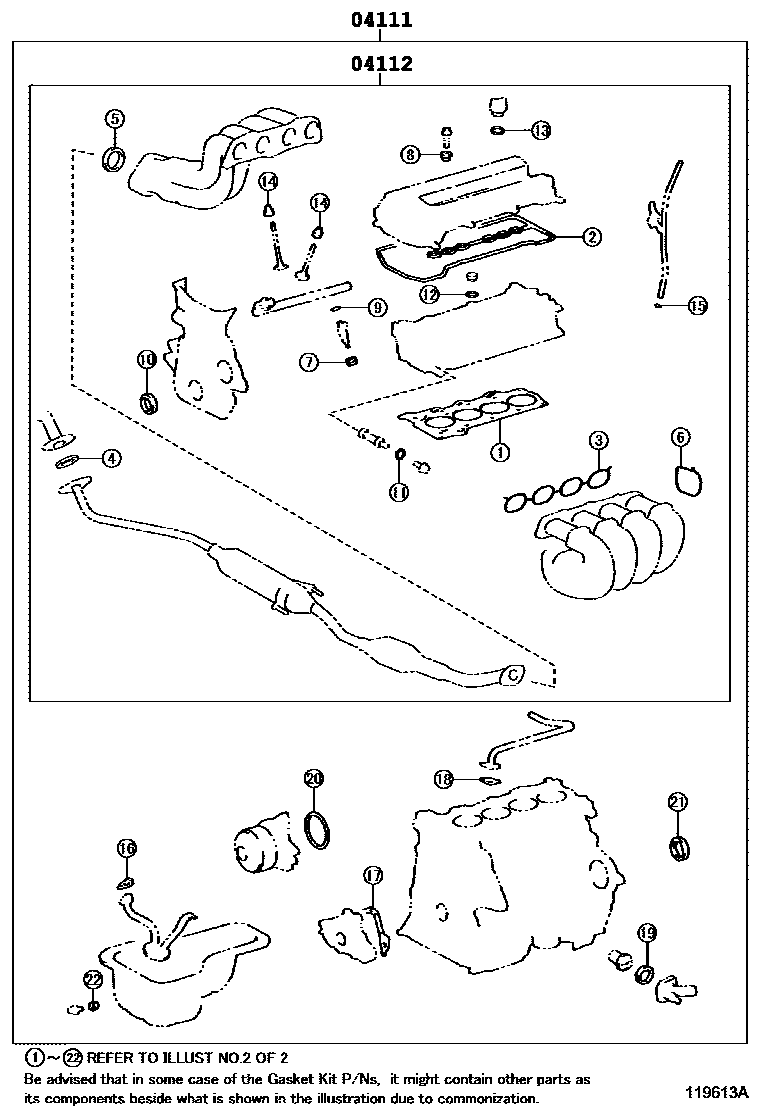

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119613A
Engine Overhaul Gasket Kit — 119613A (200404 – 999999)

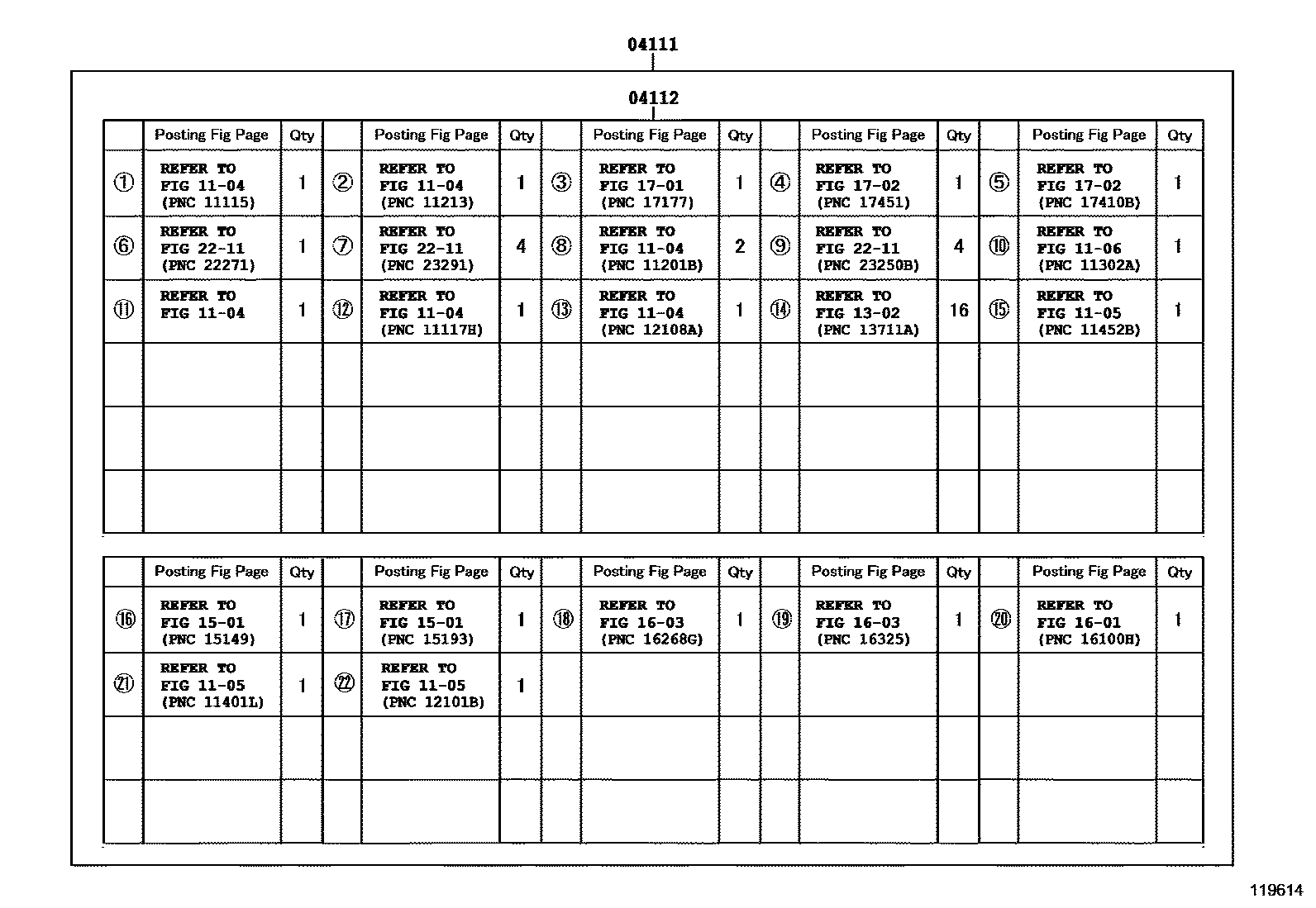

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119614
Engine Overhaul Gasket Kit — 119614 (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-22150 · 04111-22151 · 04111-22152 · 04111-22310 · 04111-22880
04112Engine valve grinding pad assembly04112-22150 · 04112-22151 · 04112-22152 · 04112-22310 · 04112-22730
