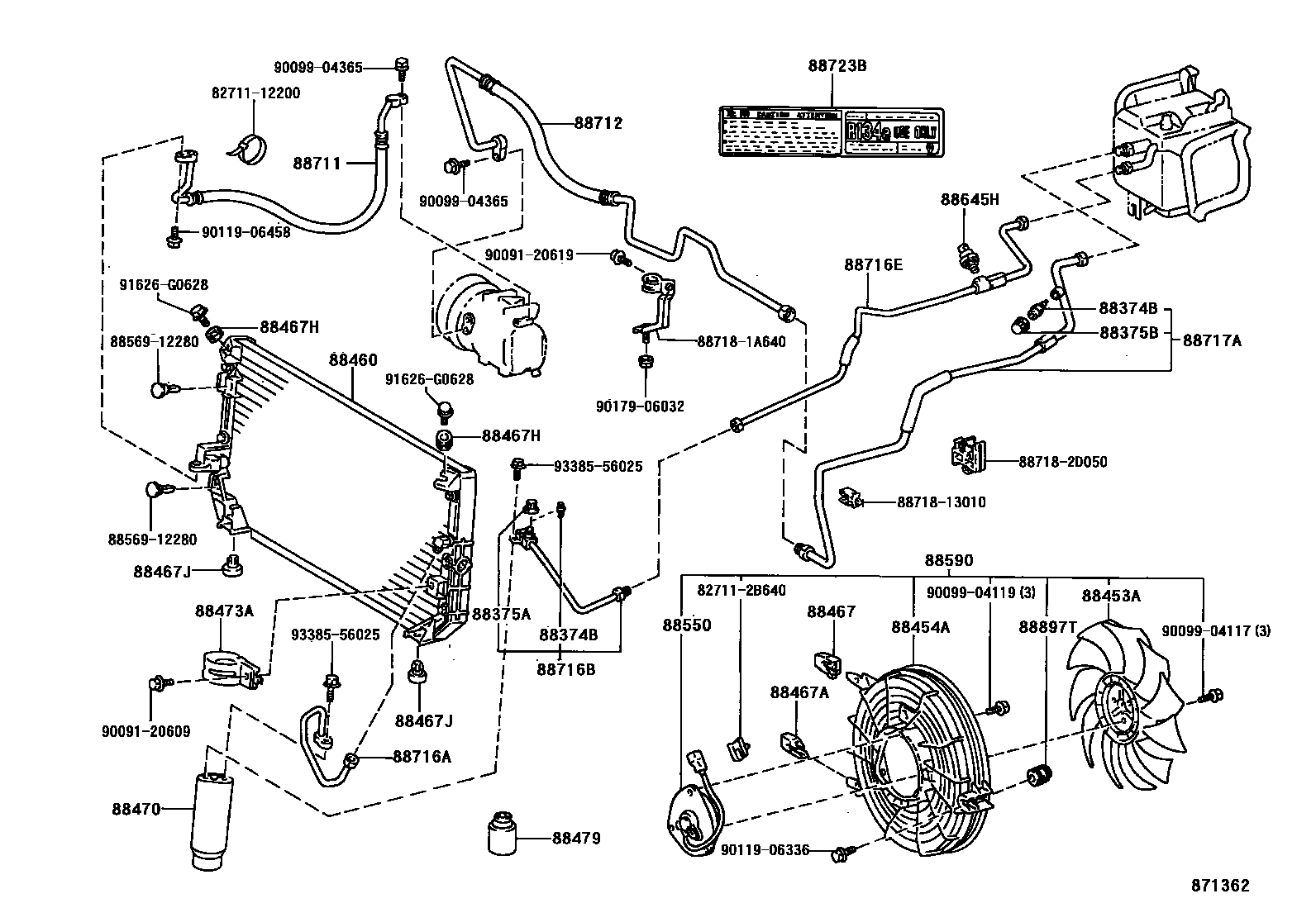

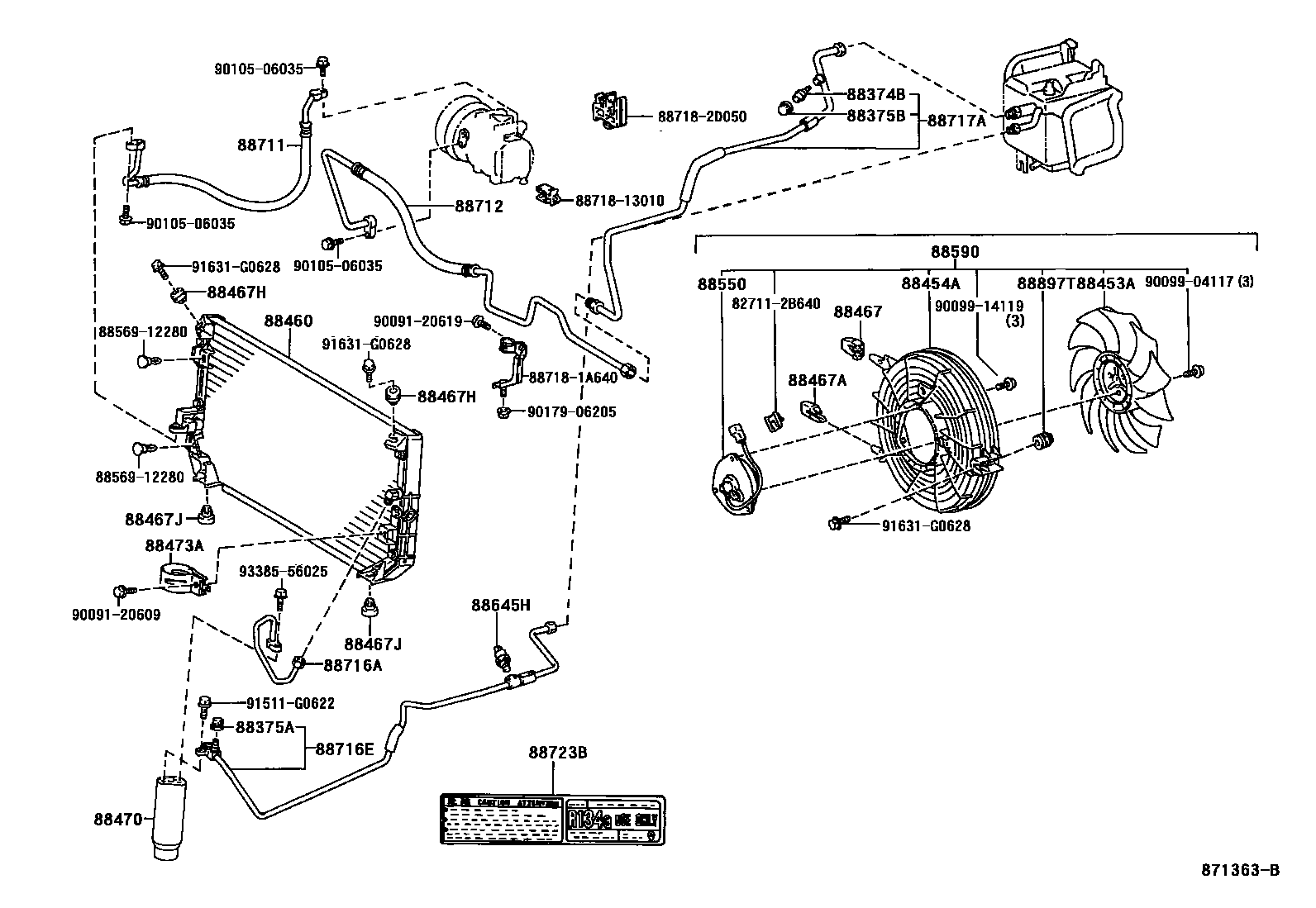

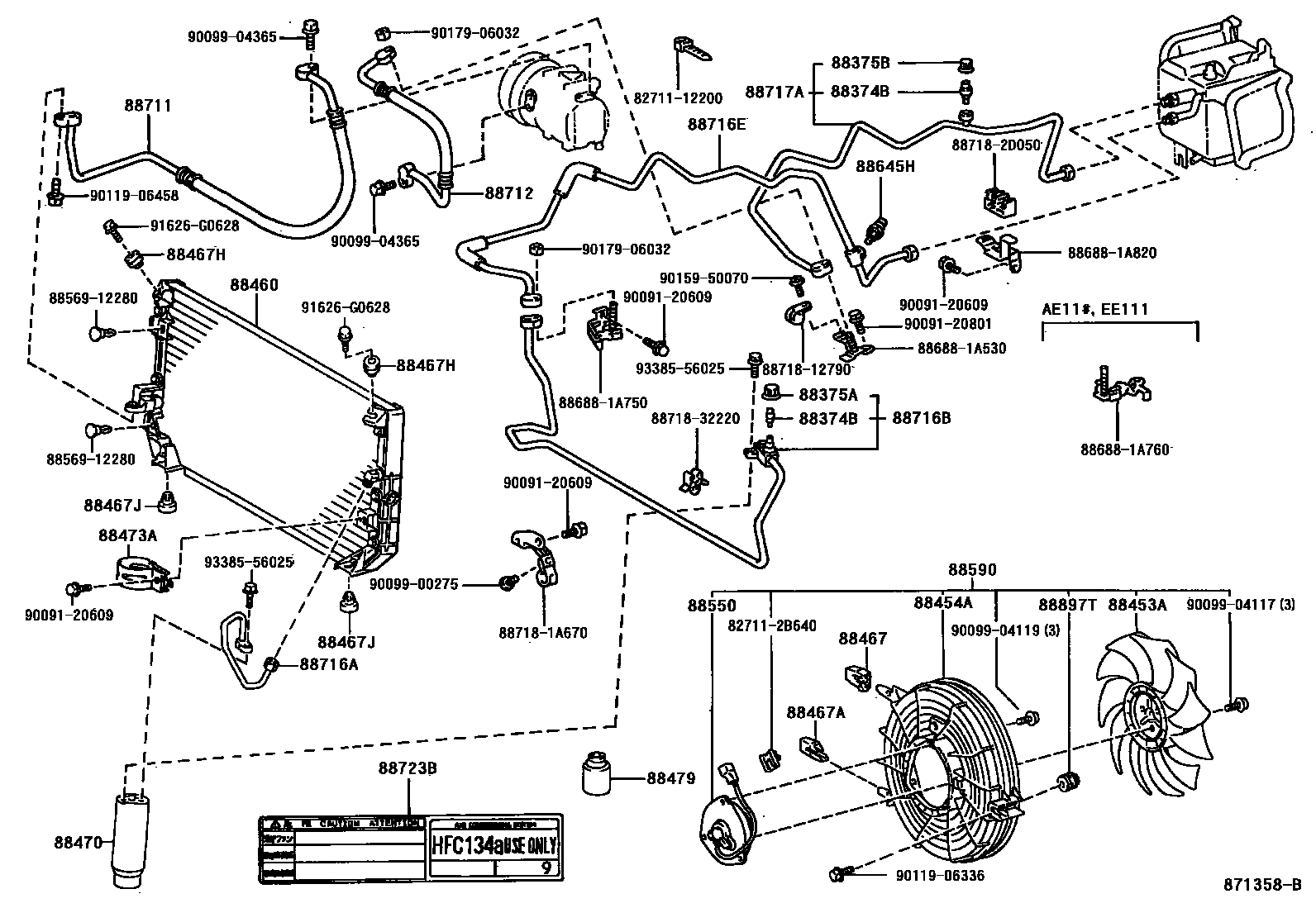

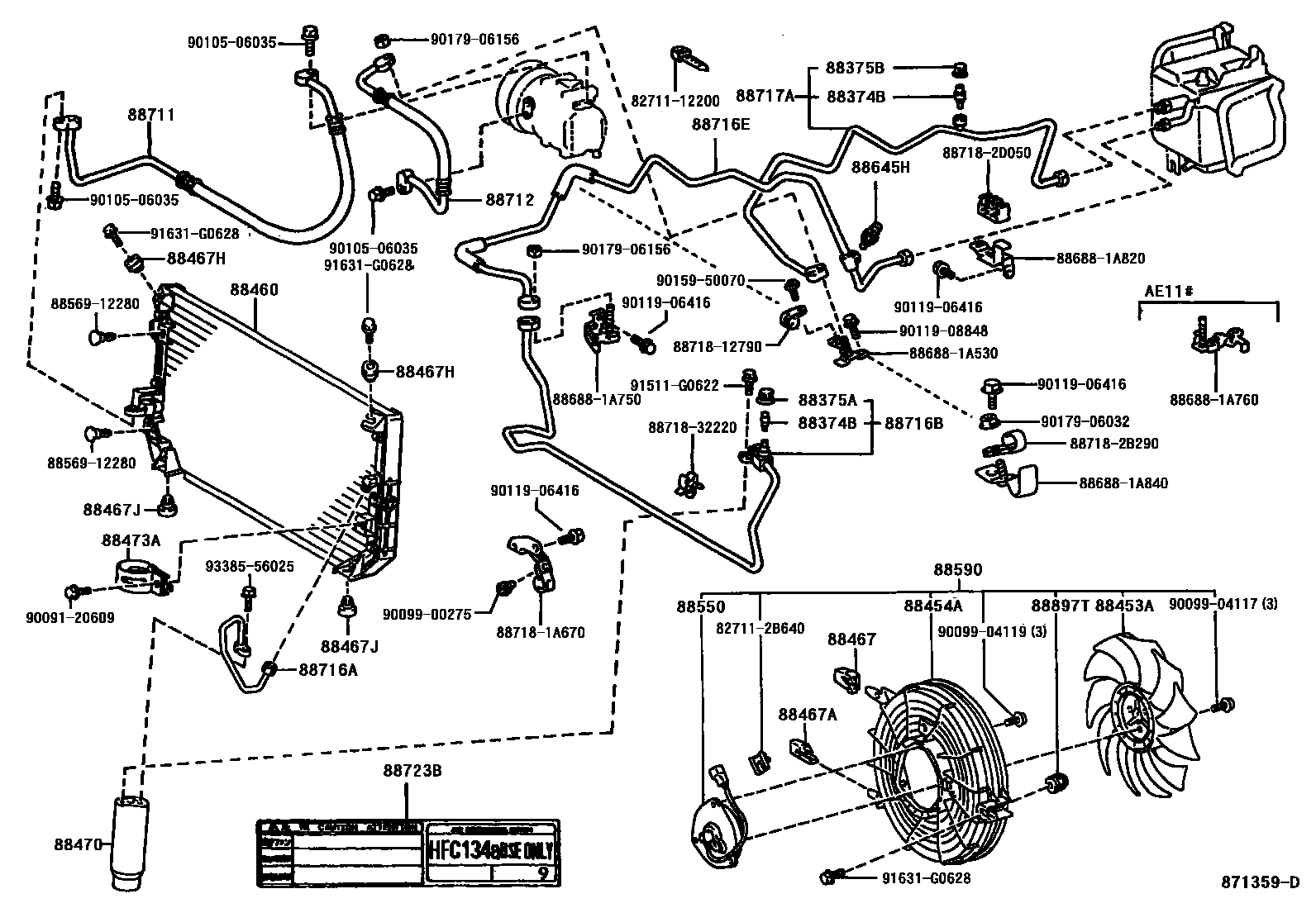

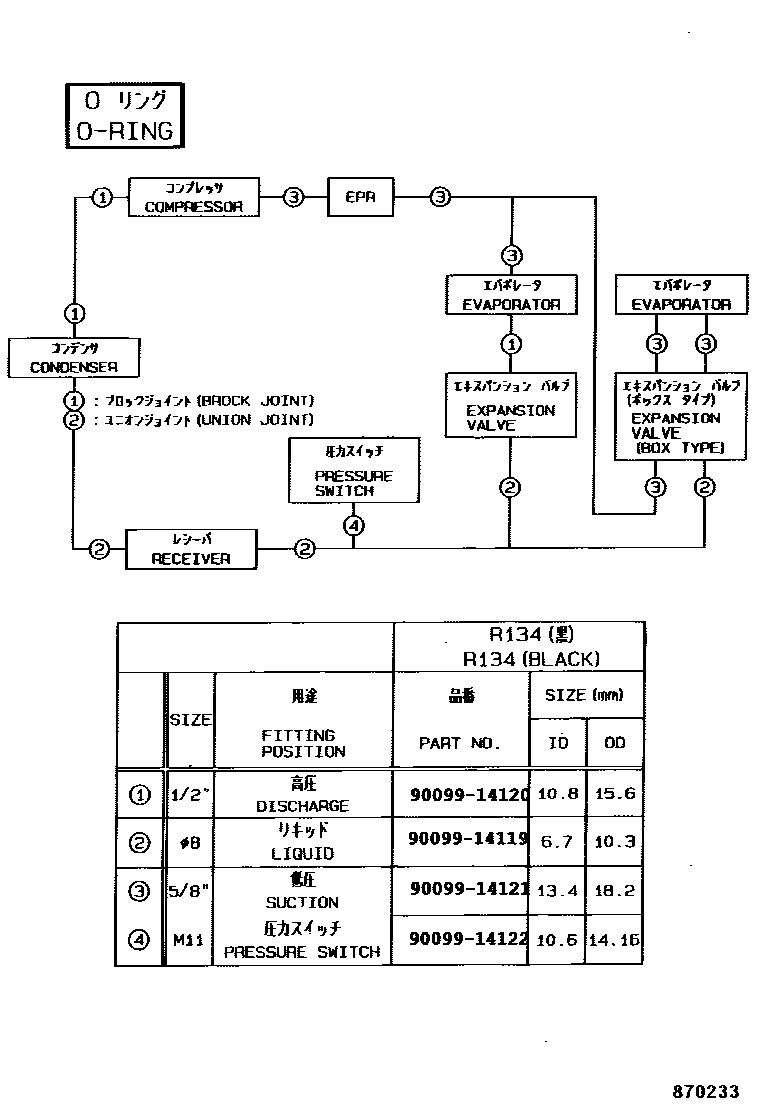

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88453A | cooling fan | 88453-10021 · 88453-10022 |
| 88454A | fan cover | 88454-12160 |
| 88460 | Air conditioning condenser assembly | 88460-12480 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12130 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-12140 |
| 88467H | No. 1 condenser bracket buffer pad | 88897-12250 |
| 88467J | No. 2 condenser bracket buffer pad | 88467-12100 |
| 88470 | Cooler reservoir and dryer assembly | 88471-60010 |
| 88473A | Reservoir tank fixings | 88473-20070 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-12160 |
| 88590 | Blower assembly with hood | 88590-12250 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-1A431 · 88711-1A450 · 88711-1A490 · 88711-1A491 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-1A440 · 88712-1A450 · 88712-1A460 · 88712-1A500 · 88712-1A580 · 88712-1A600 · 88712-1A610 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-12470 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A410 · 88716-1A470 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-13010 · 88716-1A420 · 88716-1A440 · 88716-1A480 |
| 88717A | Cooler refrigerant suction pipe A | 88717-13020 · 88717-1A060 · 88717-1A080 |
| 88723B | Cooler maintenance warning label | 88723-12120 |
| 88897T | cooler seal | 88897-12250 |
