Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

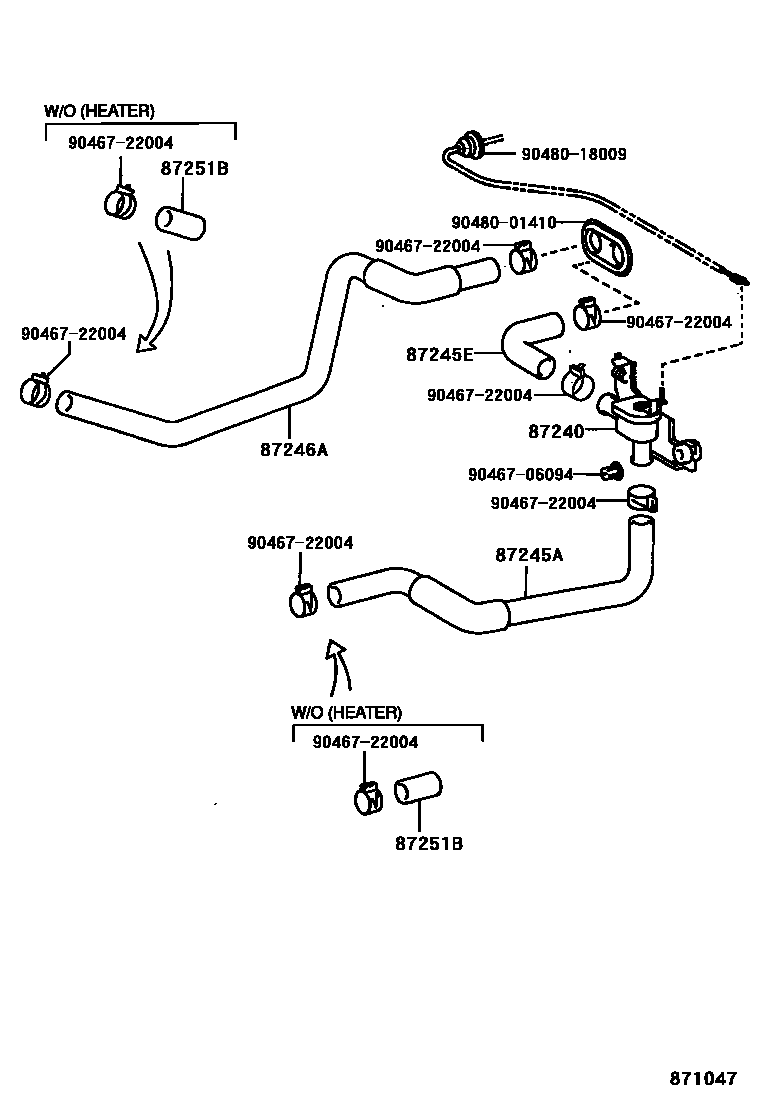

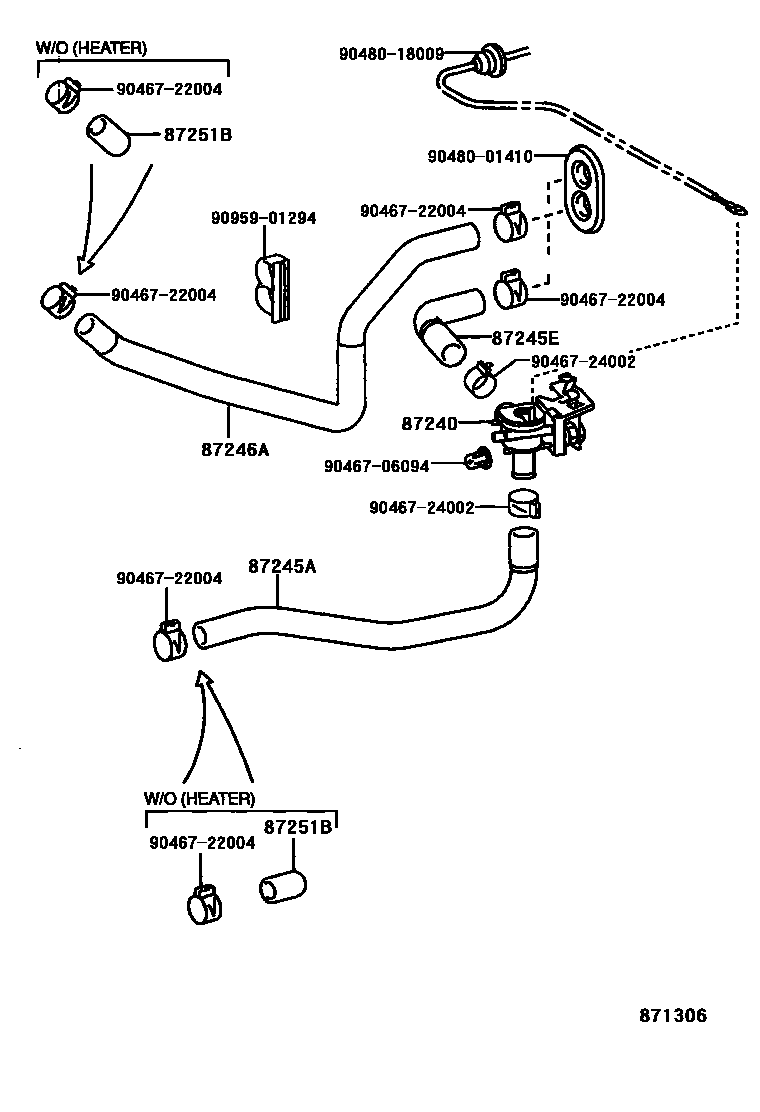

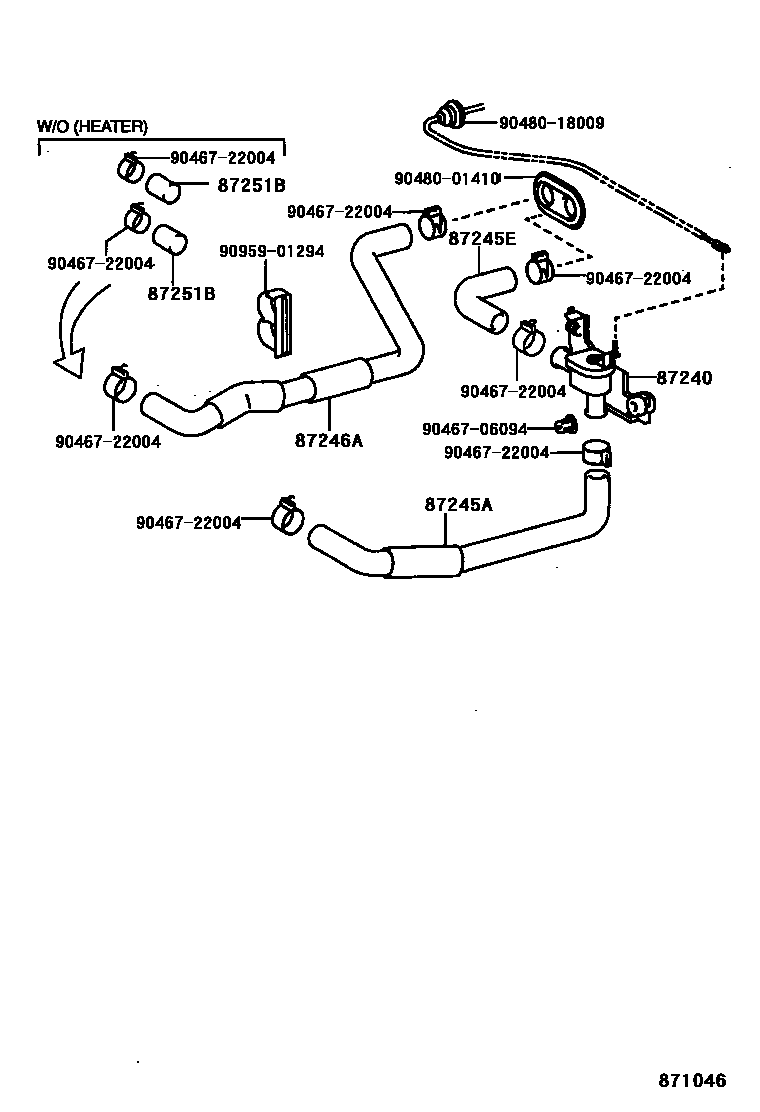

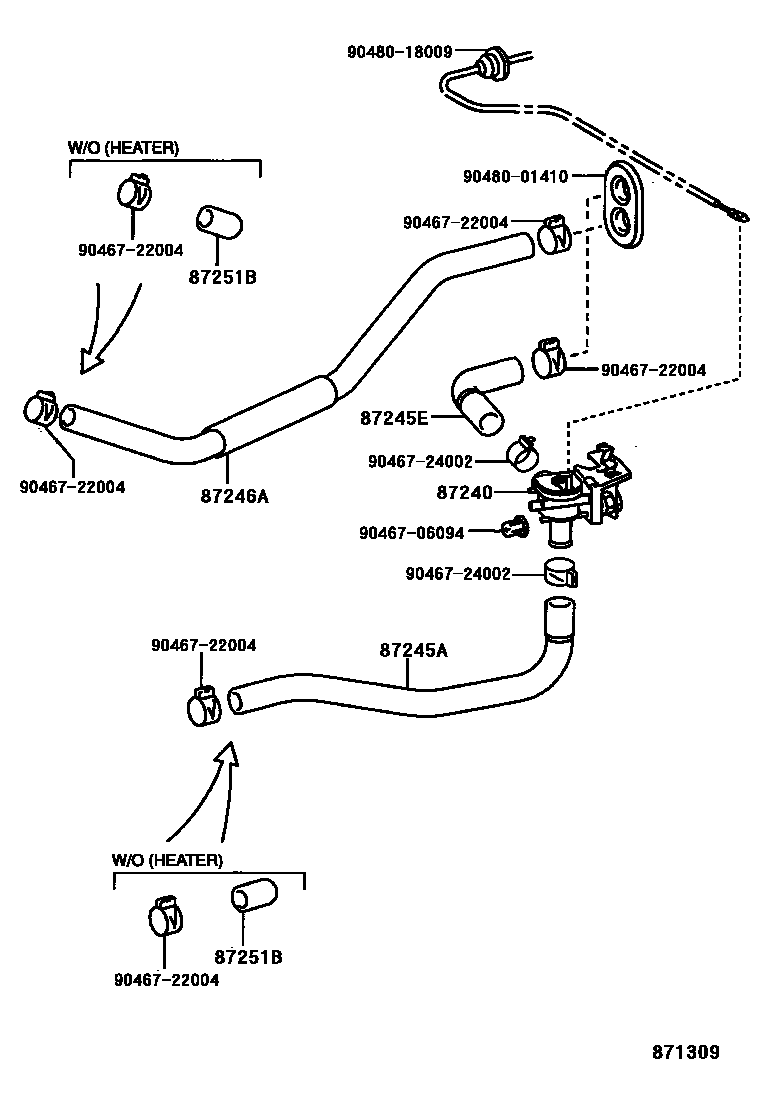

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-12250 · 87240-12260 |
| 87245A | Heater water inlet hose A | 87245-1A542 · 87245-1A570 · 87245-1A640 · 87245-1A680 · 87245-1A760 |
| 87245E | Heater water inlet hose E | 87245-1A440 · 87245-1A530 |
| 87246A | Heater outlet hose A | 87245-1A273 · 87245-1A332 · 87245-1A581 · 87245-1A630 · 87245-1A670 |
| 87251B | heater water plug | 90339-16001 |
