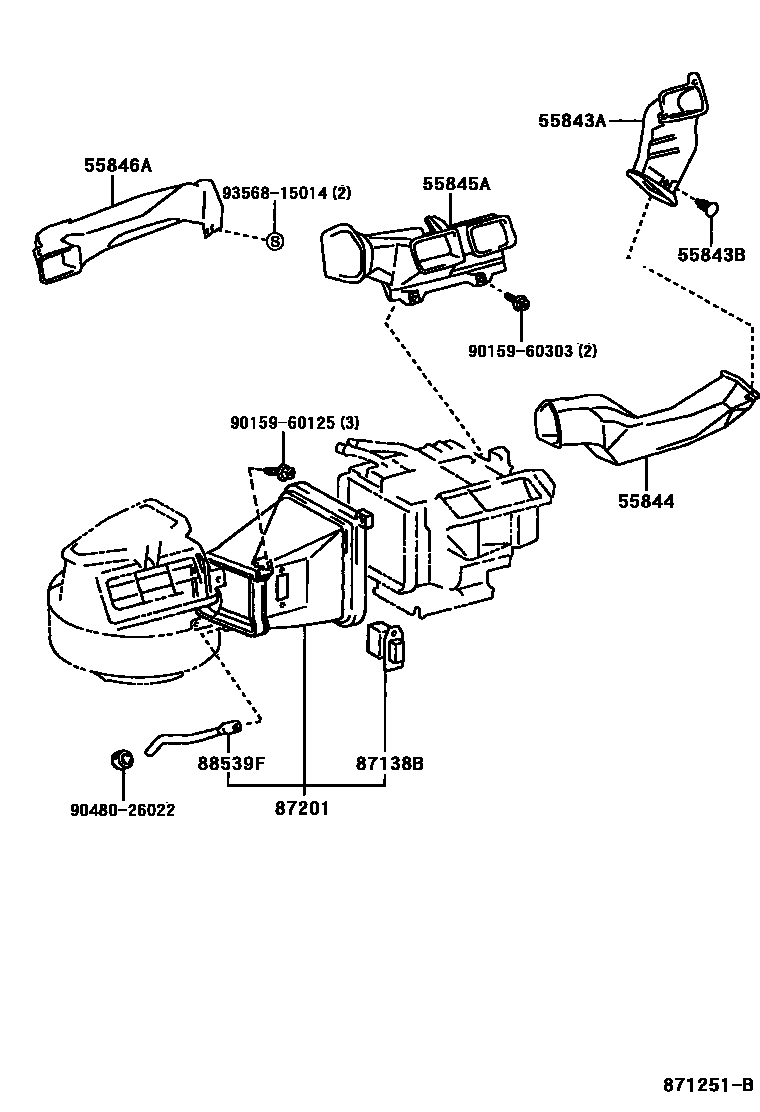

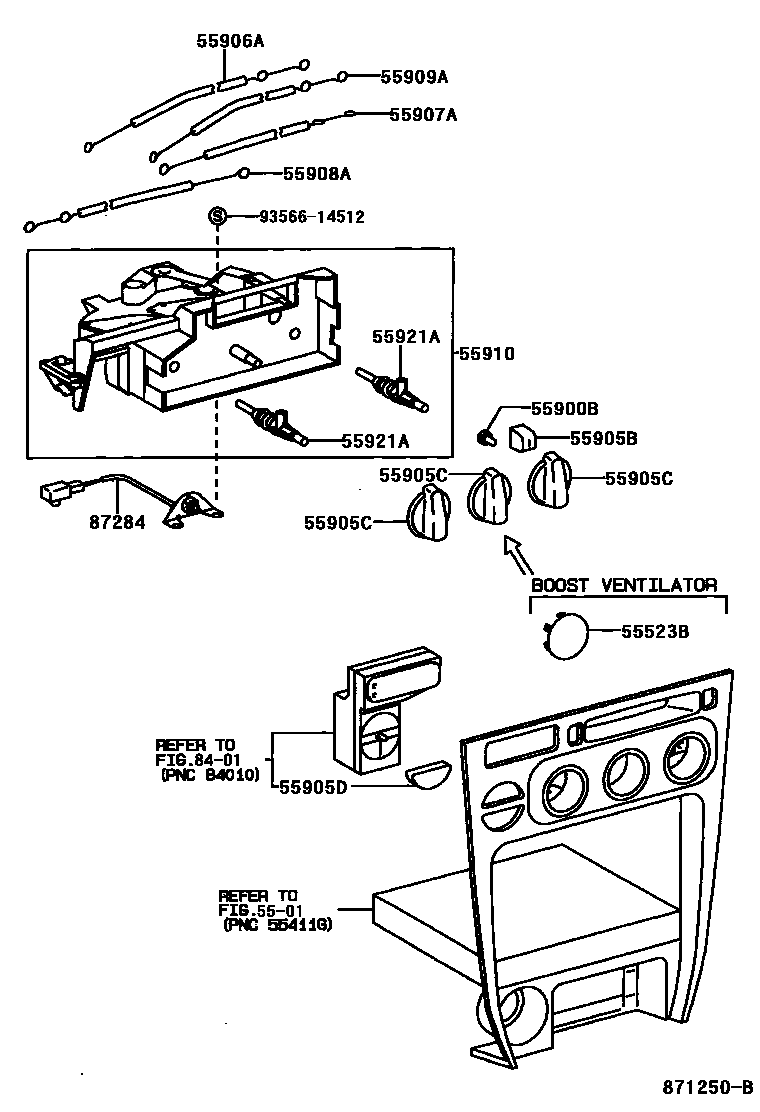

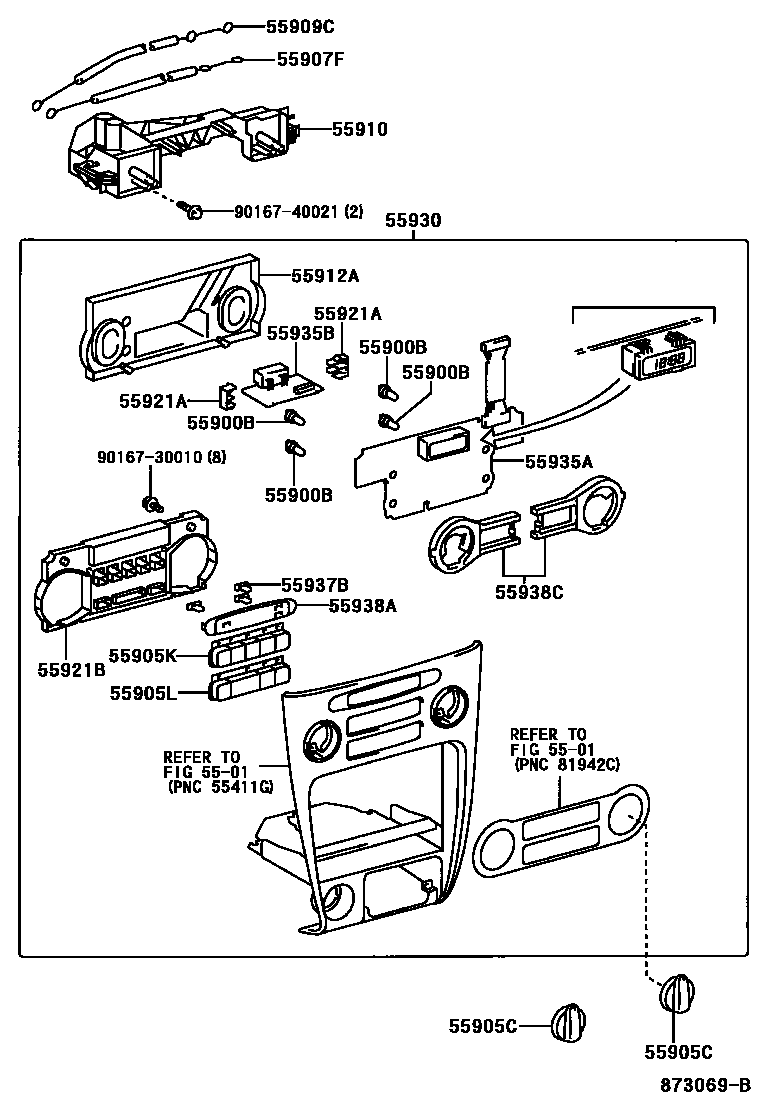

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-12260 · 55843-12270 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12420 · 55844-12430 |
| 55845A | Air duct No. 3 from heater to air regulator | 55870-12020 · 55870-12030 |
| 55846A | Air duct No. 4 from heater to air register | 55846-12260 · 55846-12270 |
| 55900B | air conditioning control light bulb | 90010-05102 · 90981-11014 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12380 · 55906-12390 |
| 55907A | Water valve control cable sub-assembly | 55907-12450 · 55907-12470 |
| 55907F | Water valve control cable sub-assembly | 55907-12460 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12290 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12280 |
| 55909C | Air mix damper control cable sub-assembly | 55909-12310 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12650 · 55910-12660 · 55910-12670 · 55910-12680 · 55910-12690 · 55910-12700 · 55910-12710 |
| 55912A | heater control housing | 55912-12050 |
| 55921A | Heater Controller Fixing | 55921-12080 · 55921-12090 |
| 55921B | Heater Controller Fixing | 55921-12100 |
| 55935A | Central instrument cluster module circuit | 55935-12030 |
| 55935B | Central instrument cluster module circuit | 55935-12050 |
| 55937B | clock adjustment button | 55937-12050 |
| 55938A | clock cover | 55938-12030 |
| 55938C | Center instrument cluster module indicator lamp cover | 55938-12040 |
| 87138B | Heater Blower Resistor | 87138-12140 |
| 87201 | No. 1 air duct sub-assembly | 87201-12430 · 87201-12470 |
| 87284 | Variable resistor sub-assembly | 88032-12170 |
| 88539F | discharge hose | 88539-12110 |
