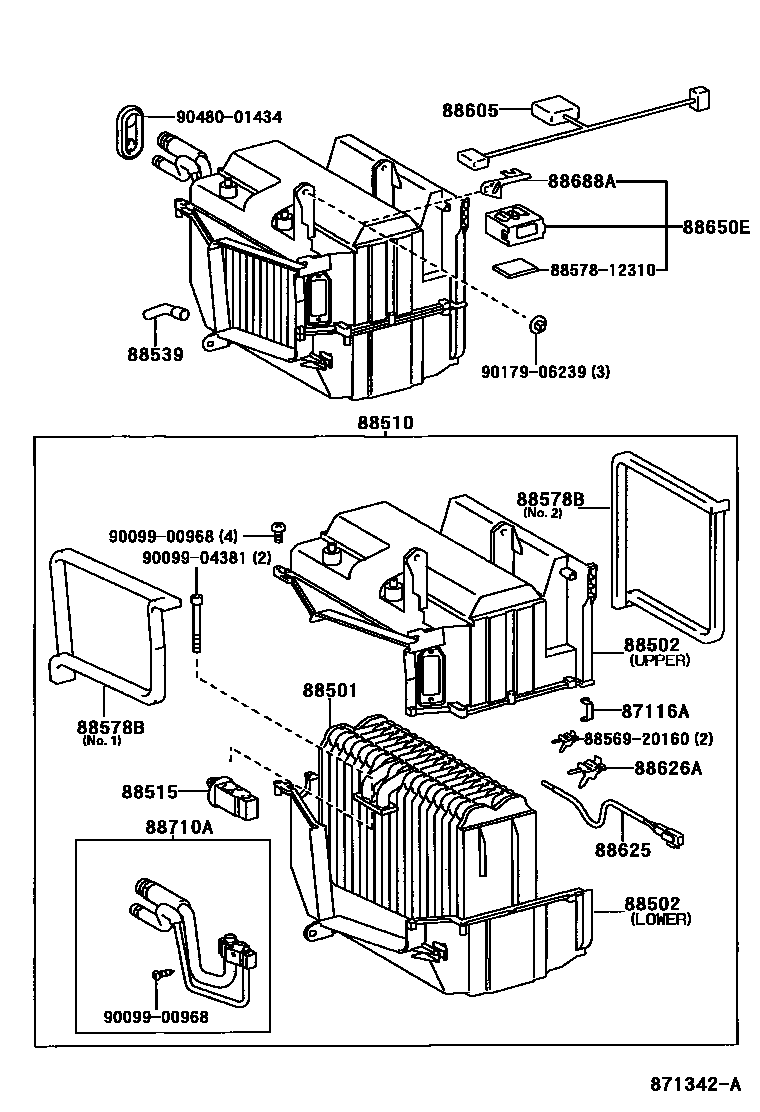

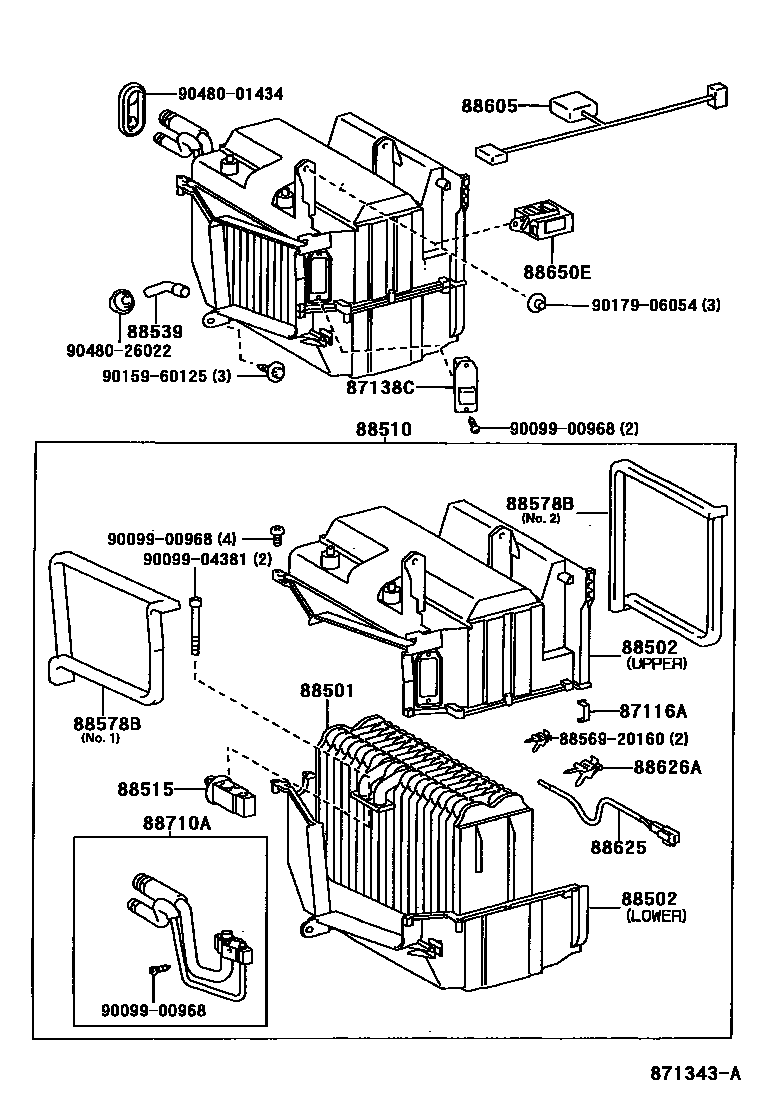

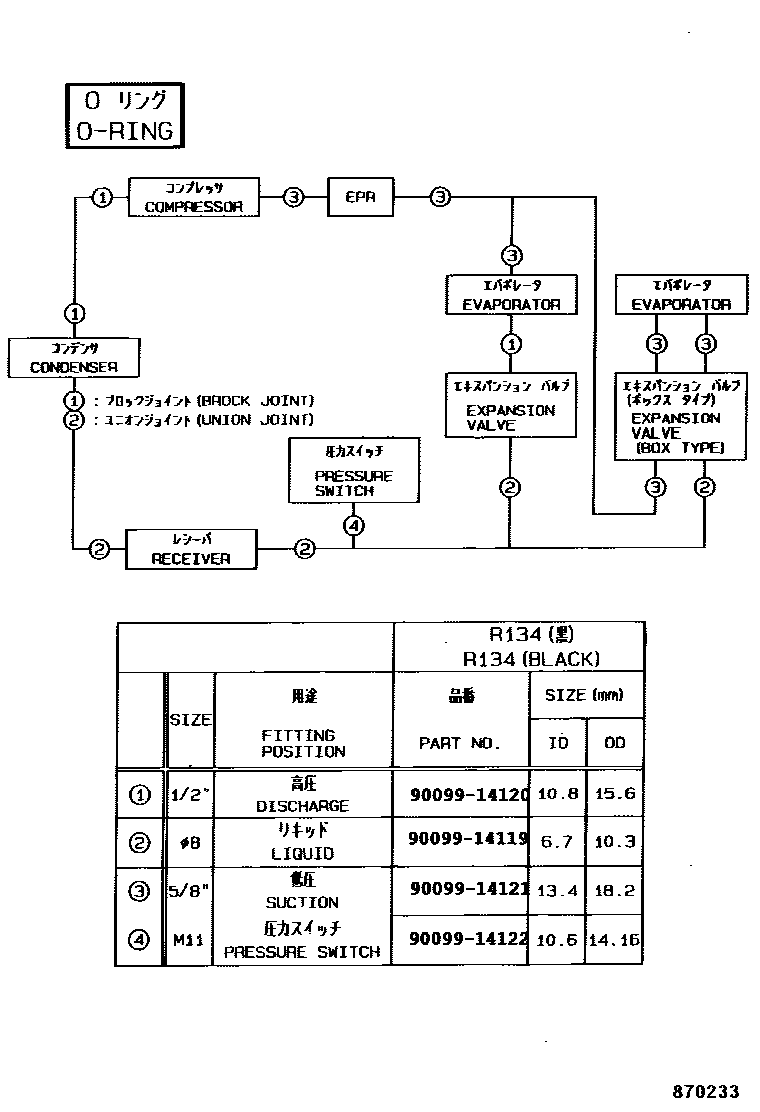

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 87138C | Blower resistor | 87138-12140 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12391 · 88501-12401 |
| 88502 | Cooling device shell sub-assembly | 88502-12190 · 88502-12200 · 88502-12210 · 88502-12220 |
| 88510 | Cooler device assembly | 88510-1A300 · 88510-1A310 |
| 88515 | Cooler expansion valve | 88515-20100 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12160 |
| 88578B | Cooling unit seal No. 1 | 88578-12470 · 88578-12490 · 88578-20470 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1E800 · 88605-1E810 · 88605-1E820 · 88605-1E830 · 88605-1H120 · 88605-1H130 · 88605-1H240 · 88605-1H250 · 88605-1H260 · 88605-1H270 |
| 88625 | Cooler No. 1 Thermistor | 88625-12240 · 88625-12280 |
| 88626A | Thermistor mount | 88626-28010 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-1A500 · 88650-1E040 · 88650-1E070 |
| 88688A | Cooler stabilized amplifier stand | 88688-1A070 · 88688-1A090 · 88688-1A280 |
| 88710A | Air conditioning pipe assembly | 88710-12330 · 88710-12340 |
