Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.

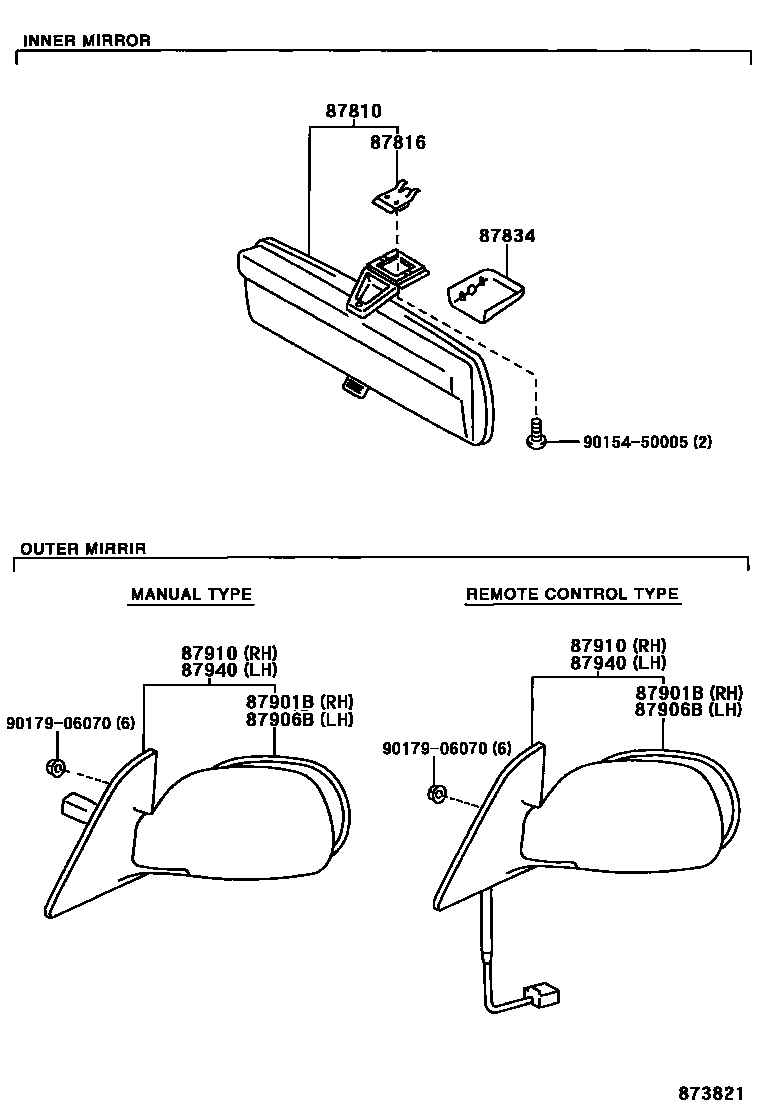

Toyota COROLLA 后视镜 EPC diagram — 873821
后视镜 — 873821 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
87816Interior rearview mirror spring74372-30030
87901BRight exterior rearview mirror sub-assembly87931-1A820 · 87931-1E660 · 87931-1E680 · 87931-1E720 · 87931-1E800
87906BLeft exterior rearview mirror sub-assembly87961-1E820 · 87961-1E880 · 87961-1H010 · 87961-1H050
87910Right exterior rearview mirror assembly87910-1A790 · 87910-1E670 · 87910-1E730 · 87910-1E771
87940Left exterior rearview mirror assembly87940-1E790 · 87940-1E890 · 87940-1H060 · 87940-1H101
