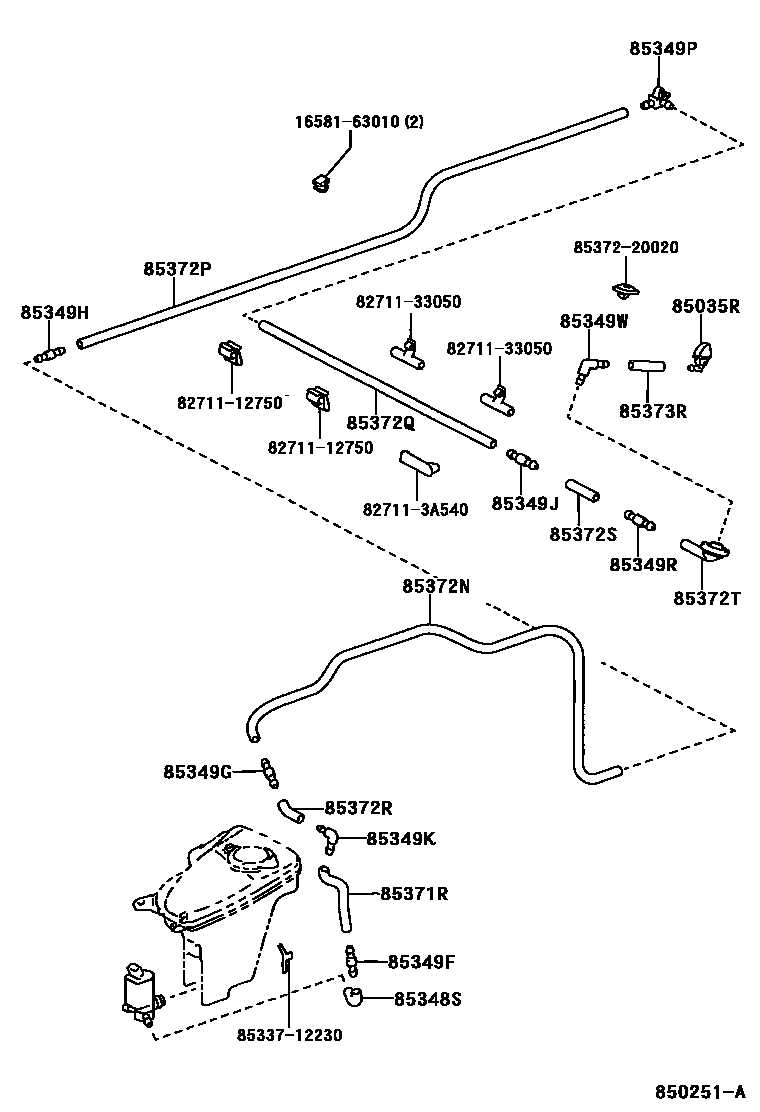

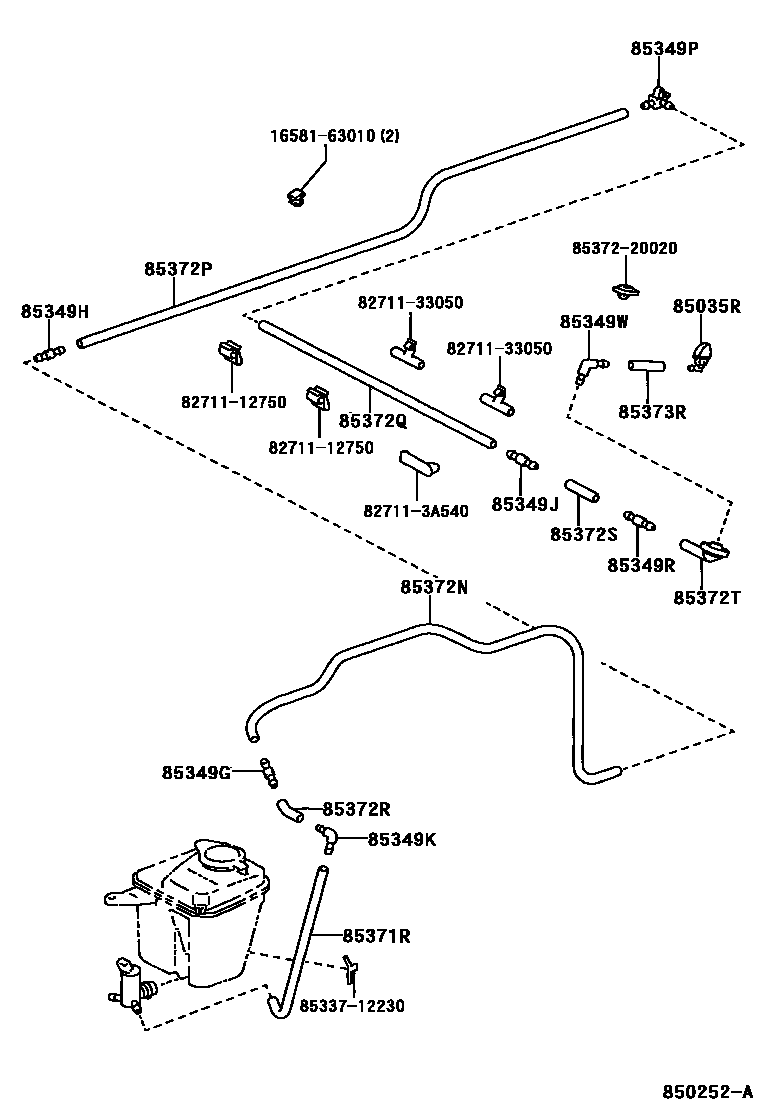

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85395-12030 |
| 85348S | No. 1 rear cleaner elbow joint | 85336-12230 |
| 85349F | No. 1 rear washer hose connector | 85375-10260 |
| 85349G | No. 2 rear washer hose connector | 85349-89122 |
| 85349H | No. 3 rear washer hose connector | 85349-89122 |
| 85349J | No. 4 rear washer hose connector | 85349-89122 |
| 85349K | No. 2 rear cleaner elbow joint | 85317-12230 |
| 85349P | No. 3 rear cleaner elbow joint | 85387-14540 |
| 85349R | No. 5 rear washer hose connector | 85349-89122 |
| 85349W | No. 4 rear cleaner elbow joint | 85355-20200 |
| 85372T | Cleaner seal | 85373-14020 |
