Toyota COROLLA 防盗装置 — Figure 8424

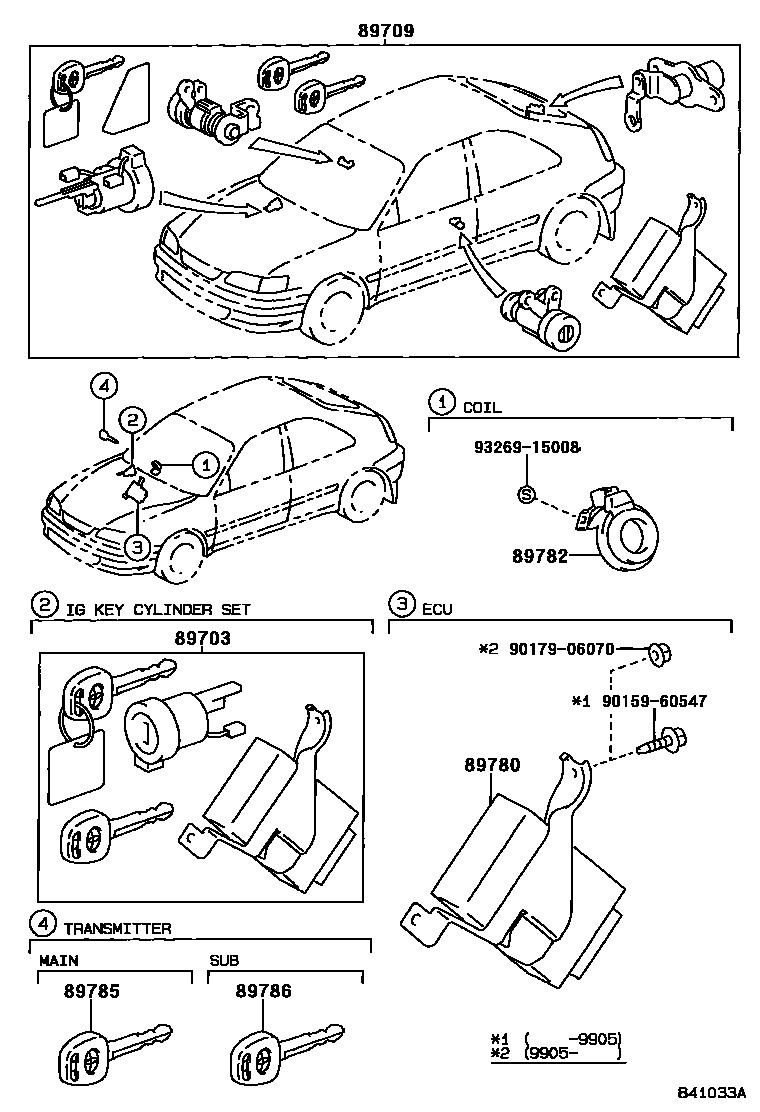

Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-12060 · 89703-12061 |
| 89709 | Transceiver key ECU assembly | 89709-12250 · 89709-12251 |
| 89780 | Transceiver key ECU assembly | 89780-12070 · 89780-12071 |
| 89782 | transceiver key coil | 89782-44010 |
| 89785 | transceiver key master transmitter | 89785-26020 |
| 89786 | transceiver key secondary transmitter | 89786-26020 |
