Toyota COROLLA 电子燃油喷射系统 — Figure 8404

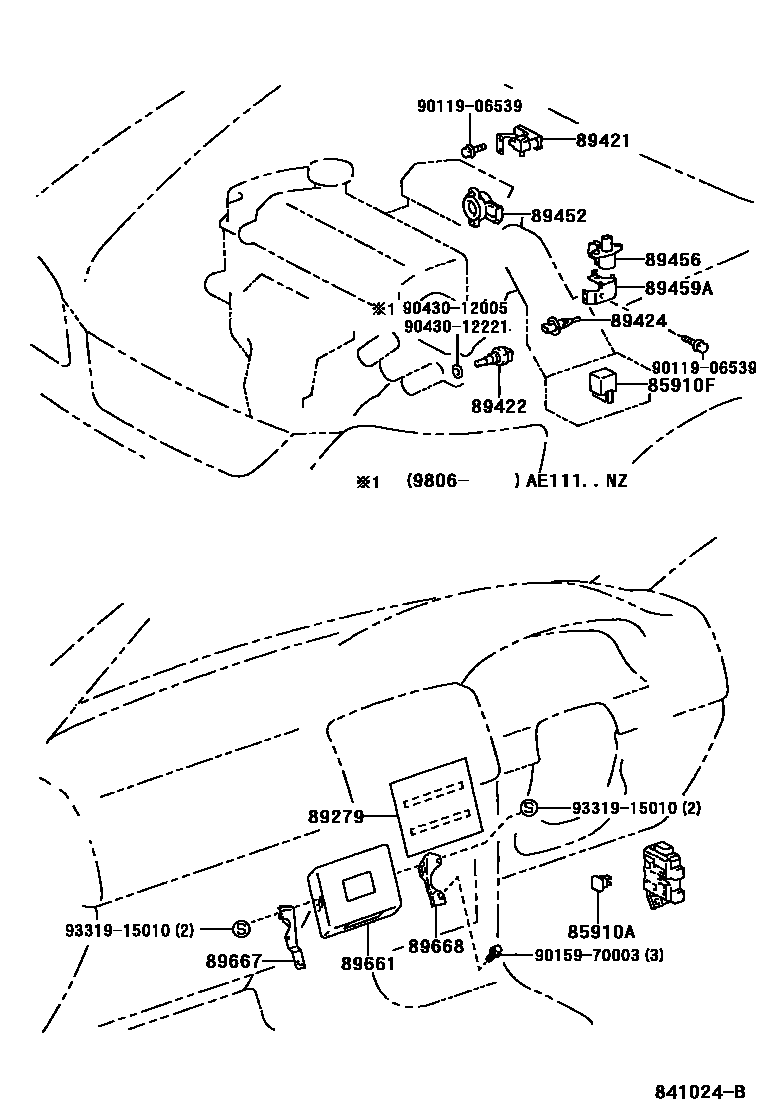

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90080-87008 · 90987-02012 |
| 85910F | ECU relay (for EFI) | 90080-87008 · 90987-02012 |
| 89279 | Engine control ECU cover | 89279-13020 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89420-02020 · 89420-12070 · 89420-12150 · 89420-12190 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-22090 · 89452-33030 |
| 89456 | variable resistor | 89456-30010 |
| 89459A | Variable resistor bracket | 89459-12020 |
| 89661 | Engine control ECU | 89661-1A350 · 89661-1A800 · 89661-1A810 · 89661-1E160 · 89661-1E310 · 89661-1E320 · 89661-1E330 · 89661-1E340 · 89661-1E350 |
| 89667 | Engine control ECU bracket | 89667-12130 |
| 89668 | No. 2 engine control ECU bracket | 89668-12060 |
