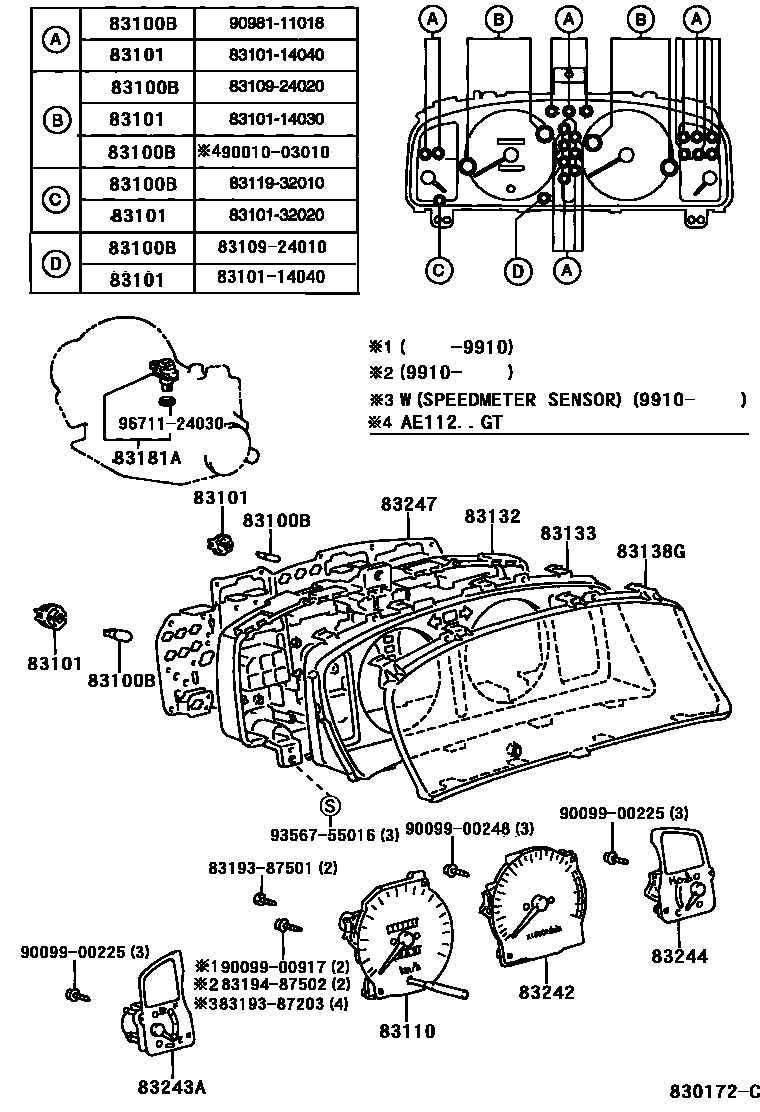

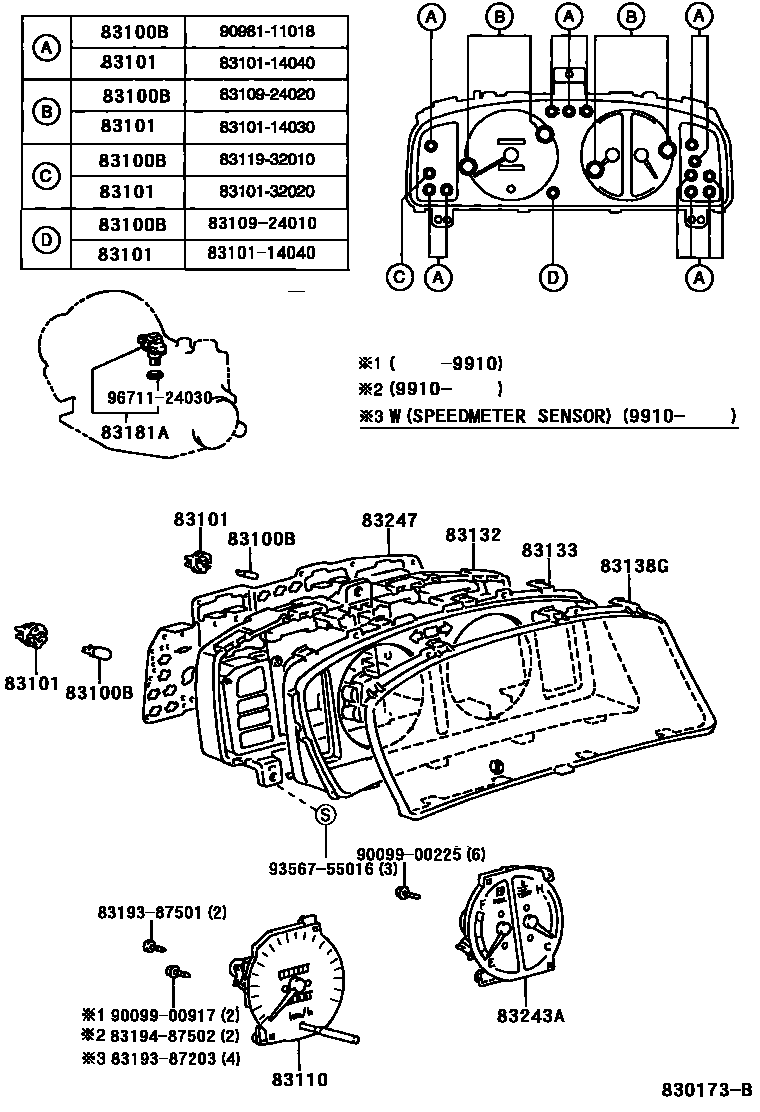

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-24010 · 83109-24020 · 83119-32010 · 90010-03010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-32020 |
| 83110 | Speedometer assembly | 83220-12100 · 83220-12140 · 83220-12180 · 83220-12200 · 83220-12210 · 83220-12211 · 83220-12220 · 83220-12221 · 83220-12230 · 83220-12240 · 83220-12430 · 83220-12640 · 83220-12650 |
| 83132 | Instrument cluster housing | 83841-12600 · 83841-12610 · 83841-12630 · 83841-12640 · 83841-1A050 · 83841-1A100 |
| 83133 | Combined instrument panel No. 1 | 83811-12600 · 83811-12610 · 83811-12640 · 83811-12720 |
| 83138G | Instrument cluster glass | 83852-12700 |
| 83181A | speedometer sensor | 83181-12020 |
| 83242 | Engine tachometer assembly | 83881-12620 · 83881-1E710 |
| 83243A | Fuel gauge sub-assembly | 83882-12700 · 83882-12840 · 83882-12860 · 83882-1A320 · 83882-1E130 · 83882-1E710 |
| 83244 | Water temperature meter sub-assembly | 83883-12840 · 83883-1A020 · 83883-1A220 |
| 83247 | Instrument circuit board | 83861-1A110 · 83861-1A300 · 83861-1A770 · 83861-1A810 · 83861-1E130 · 83861-1E390 · 83861-1E410 · 83861-1E500 · 83861-1E510 · 83861-1E580 · 83861-1E670 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-12710 · 83710-12770 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-12660 · 83710-12690 · 83710-12700 |
