Toyota COROLLA 后组合灯 — Figure 8111

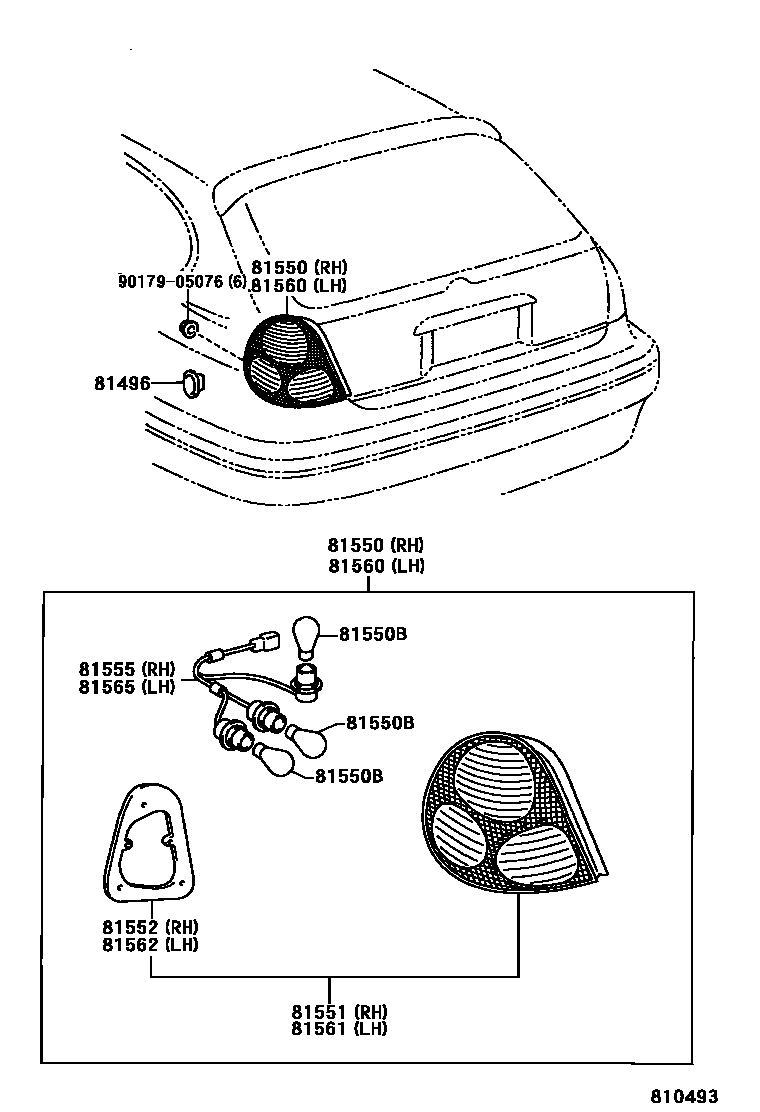

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-12010 |
| 81550 | Right rear combination light assembly | 81550-1E070 · 81550-1E170 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-1E070 · 81551-1E170 |
| 81552 | Right rear combination lamp shade gasket | 81552-1E060 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1E070 |
| 81560 | Left rear combination light assembly | 81560-1E030 · 81560-1E130 |
| 81561 | Left rear combination lamp shade | 81561-1E030 · 81561-1E130 |
| 81562 | Left rear combination lamp shade gasket | 81562-1E020 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1E070 |
