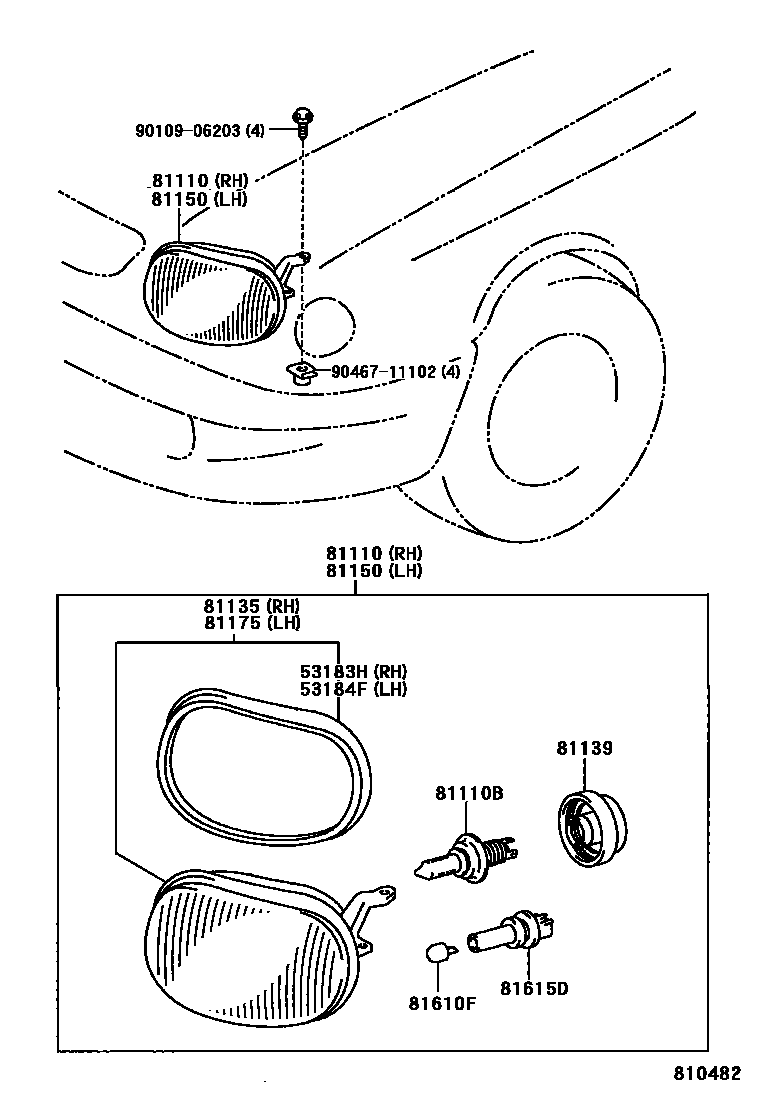

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-12190 |
| 53184F | Left headlight cover seal | 53184-12110 |
| 81110 | Right headlight assembly | 81110-1E380 · 81110-1E400 · 81110-1E420 · 81110-1E540 · 81110-1E550 |
| 81110B | Bulb (for headlight No. 1) | 90080-81040 · 90981-13016 · 90981-22004 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81135 | Right headlight assembly assembly | 81130-1E380 · 81130-1E420 · 81130-1E540 · 81130-1E550 |
| 81139 | Headlight lamp holder cover | 90075-65002 |
| 81150 | Left headlight assembly | 81150-1E250 · 81150-1E270 · 81150-1E290 · 81150-1E420 · 81150-1E430 |
| 81175 | Left headlight assembly assembly | 81170-1E250 · 81170-1E290 · 81170-1E420 · 81170-1E430 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60004 · 90075-60020 |
