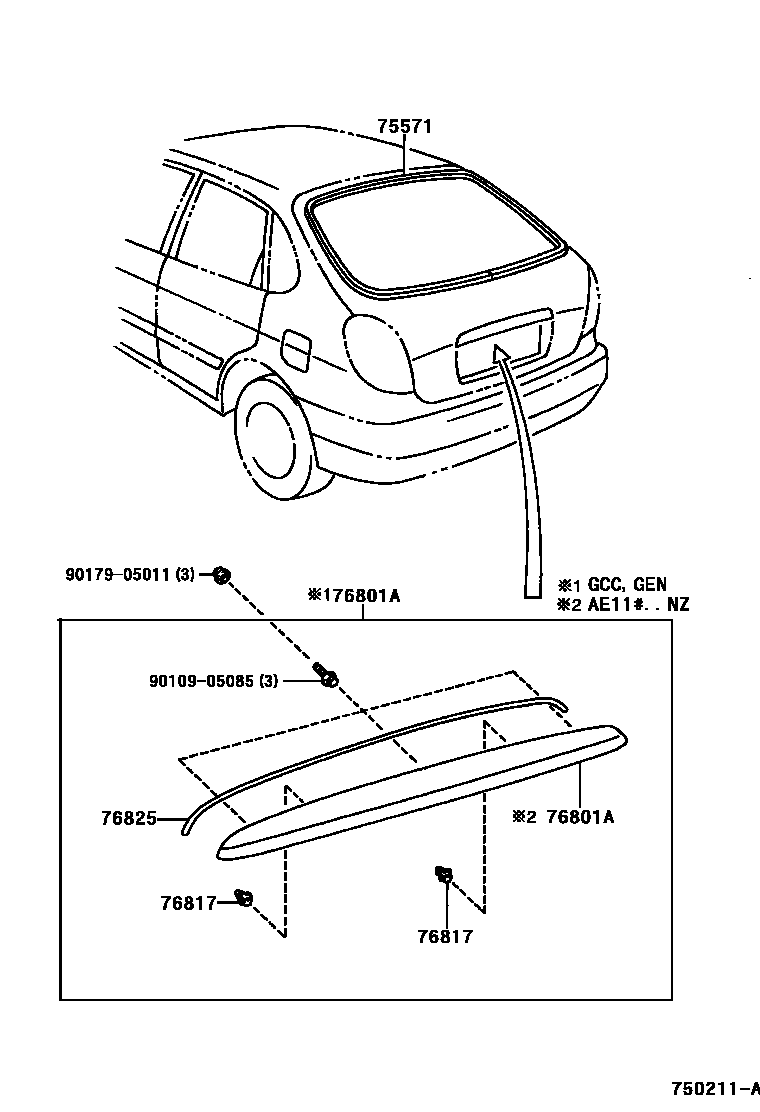

Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-12810 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76811-12500 |
| 76817 | Rear door exterior decorative strip clip | 76817-12050 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-12020 |
