Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.

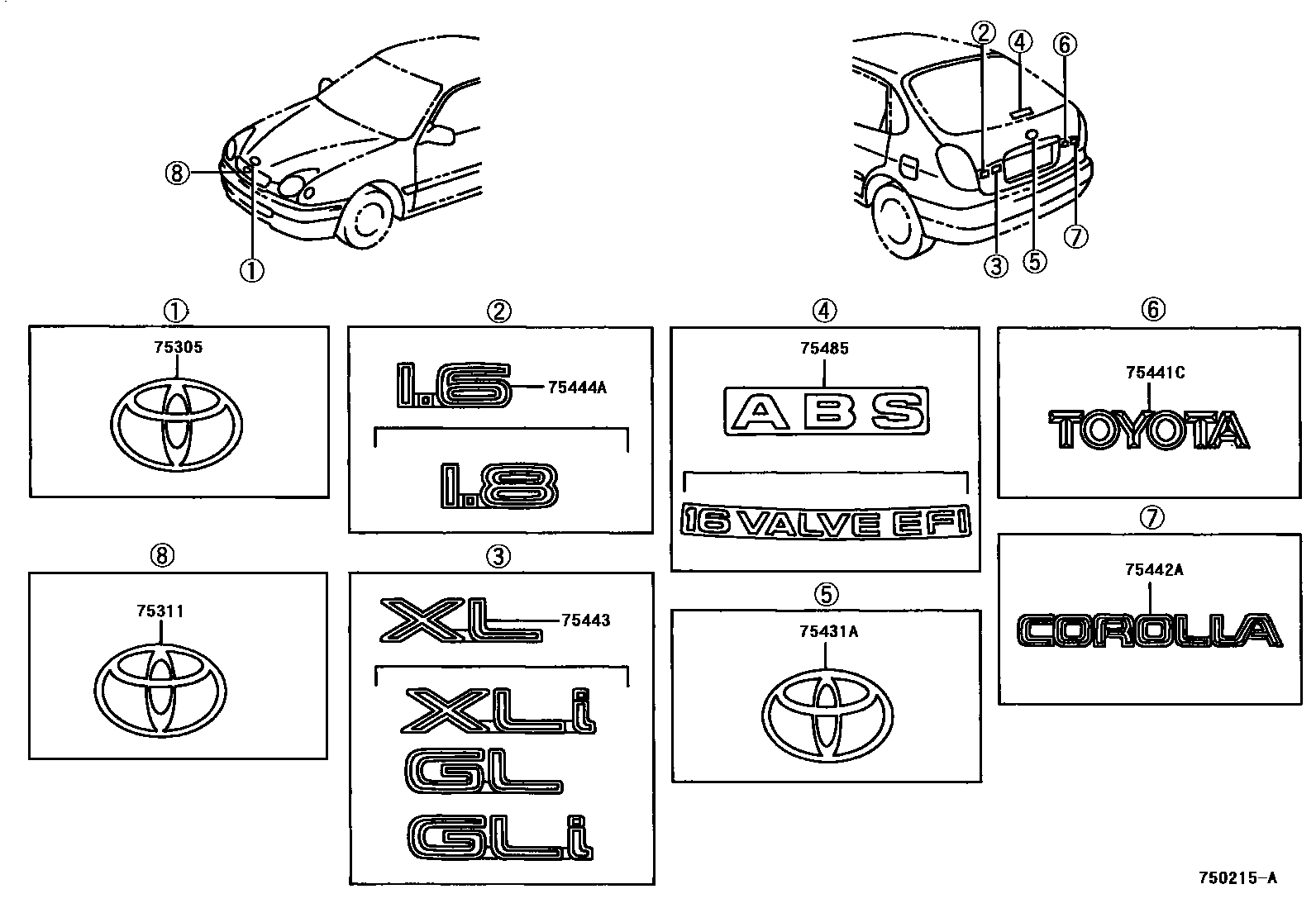

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750215A
丰田徽标和铭牌(车外和车内) — 750215A (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
75305engine cover plate75331-12100
75311Radiator grille (or front panel) plate75311-1E010
75431ANo. 1 sign on back door75431-12130
75441CBack door nameplate75441-12800
75442ANo. 2 nameplate on back door75442-1A390
75443No. 3 nameplate on back door75444-1A500 · 75444-1A510 · 75444-1A520 · 75444-1A530
75444ANo. 4 nameplate on back door75443-1A820 · 75443-1A840
75485Back window nameplate75485-12320 · 75485-12360
