Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

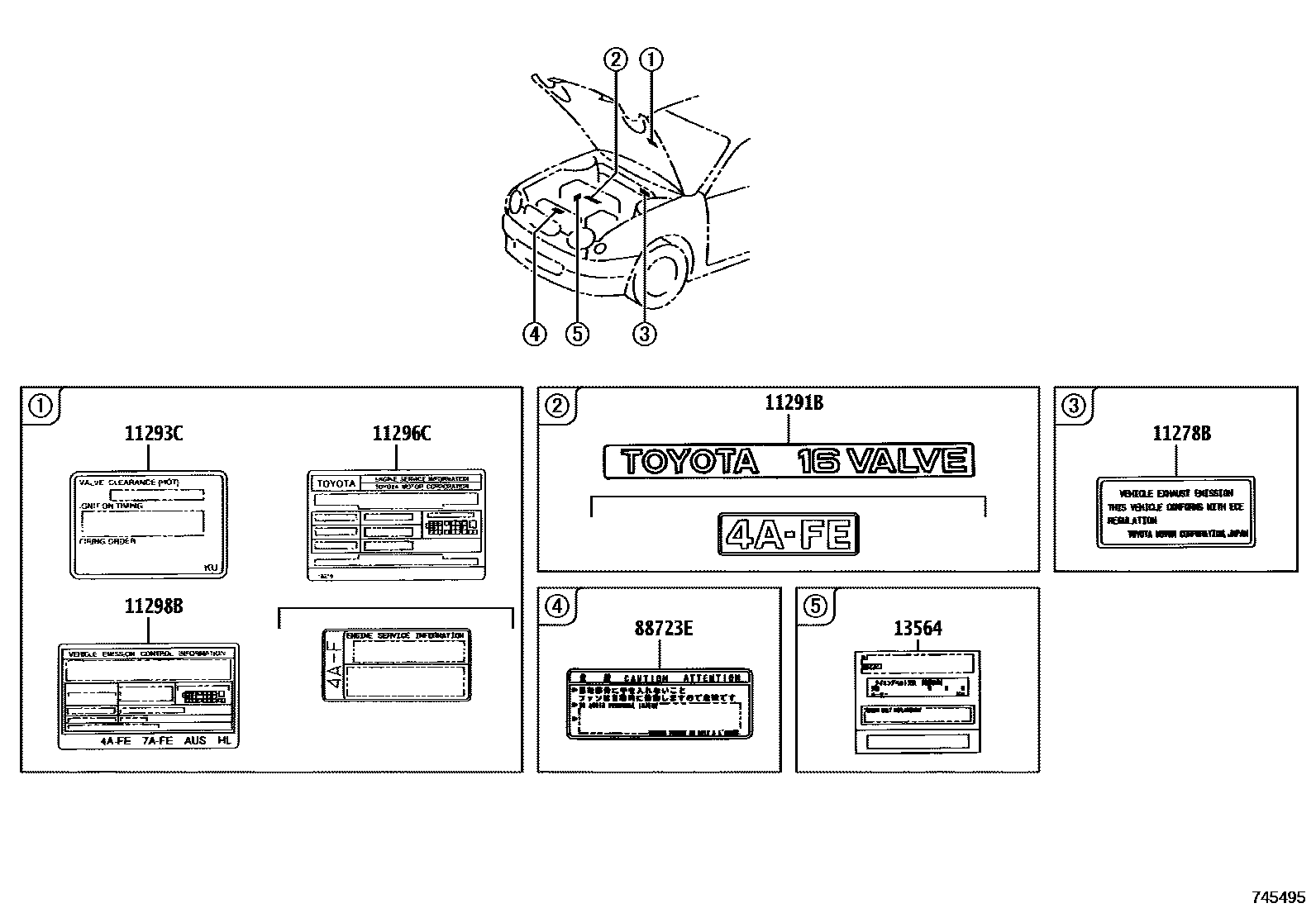

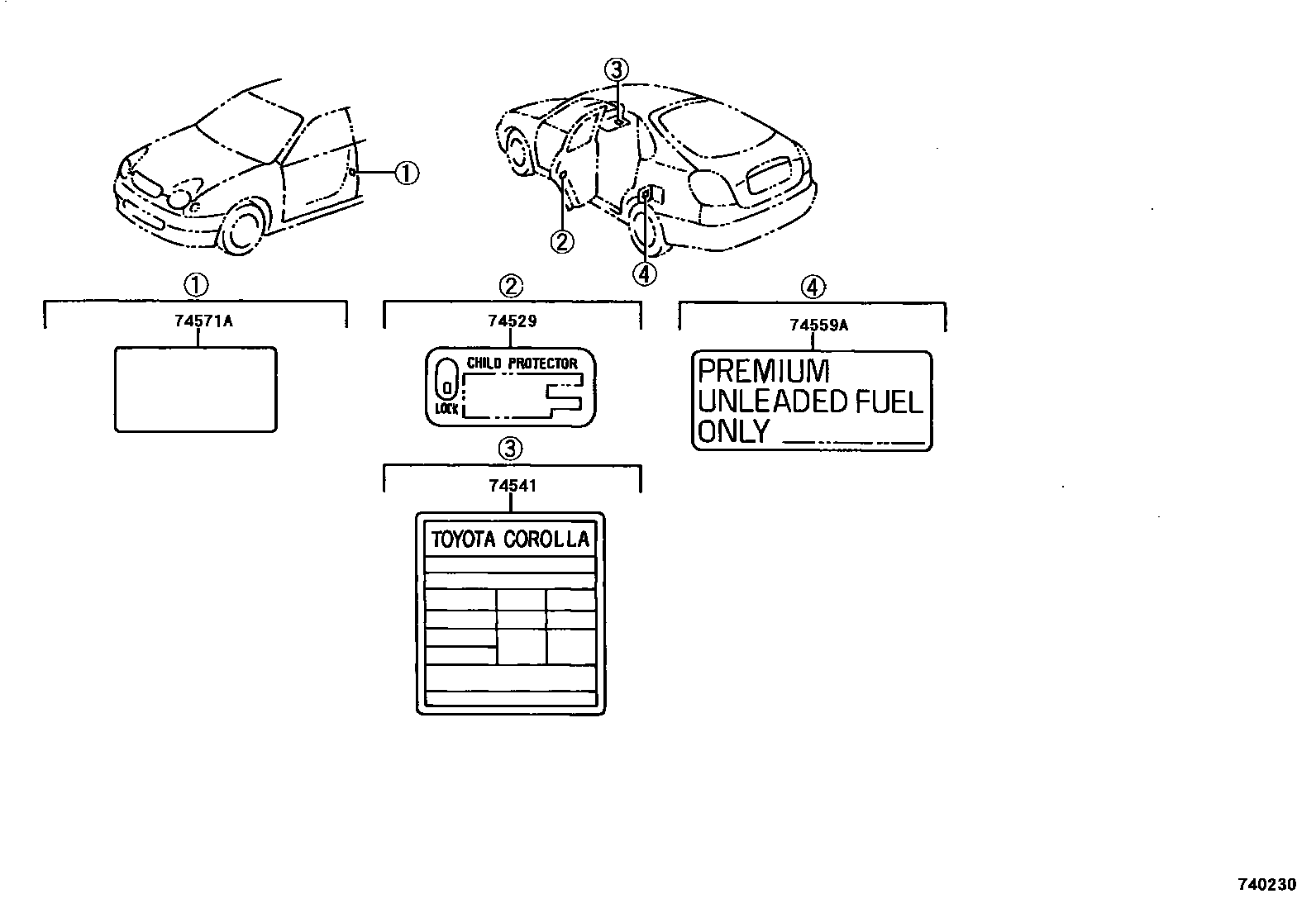

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-16040 · 11278-16050 |
| 11291B | Engine name plate | 11291-15120 · 11292-16020 |
| 11293C | Adjust specification information label | 11293-11230 · 11293-11231 |
| 11296C | Engine maintenance information label | 11296-16030 · 11296-16170 |
| 11298B | Emission Control Information Label | 11298-1D100 |
| 13564 | Timing belt replacement information label | 13564-10010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-1A540 · 42661-1E040 · 42661-1E060 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-50010 |
| 74571A | Label cover protective film | 74571-32010 |
| 88723E | Cooler maintenance warning label | 88723-20081 |
