Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

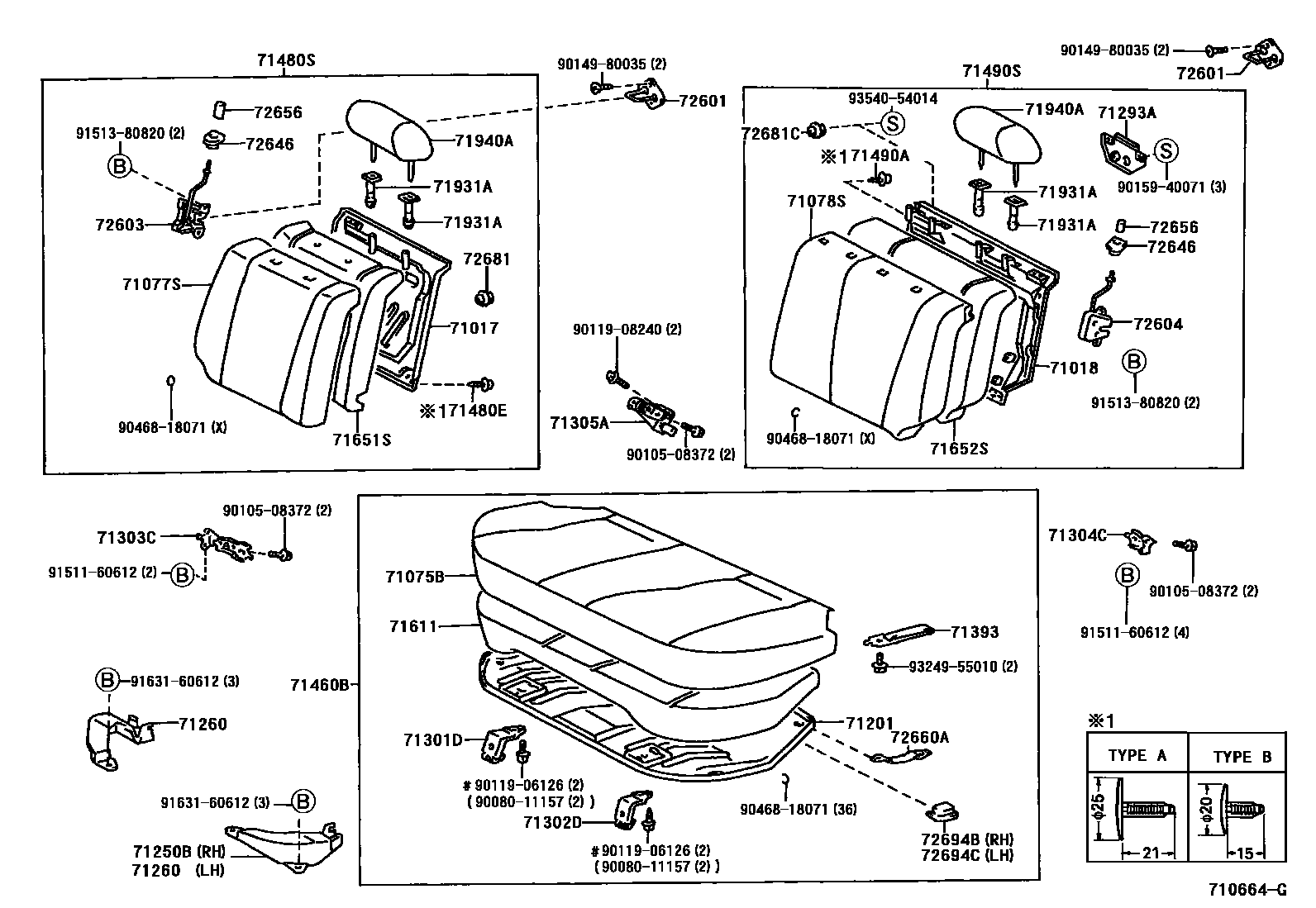

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12500 · 71017-12540 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12200 · 71018-12210 · 71018-12260 |
| 71201 | Rear seat cushion panel sub-assembly | 71201-13150 |
| 71250B | Right seat outer bracket assembly | 71250-13010 |
| 71260 | Left side seat outer bracket assembly | 71260-13010 |
| 71293A | Rear seat back panel | 71293-12030 |
| 71301D | Rear right seat hinge sub-assembly | 71301-13070 |
| 71302D | Rear left seat hinge sub-assembly | 71302-13030 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12130 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-12130 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12150 |
| 71611 | Rear seat cushion cushion | 71611-12640 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12730 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12570 · 71652-12580 · 71652-12600 · 71652-12640 |
| 72601 | Rear seat lock sub-assembly | 72601-12150 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12290 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12260 |
| 72660A | Rear seat cushion bracket assembly | 72660-12030 |
| 72694B | Rear right seat cushion lock cover | 72694-13010 |
| 72694C | Rear left seat cushion lock cover | 72694-13010 |
