Toyota COROLLA 锁芯组件 — Figure 6712

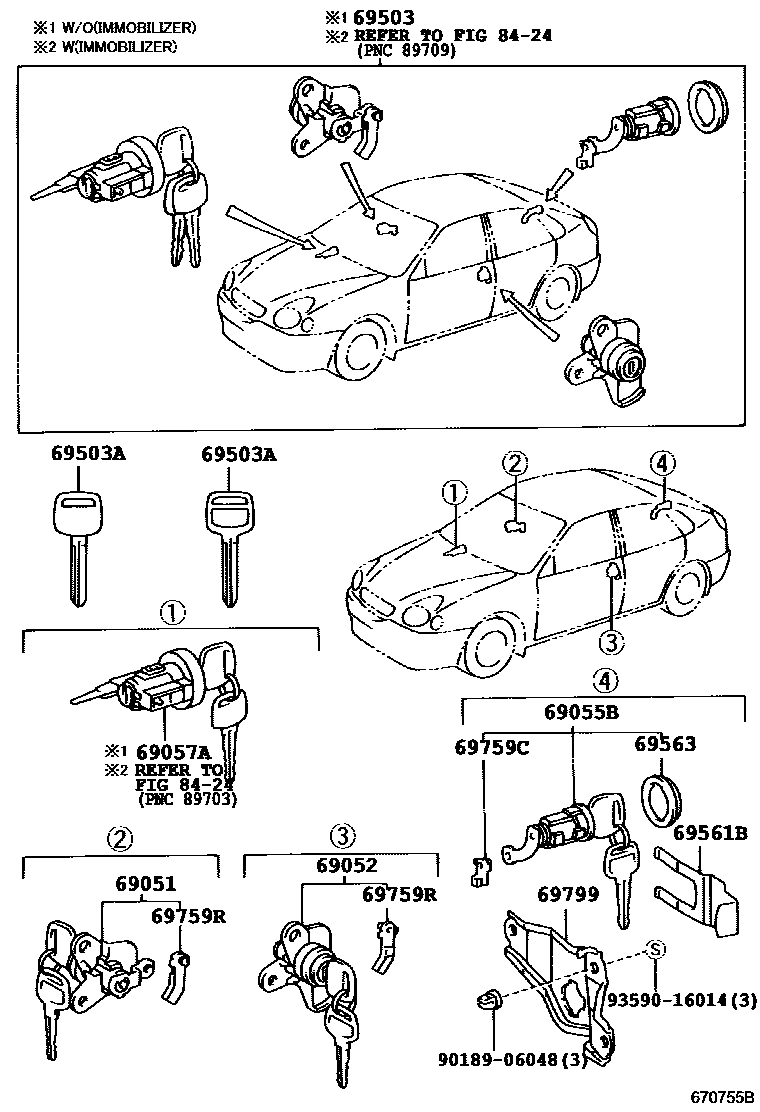

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12490 · 69051-12520 · 69051-12530 · 69051-12590 |
| 69052 | Left door lock cylinder and key assembly | 69052-12490 · 69052-12520 · 69052-12530 |
| 69055B | Rear door lock cylinder and key assembly | 69055-1A260 · 69055-1A270 · 69055-1A310 · 69055-1A360 · 69055-1A370 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12380 · 69057-12390 · 69057-12430 |
| 69503 | Door lock cylinder components | 69005-1E160 · 69005-1E320 · 69005-1E340 · 69005-1E370 · 69005-1E390 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 |
| 69561B | Rear door lock cylinder fixing parts | 69561-32050 |
| 69563 | Rear door lock cylinder gasket | 69563-20040 |
| 69759C | Back door lock cylinder buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
| 69799 | Back door lock cylinder bracket | 69799-12010 |
