Toyota COROLLA 背门锁和背门把手 — Figure 6709

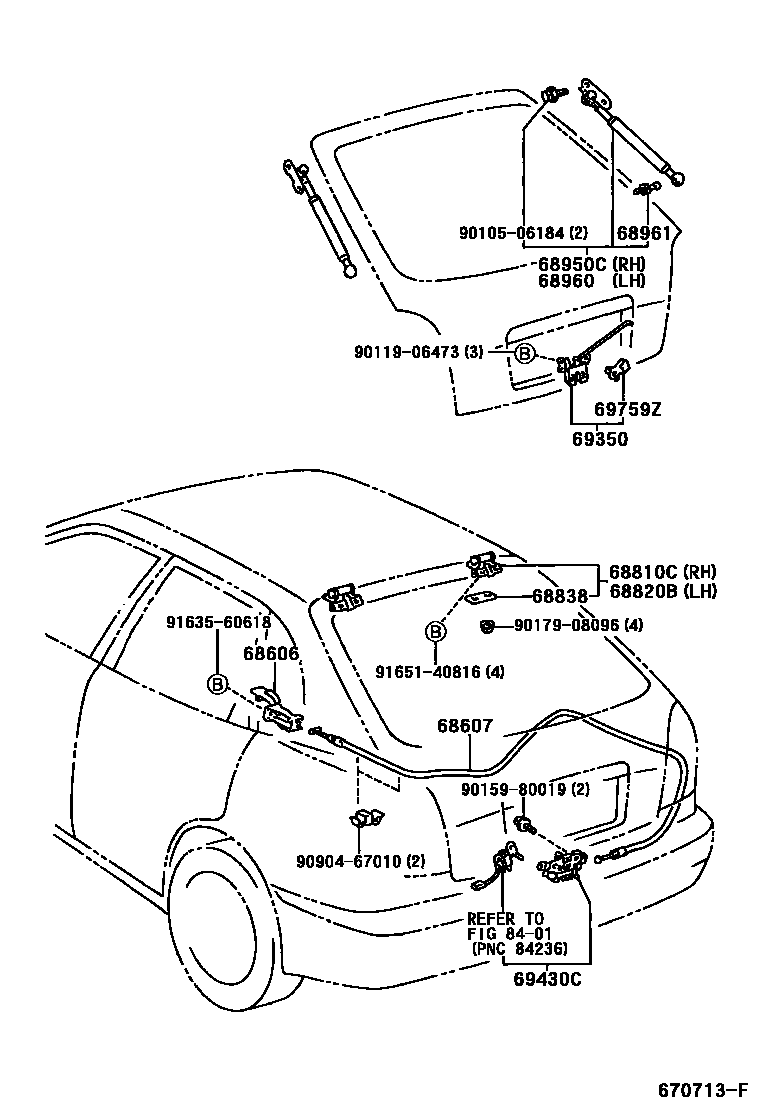

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-20091 · 64606-20161 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12740 · 64607-12750 |
| 68810C | Back door right hinge assembly | 68801-12100 |
| 68820B | Back door left hinge assembly | 68801-12100 |
| 68838 | Back door hinge No. 1 gasket | 68838-20060 |
| 68950C | Back door right support rod assembly | 68950-80054 · 68950-80055 |
| 68960 | Back door left support rod assembly | 68960-19675 · 68960-19685 |
| 68961 | Rear door support rod bolts | 68961-12050 |
| 69350 | Rear door lock assembly | 69350-12200 |
| 69430C | Back door lock assembly | 69430-12320 |
| 69759Z | Door lock control link buckle | 69759-20040 |
