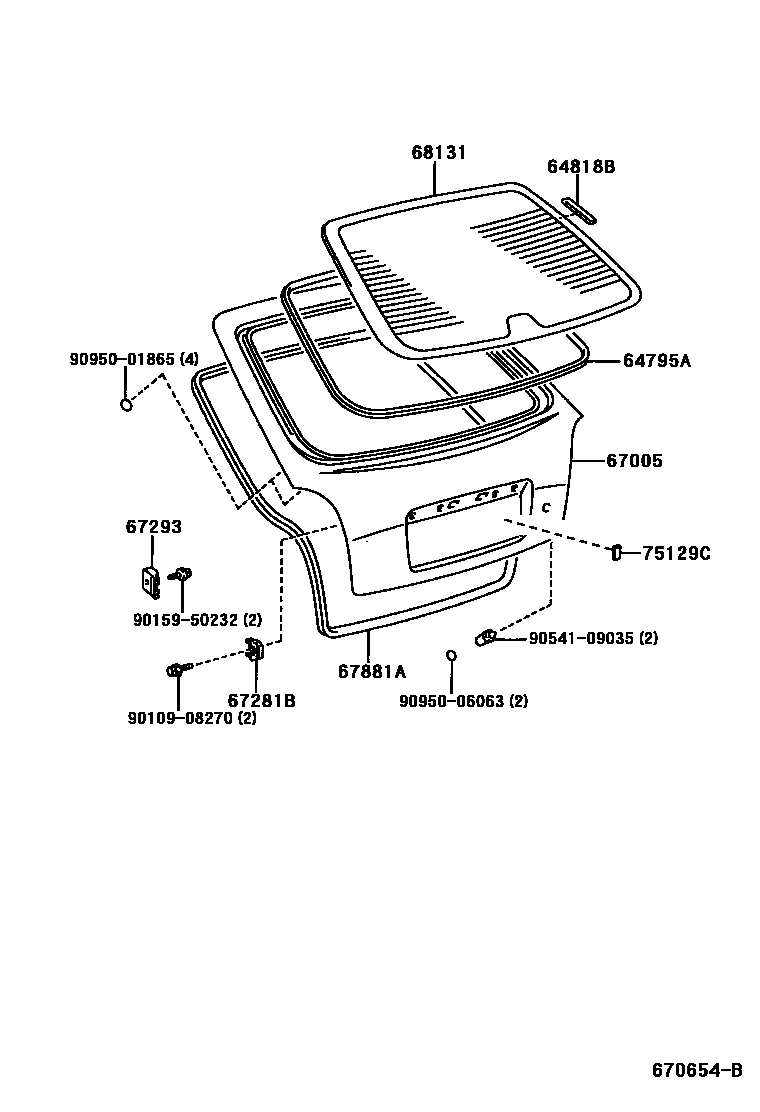

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64818-16010 |
| 67005 | Rear door panel sub-assembly | 67005-1A870 · 67005-1A880 |
| 67281B | Back door lower block | 67281-20040 |
| 67293 | Back door lower block cushion | 67293-12090 |
| 67881A | Back door seal | 67881-12260 |
| 68131 | back door glass | 68131-1A620 · 68131-1A630 · 68131-1A650 · 68131-1A660 |
| 75129C | rear license plate cushion | 75129-12010 |
