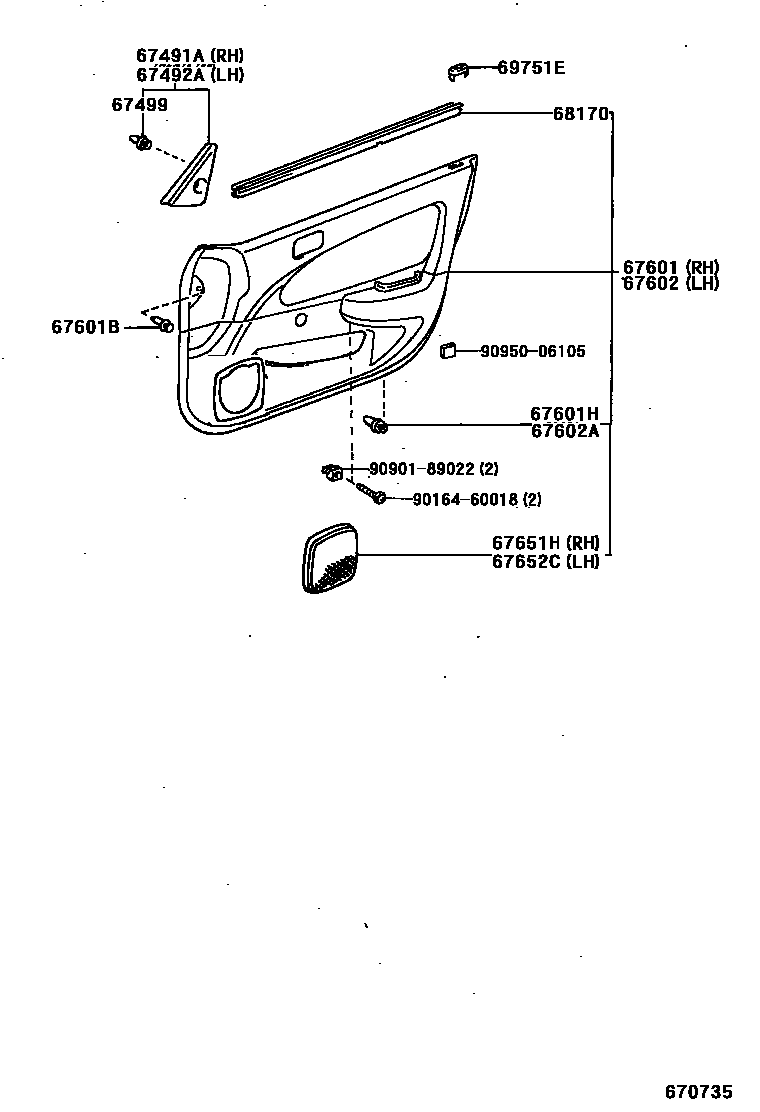

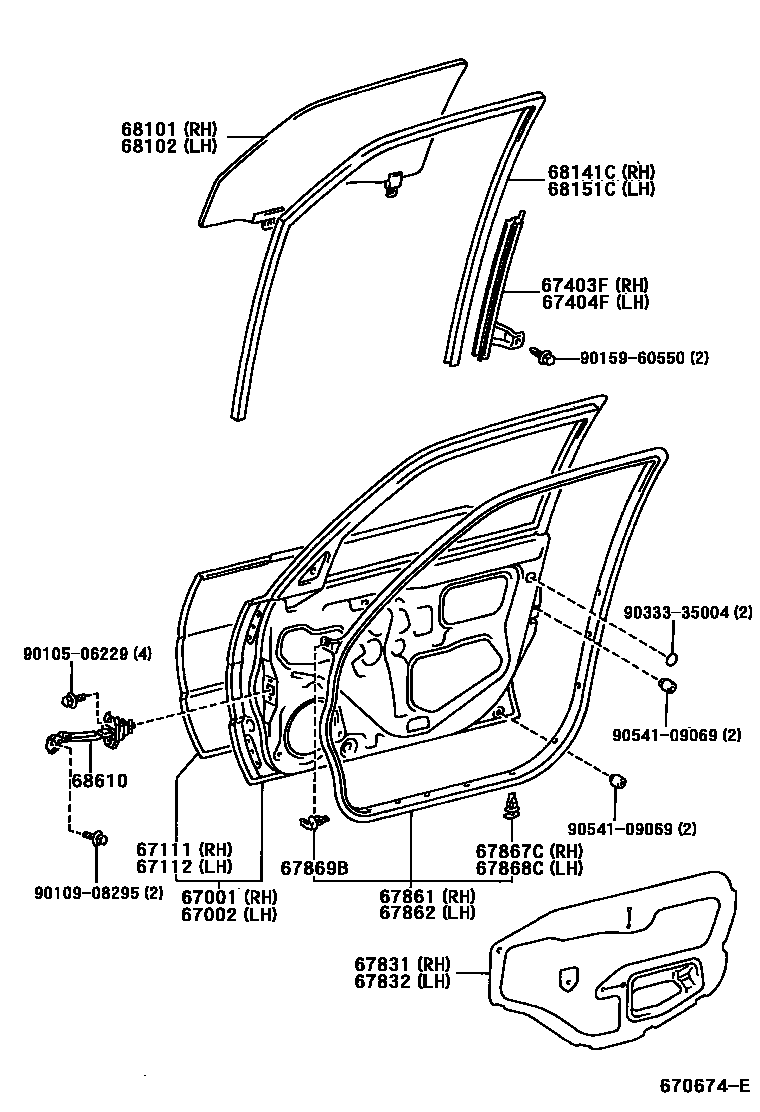

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-1A560 |
| 67002 | Left front door panel sub-assembly | 67002-1A540 |
| 67111 | Outer right front door panel | 67111-12600 |
| 67112 | Outer left front door panel | 67112-12590 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12210 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12210 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12400 · 67491-12430 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12400 · 67492-12430 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-30070 |
| 67601H | Right door trim panel fixing | 67771-12050 · 67771-16170 |
| 67602A | Left door trim panel fixing | 67771-12050 · 67771-16170 |
| 67831 | Right front door access hole cover | 67831-12550 |
| 67832 | Left front door access hole cover | 67832-12350 |
| 67861 | Right front door seal | 67861-12880 |
| 67862 | Left front door seal | 67862-12840 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-12050 |
| 68101 | Right front door glass sub-assembly | 68101-12820 |
| 68102 | Left front door glass sub-assembly | 68102-12820 |
| 68141C | Right front door glass lift channel | 68141-12470 |
| 68151C | Left front door glass lift channel | 68151-12180 |
| 68170 | Front door glass inner sealing strip assembly | 68171-12250 · 68171-12270 · 68172-12170 · 68172-12190 |
| 68610 | Front door opening limiter assembly | 68610-02040 · 68610-12150 · 68620-02040 · 68620-12060 |
