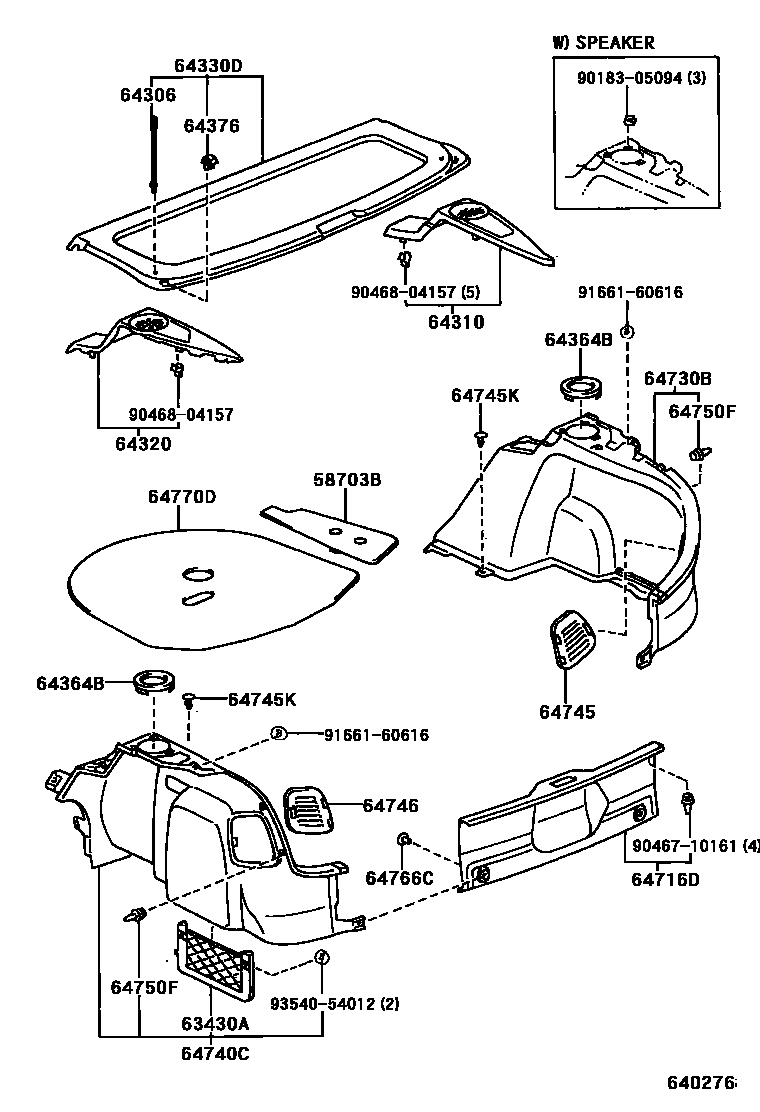

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58703B | Trunk door right side decorative cover sub-assembly | 58703-12090 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-10060 |
| 64364B | No. 1 rear speaker grille cover | 64364-12040 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-12020 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64770D | Spare tire cover assembly | 64770-12210 |
