Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

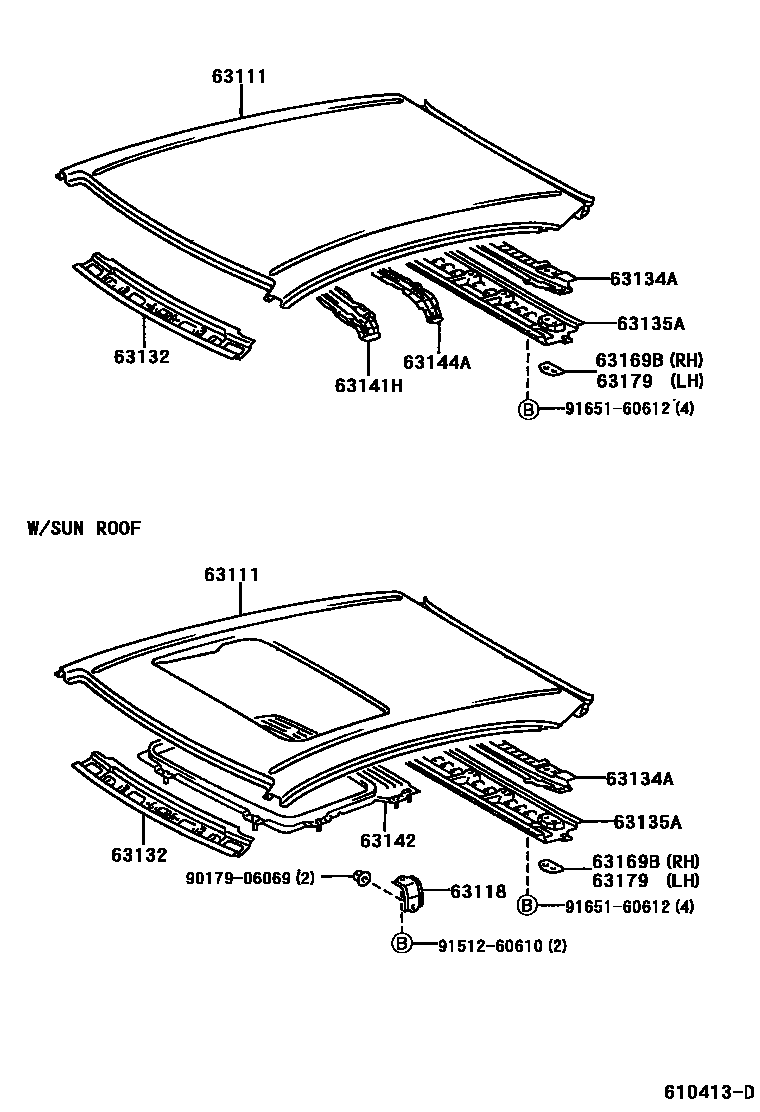

| 63111 | roof panel | 63111-12720 · 63111-12730 |
| 63118 | Right roof panel bracket | 63118-12080 |
| 63132 | Windshield inner roof panel | 63132-12210 |
| 63134A | Opening frame on back door | 63134-12180 |
| 63135A | Opening frame under rear door | 63135-12120 |
| 63141H | Center roof panel reinforcement | 63141-12200 |
| 63142 | No. 2 roof panel reinforcement | 63142-12080 |
| 63144A | No. 4 roof panel reinforcement | 63144-12070 |
| 63169B | Right roof panel reinforcement panel | 63169-35010 |
| 63179 | Left roof panel reinforcement panel | 63179-35010 |

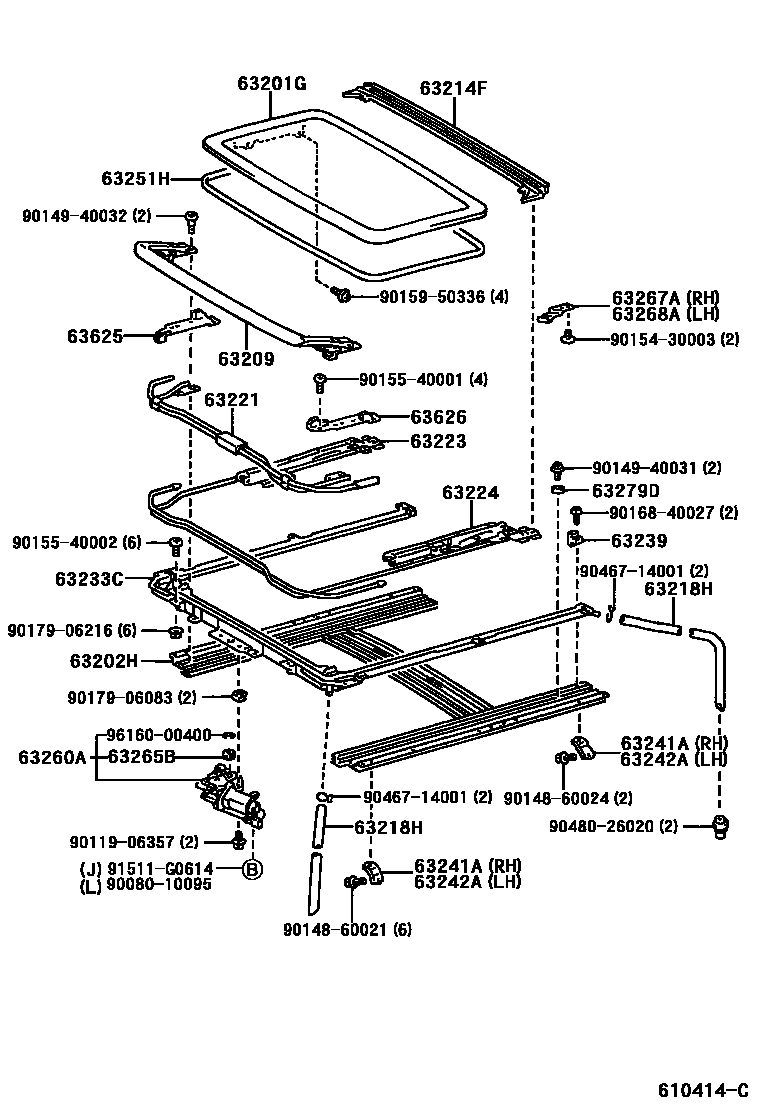

| 63201G | Sliding sunroof glass sub-assembly | 63204-12080 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-12030 |
| 63209 | Roof deflector sub-assembly | 63209-12130 |
| 63214F | Roof rear drain channel | 63214-12060 |
| 63218H | Sliding skylight drain hose | 63249-12280 · 63249-12300 |
| 63221 | Sliding sunroof cable duct | 63221-12080 |
| 63223 | Right sliding sunroof transmission cable | 63223-12130 |
| 63224 | Left sliding sunroof transmission cable | 63224-12120 |
| 63233C | Sliding skylight shelf | 63233-12080 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-12100 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-12100 |
| 63251H | Sliding skylight seal | 63251-12160 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12100 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-12040 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-12040 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63625 | Right sliding sunroof guide block | 63625-12040 |
| 63626 | Left sliding sunroof guide block | 63626-12040 |
