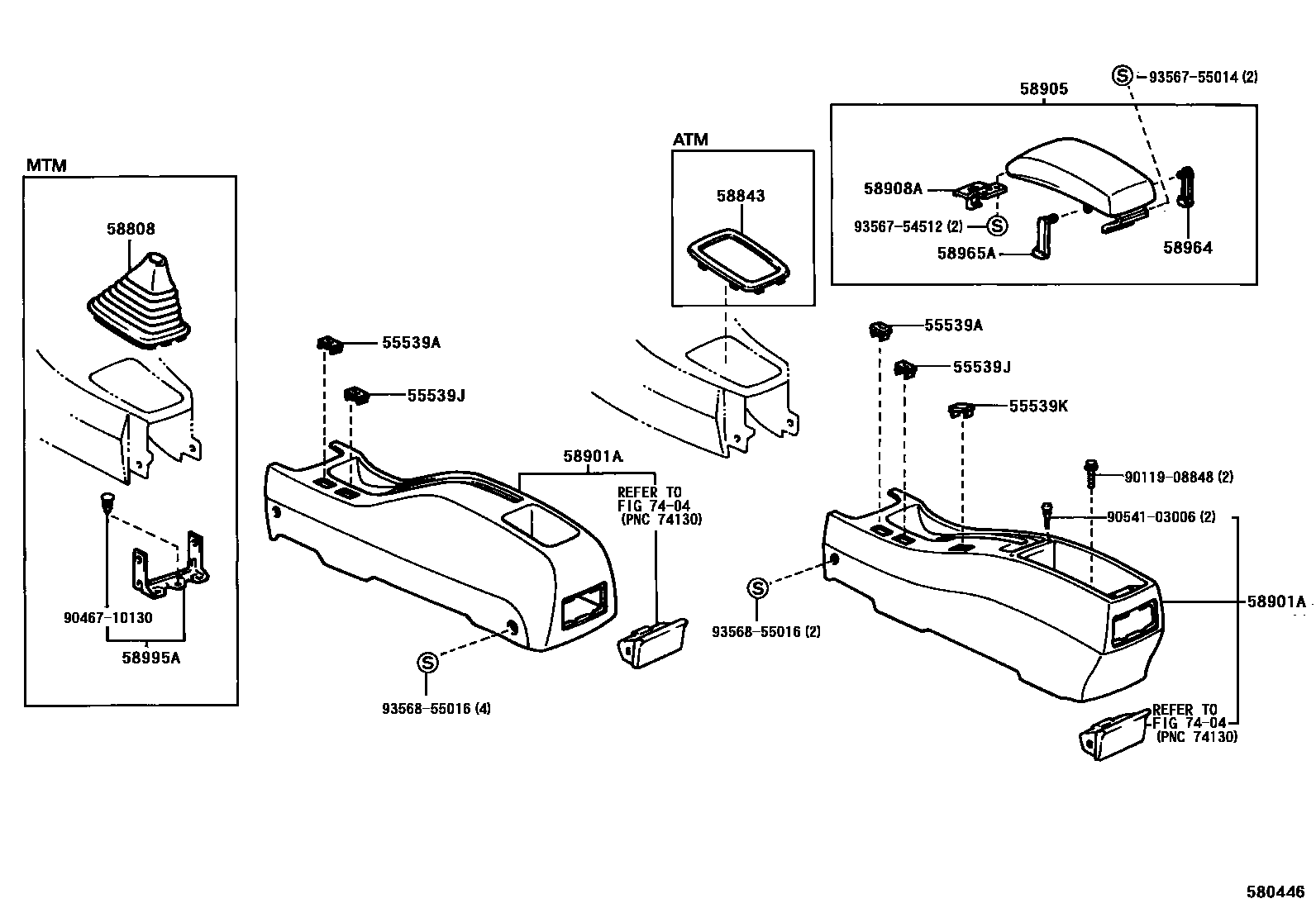

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58908A | Armrest box lid lock assembly | 58908-32020 · 58908-32040 |
| 58964 | Armrest box cover No. 1 stop | 58964-12040 |
| 58965A | Armrest box cover No. 2 stopper | 58965-12040 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-12080 |
