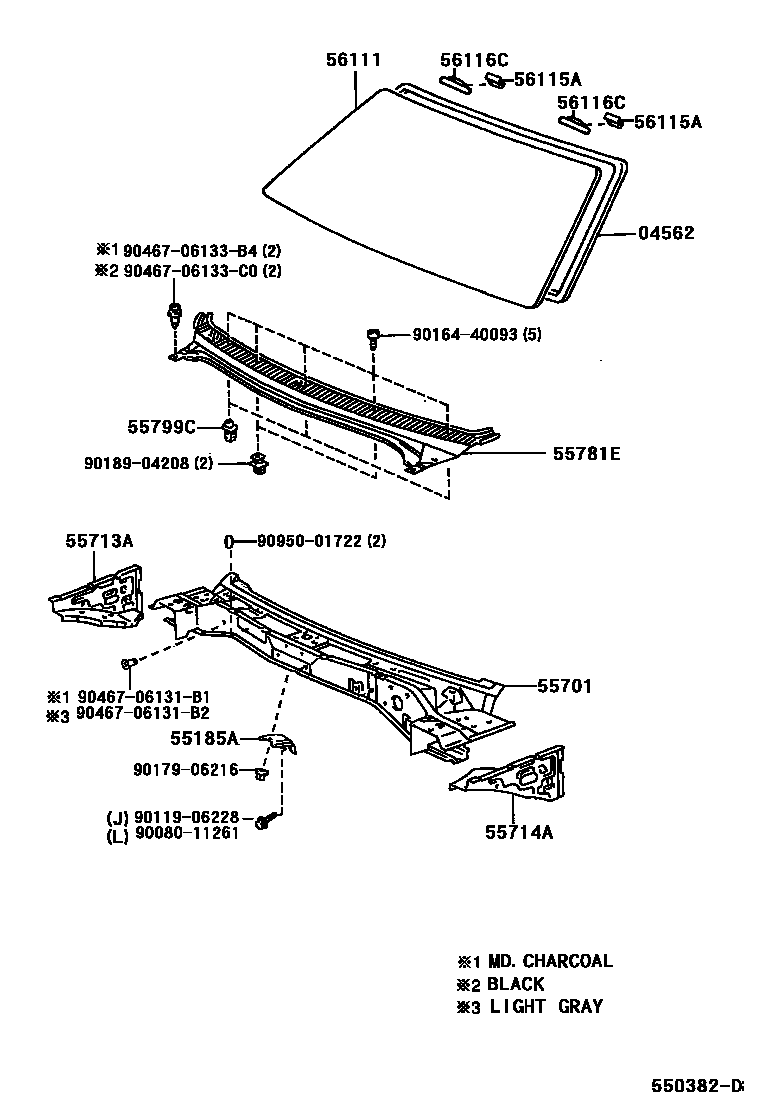

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55185A | cowl panel to cowl bracket | 55185-12010 |
| 55701 | Front apron sub-assembly | 55700-1A120 · 55700-1A121 · 55700-1A240 · 55700-1A250 · 55700-1A300 · 55700-1A301 · 55700-1A310 · 55700-1A311 · 55700-1A900 · 55700-1A902 |
| 55713A | Right front wall upper side panel | 55713-12081 |
| 55714A | Left front wall upper side panel | 55714-12081 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-12160 · 55708-12200 |
| 55799C | Ventilation grille clips on front apron | 55799-12010 |
| 56111 | windshield | 56111-1A690 · 56111-1A790 |
| 56115A | Windshield block No. 1 | 56115-12050 |
| 56116C | Windshield block 2 | 56116-22050 |
