Toyota COROLLA 仪表板和手套箱 — Figure 5501

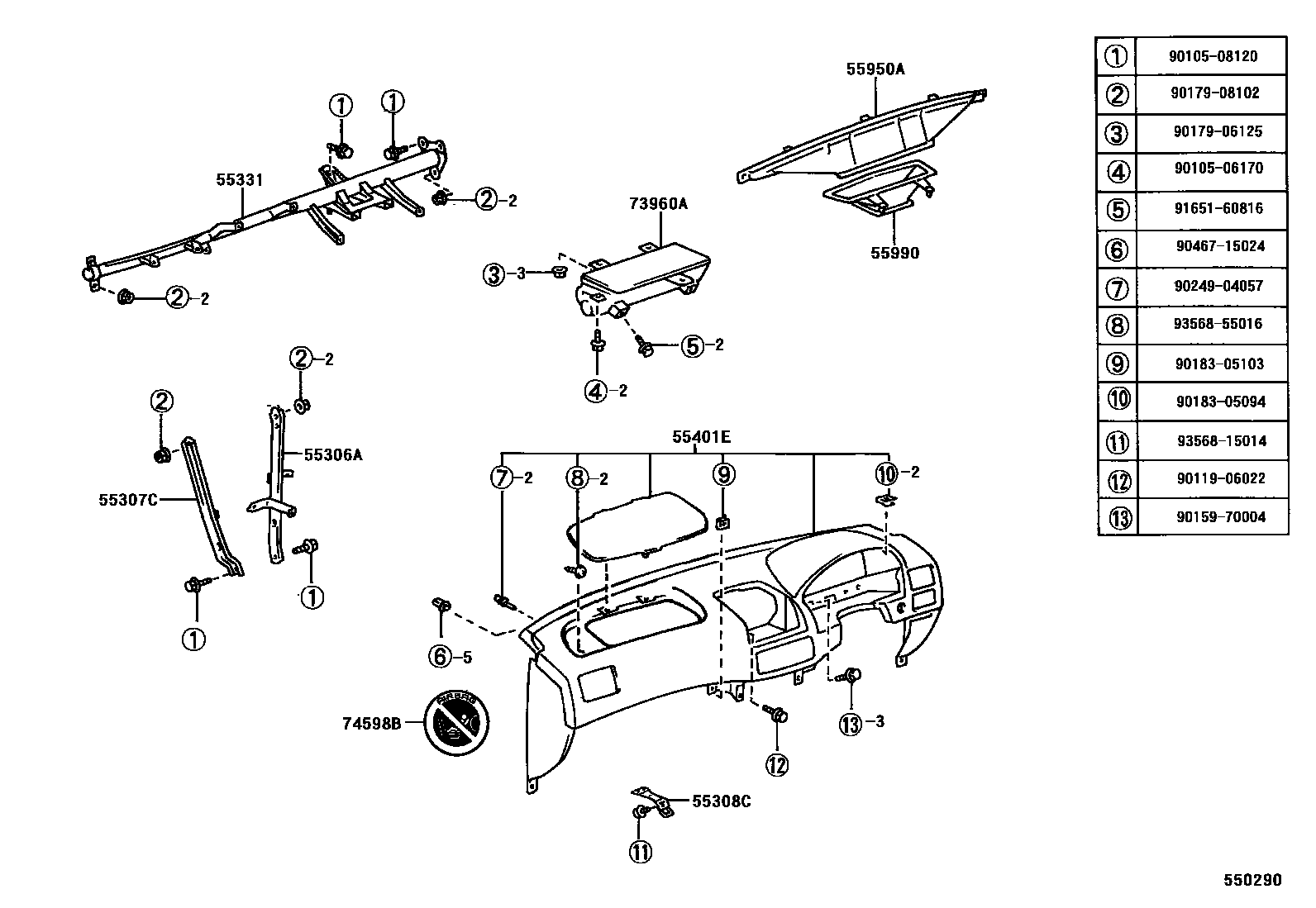

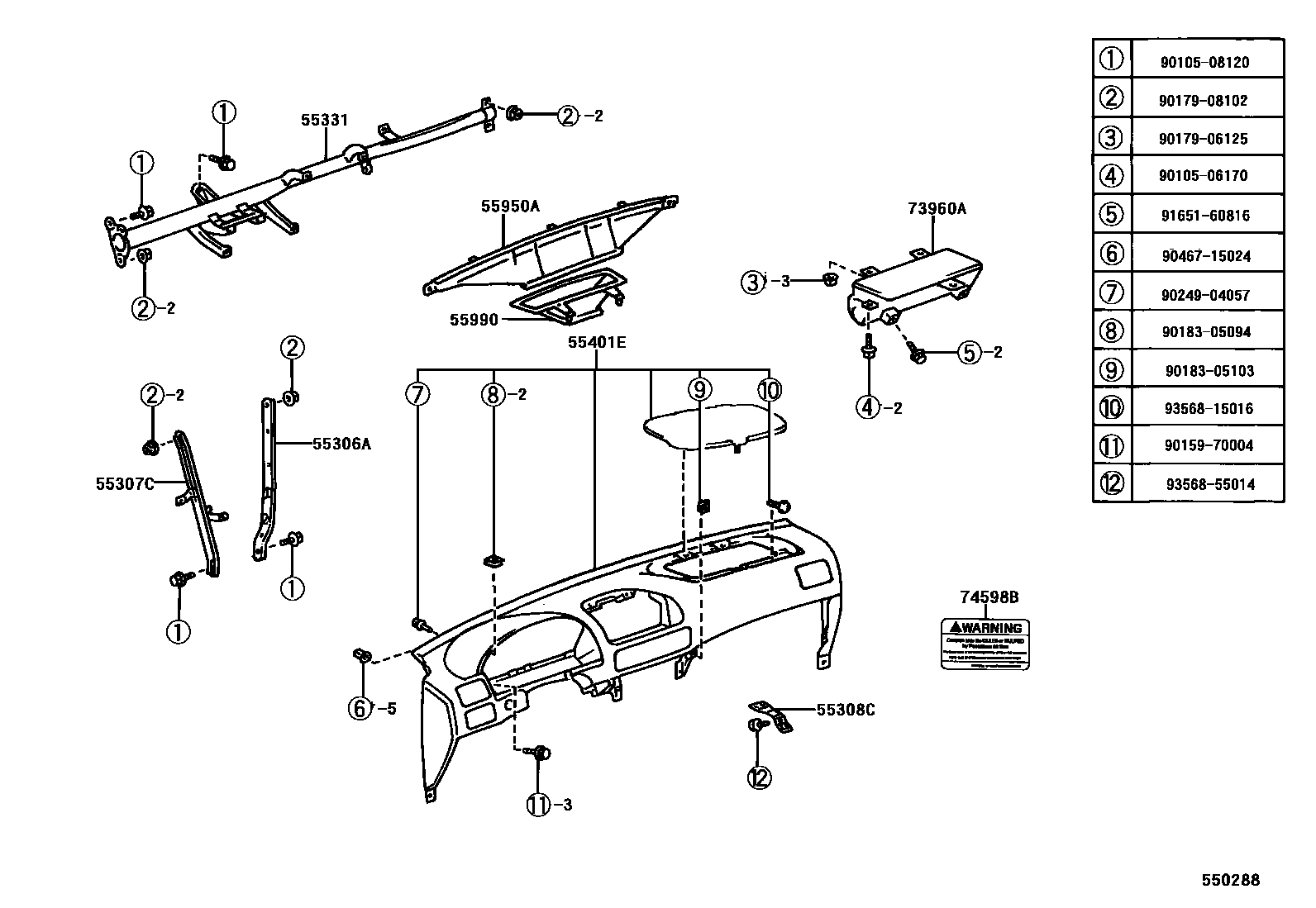

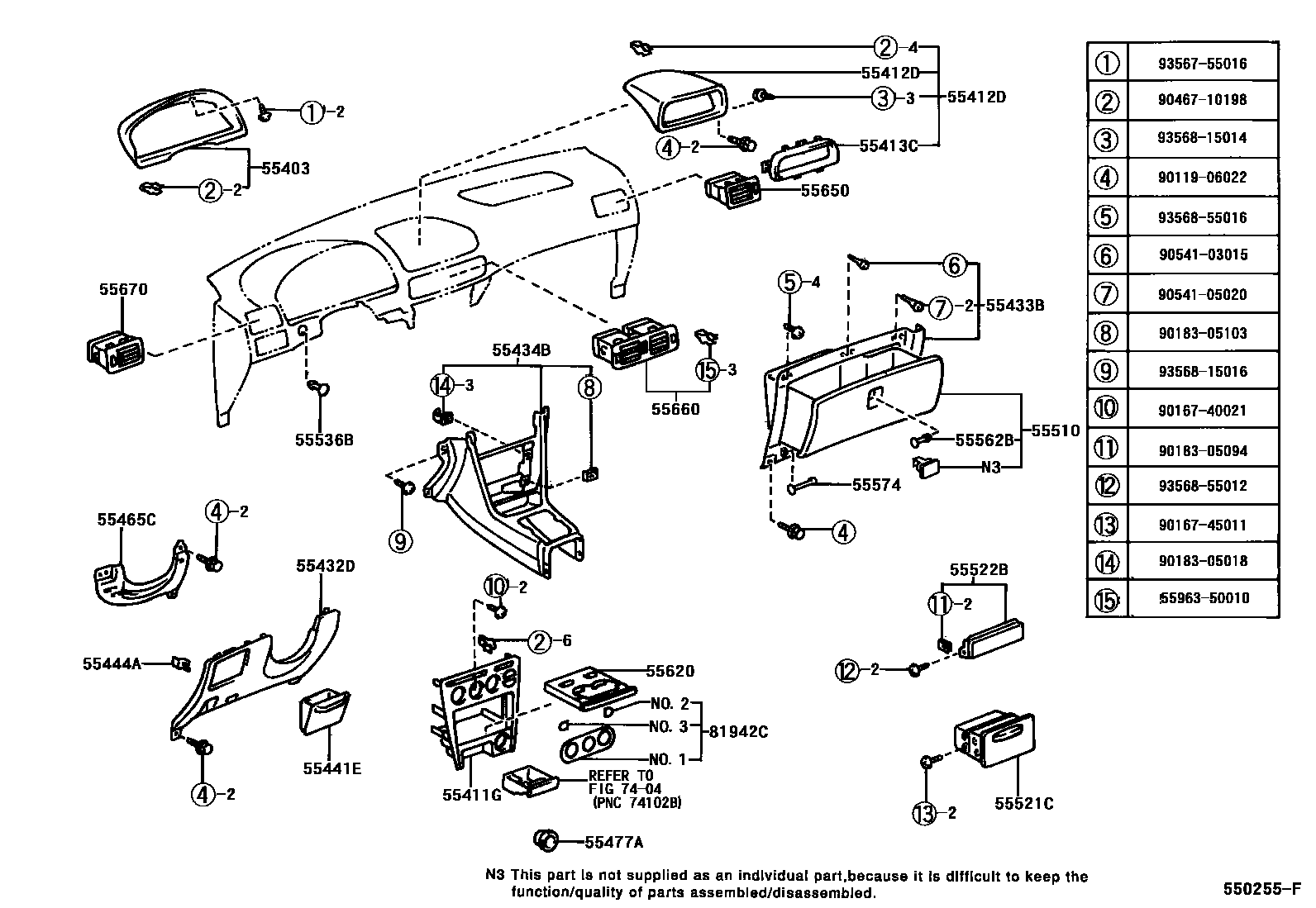

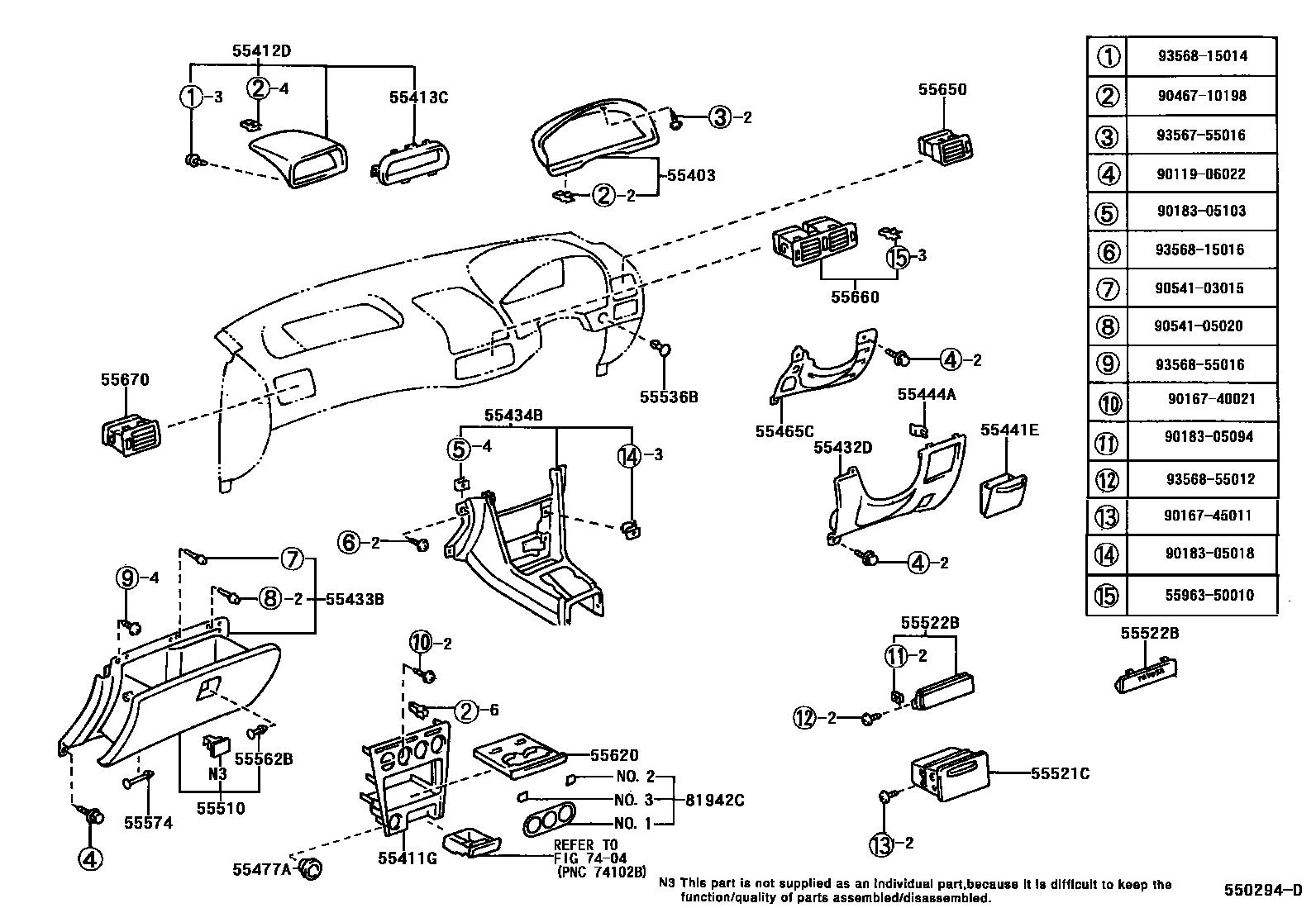

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12260 · 55306-12290 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12270 · 55307-12280 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12260 |
| 55331 | Dashboard reinforcement | 55330-12340 · 55330-12341 · 55330-12370 · 55330-12371 |
| 55403 | Instrument cover sub-assembly | 55403-12010 · 55403-12020 |
| 55413C | Center instrument cluster No. 2 decorative panel | 55413-12440 · 55413-12470 |
| 55444A | Dashboard storage box spring | 55444-12050 |
| 55465C | Dashboard lower left pad insert | 55465-12060 · 55465-12070 |
| 55477A | Cigarette lighter hole frame | 55477-33010 |
| 55522B | Radio tuner opening cover | 55522-32010 |
| 55562B | Glove box cover lock pin | 55562-10010 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55950A | Defroster nozzle assembly | 55950-12220 · 55950-12230 |
| 55990 | Central defroster nozzle assembly | 55990-12040 · 55990-12050 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12020 · 73960-12090 |
| 74598B | Passenger air bag warning label | 74598-20010 |
