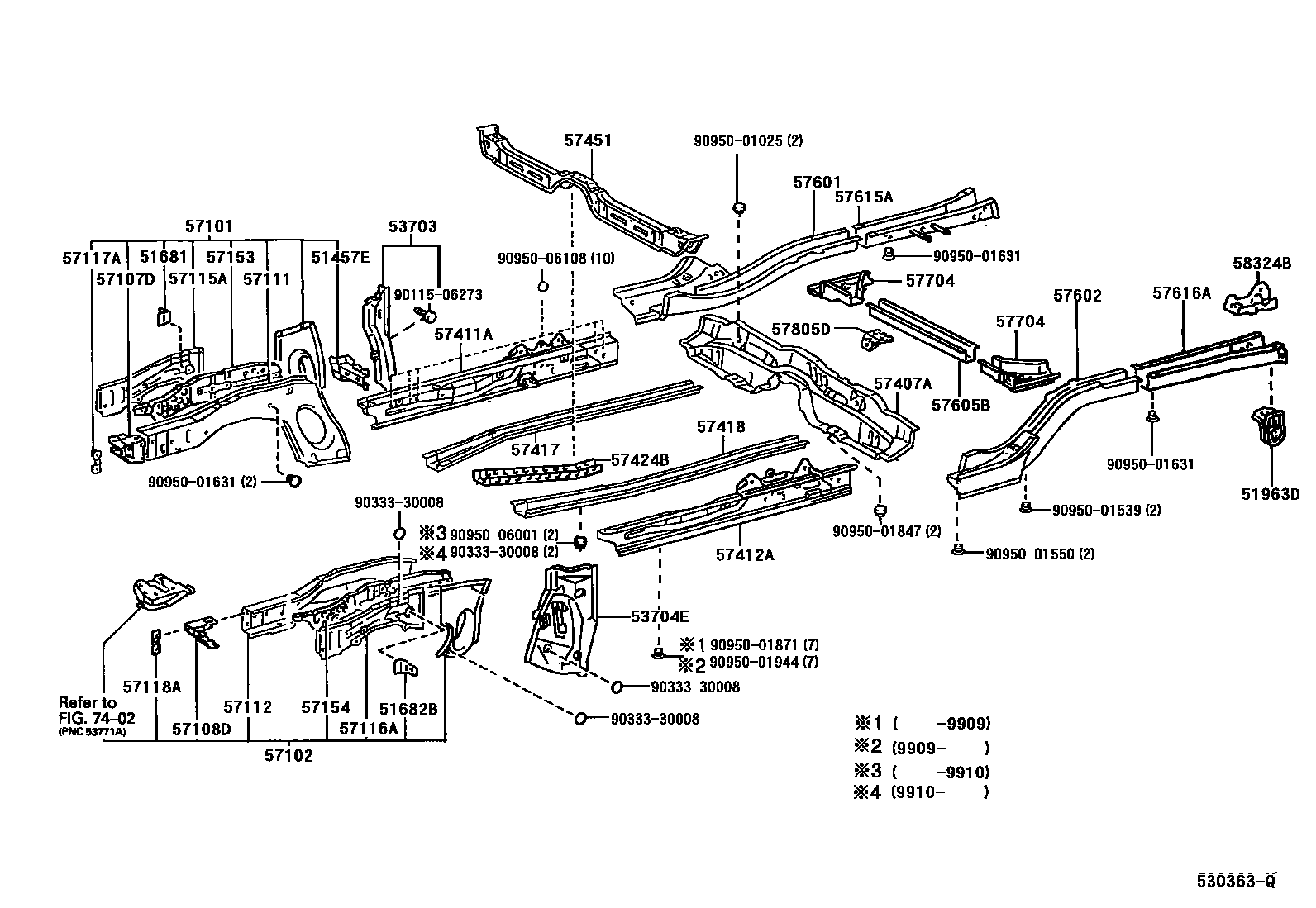

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51457E | Bracket from front longitudinal beam to front suspension cross member | 51457-12020 |
| 51681 | Flexible hose bracket | 51681-12050 |
| 51682B | Left side flexible hose bracket | 51682-12060 |
| 51963D | Left rear transport hook | 51096-12040 |
| 53703 | Right front fender, rear fender sub-assembly | 53703-12040 · 53703-12060 |
| 53704E | Left front fender rear fender sub-assembly | 53704-12020 · 53704-12090 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12930 · 57101-12931 · 57101-1A906 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12939 · 57102-1A906 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57125-13010 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57126-13010 |
| 57111 | Right front longitudinal beam | 57111-12201 |
| 57112 | Left front longitudinal beam | 57112-12142 |
| 57115A | Right front longitudinal beam outer panel | 57115-12060 |
| 57116A | Left front longitudinal beam outer panel | 57116-12060 |
| 57117A | Front bumper mounting reinforcement | 57117-12110 |
| 57118A | Install reinforcement on the left side of the front bumper | 57117-12110 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-12050 · 57016-12060 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-13010 |
| 57407A | Center floor beam sub-assembly | 57407-12070 |
| 57411A | Floor right inner longitudinal beam | 57401-12530 |
| 57412A | Floor left inner longitudinal beam | 57402-12530 |
| 57417 | Front floor lower right reinforcement | 57417-13010 |
| 57418 | Front floor lower left reinforcement | 57418-13010 |
| 57424B | Left inner reinforcement under front floor | 57424-12020 |
| 57451 | front floor cross member | 57451-12152 · 57451-12153 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-1A901 · 57601-1A903 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-1A901 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12150 |
| 57615A | Rear floor right rear longitudinal member | 57615-12902 |
| 57616A | Rear floor left rear longitudinal member | 57616-12904 |
| 57704 | Rear suspension spring bracket sub-assembly | 57695-12030 · 57696-12030 · 57703-12080 · 57704-12100 |
| 57805D | Rear No. 1 seat support No. 1 reinforcement assembly | 57805-12060 |
| 58324B | Rear bumper arm left bracket reinforcement | 58324-12070 |
