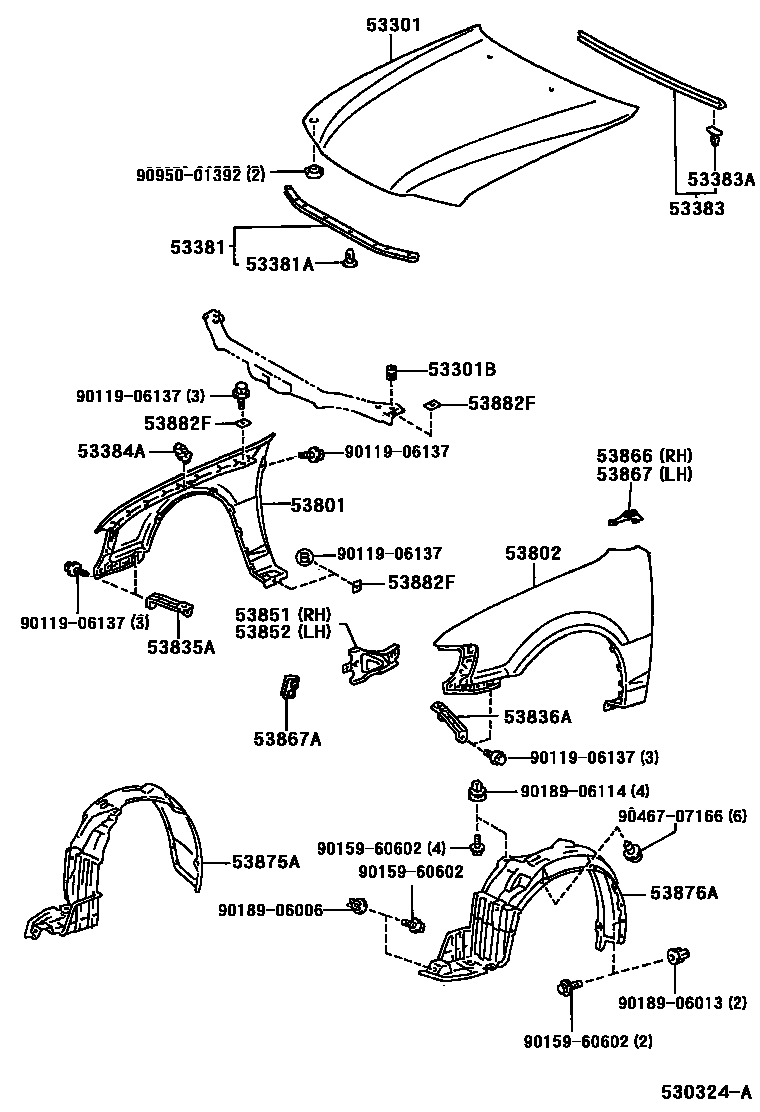

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-12820 · 53301-12860 |
| 53301B | engine cover cushion | 90541-15021 |
| 53381 | Engine cover to radiator bracket seal | 53381-12170 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-12110 · 53383-12130 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 53384A | fender to engine cover buffer block | 53384-20060 |
| 53801 | Right front fender sub-assembly | 53811-1H080 · 53811-1H110 |
| 53802 | Left front fender sub-assembly | 53812-1E850 · 53812-1E880 |
| 53835A | Right front fender to fender stay | 53835-12110 |
| 53836A | Left front fender to fender stay | 53836-12070 |
| 53851 | Right front fender to radiator bracket | 53851-12050 · 53851-12060 |
| 53852 | Left front fender to radiator bracket | 53852-12050 · 53852-12060 |
| 53866 | Right front fender to cowl side seal | 53866-12010 |
| 53867 | Left front fender to cowl side seal | 53867-12010 |
| 53867A | Front fender fixings | 53867-12030 |
| 53875A | Right front fender lining | 53875-12260 · 53875-12270 |
| 53876A | Left front fender lining | 53876-12250 · 53876-12260 |
| 53882F | front fender seal | 53882-16030 |
