VOCR EPC

Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 2 PNC and OE references.

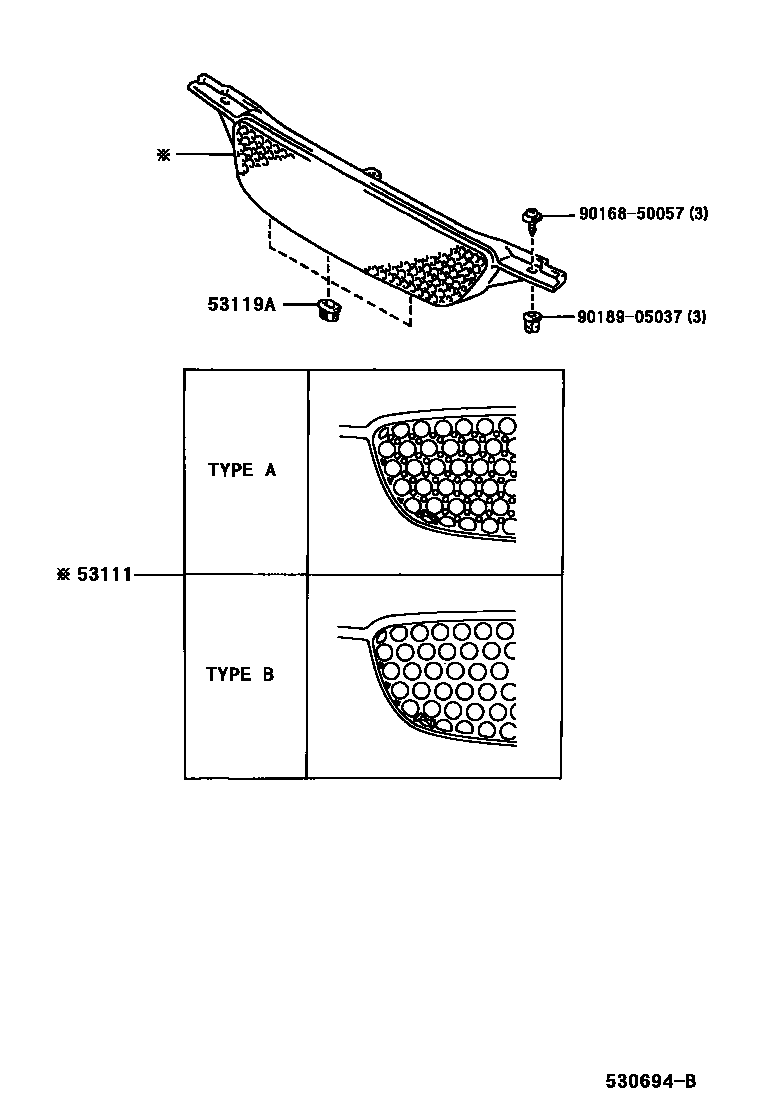

Toyota COROLLA radiator grille EPC diagram — 530694B
radiator grille — 530694B (199704 – 199910)

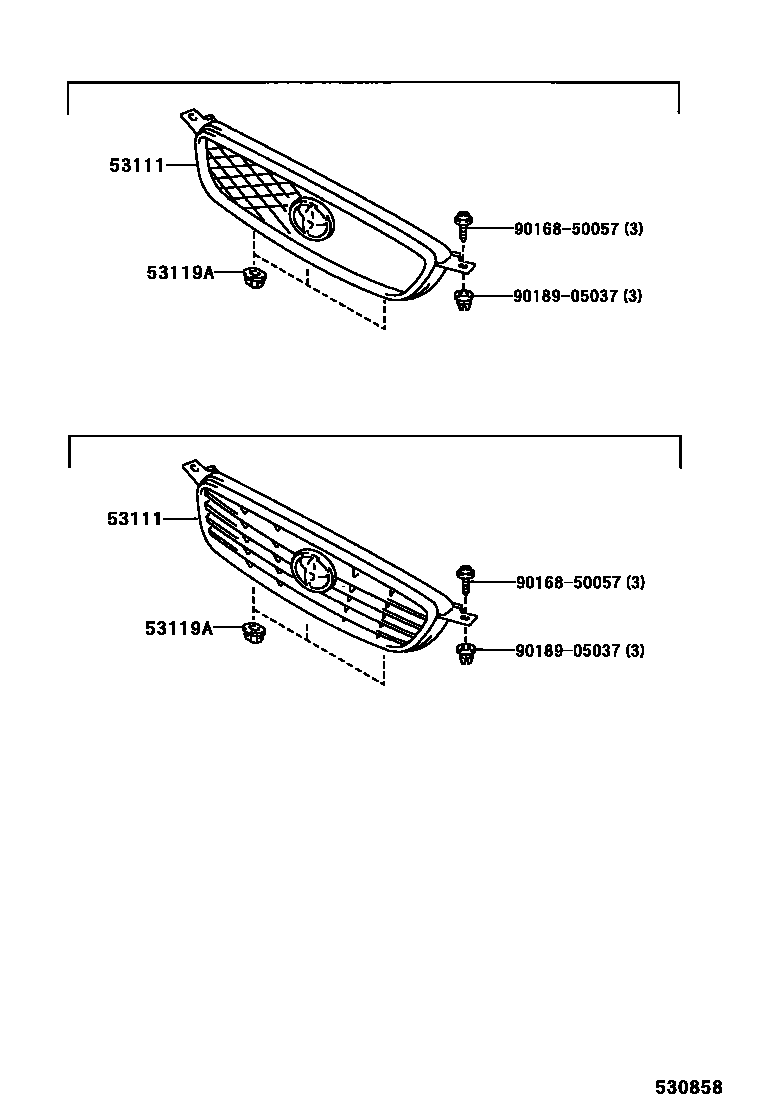

Toyota COROLLA radiator grille EPC diagram — 530858
radiator grille — 530858 (199910 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-1A300 · 53111-1A310 · 53111-1A311 · 53111-1A430 · 53111-1A440
53119ARadiator grille to front fender bumper53119-12110
