Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

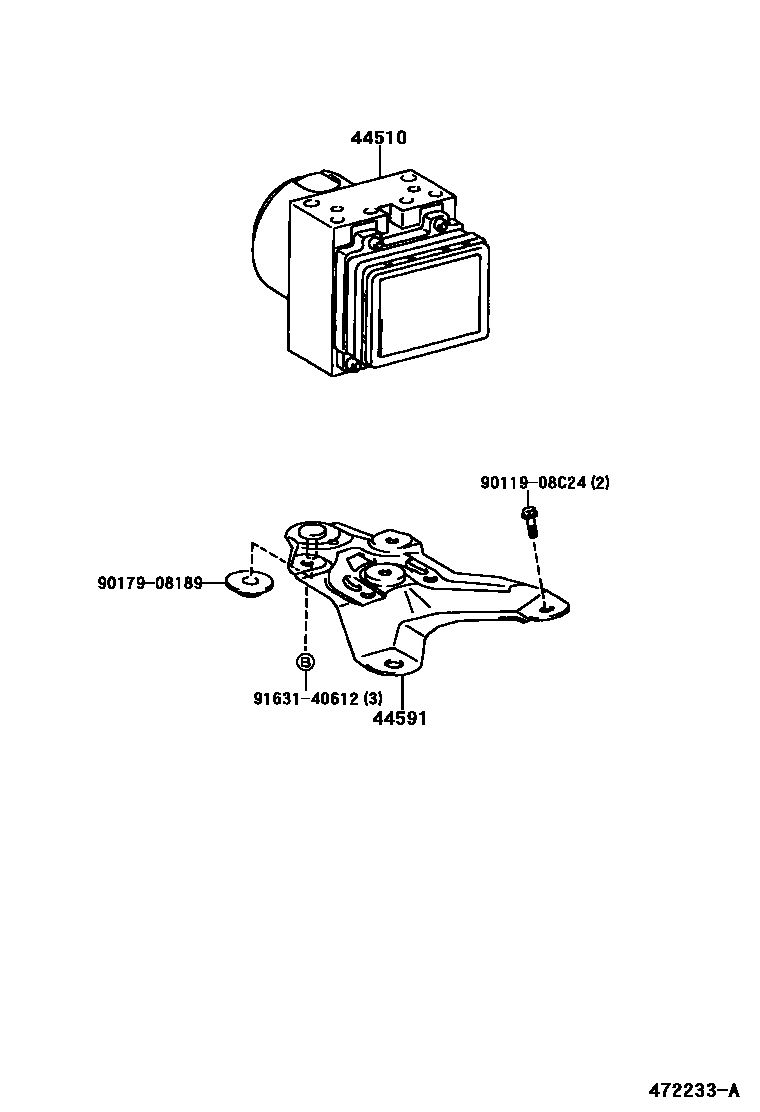

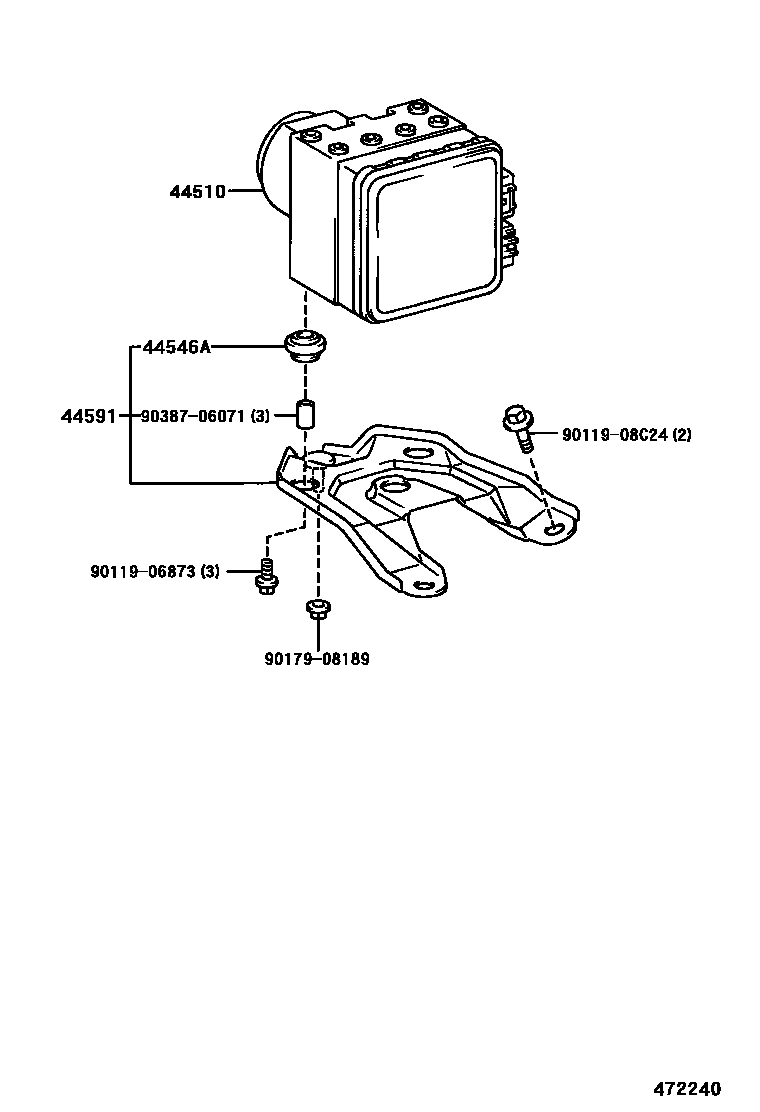

| 44510 | brake actuator assembly | 44050-12040 · 44050-12060 · 44050-12090 · 44050-12140 · 44510-12190 |
| 44546A | Brake actuator bolt cushion | 44546-12100 |
| 44591 | No. 1 brake actuator bracket | 44590-12030 · 44590-12040 · 44591-12050 |
| 47150 | Proportional valve assembly | 47150-12230 · 47150-12270 · 47150-16060 · 47150-44020 |
| 47159 | Proportional valve bracket | 47159-12070 |

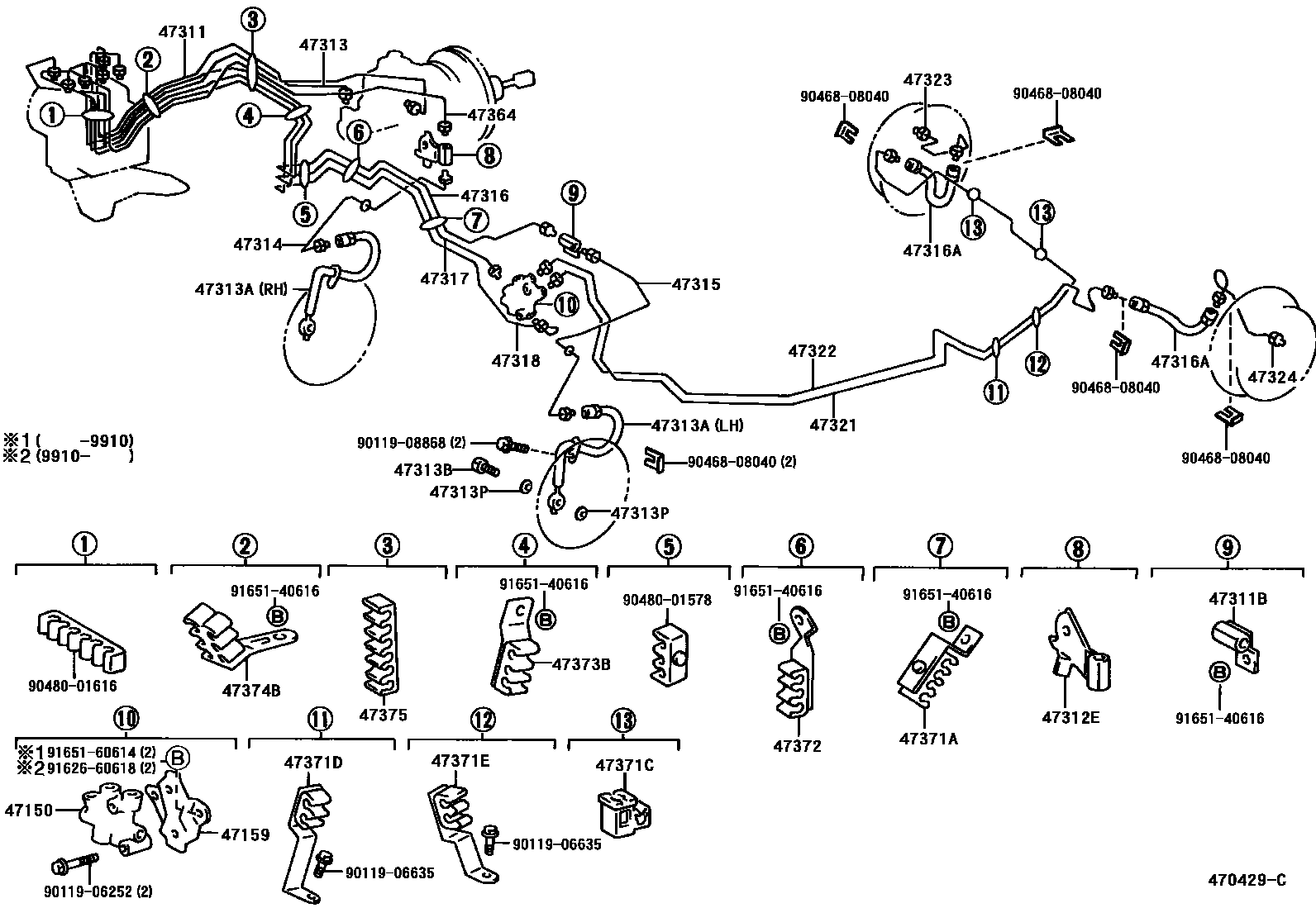

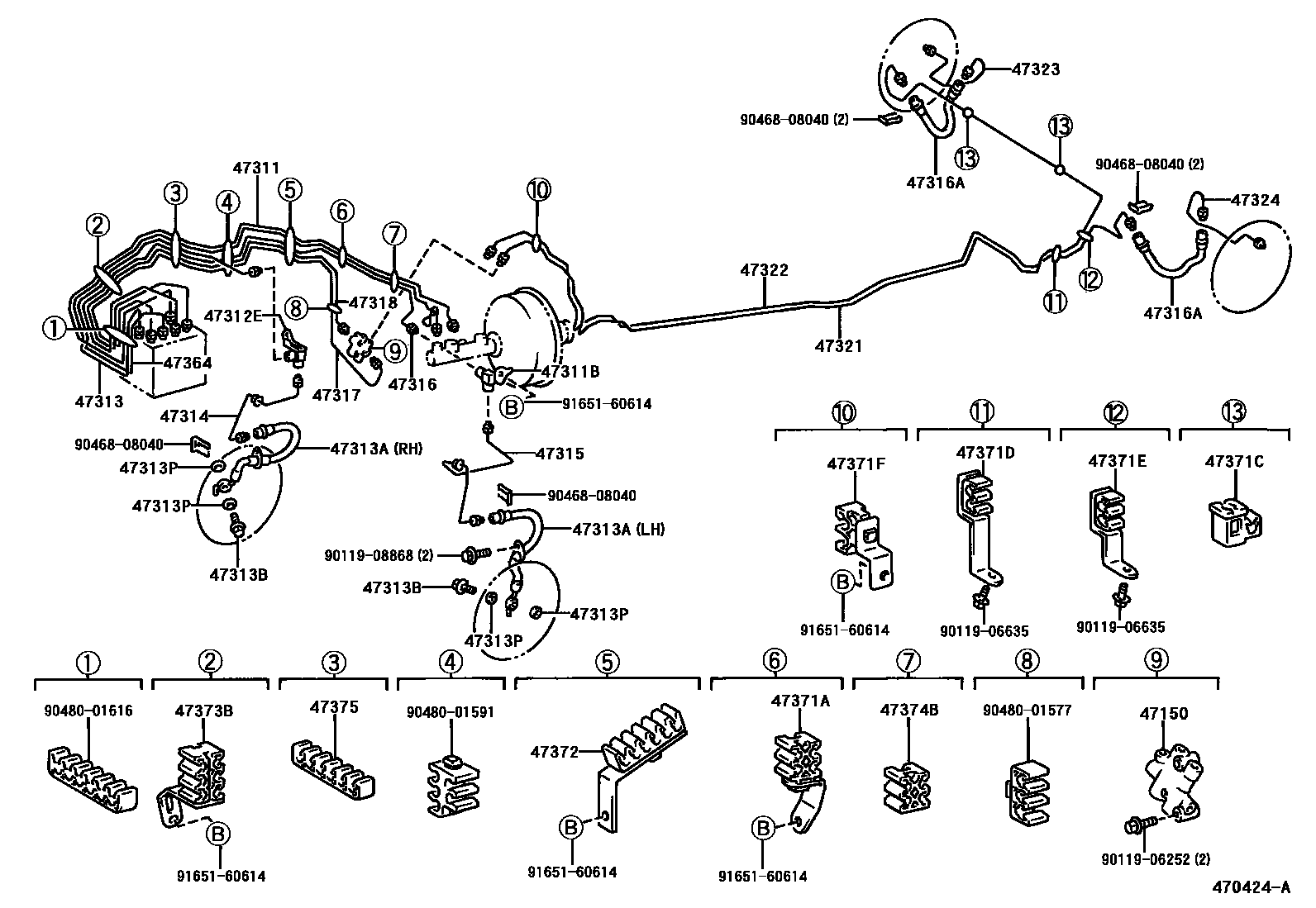

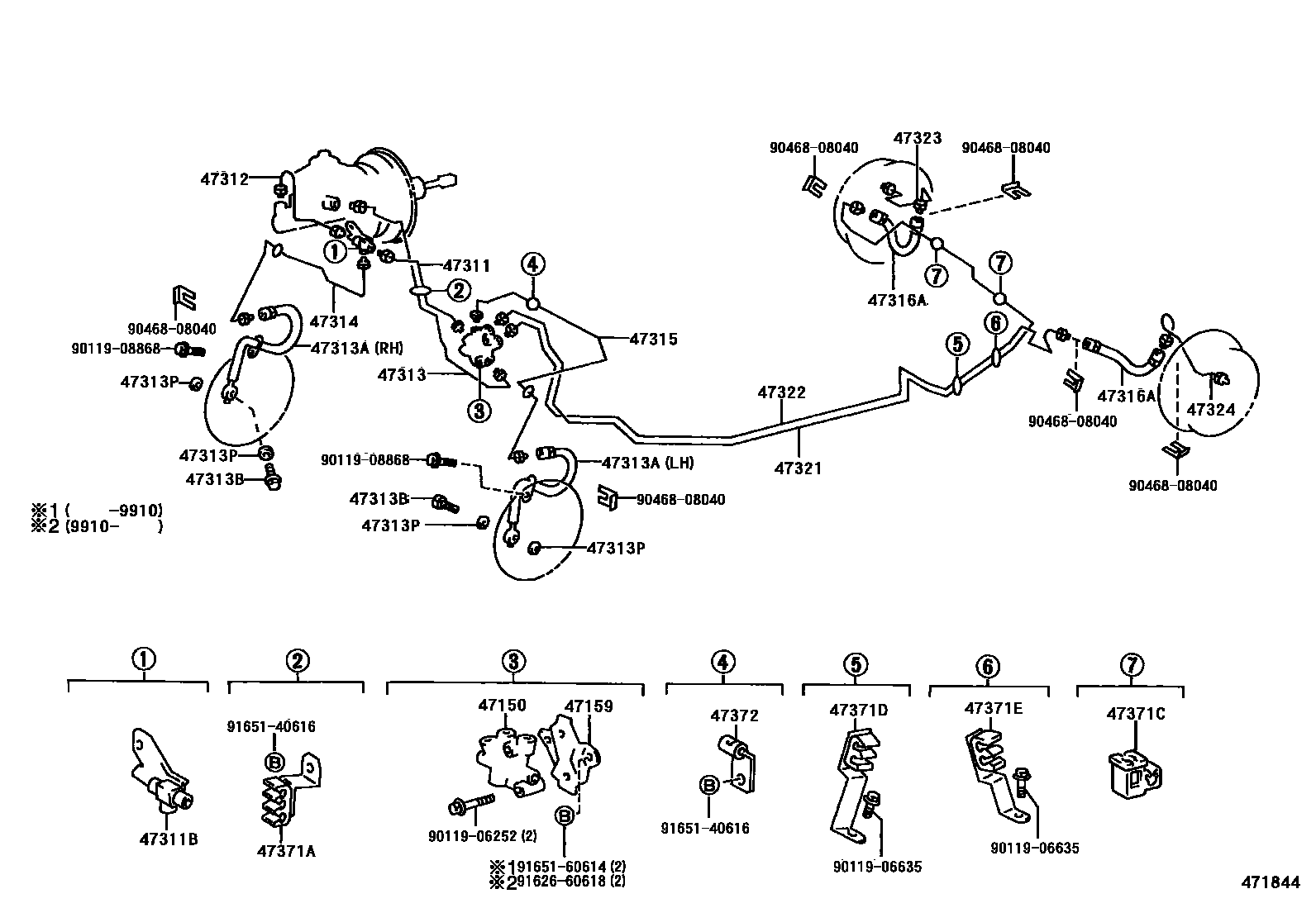

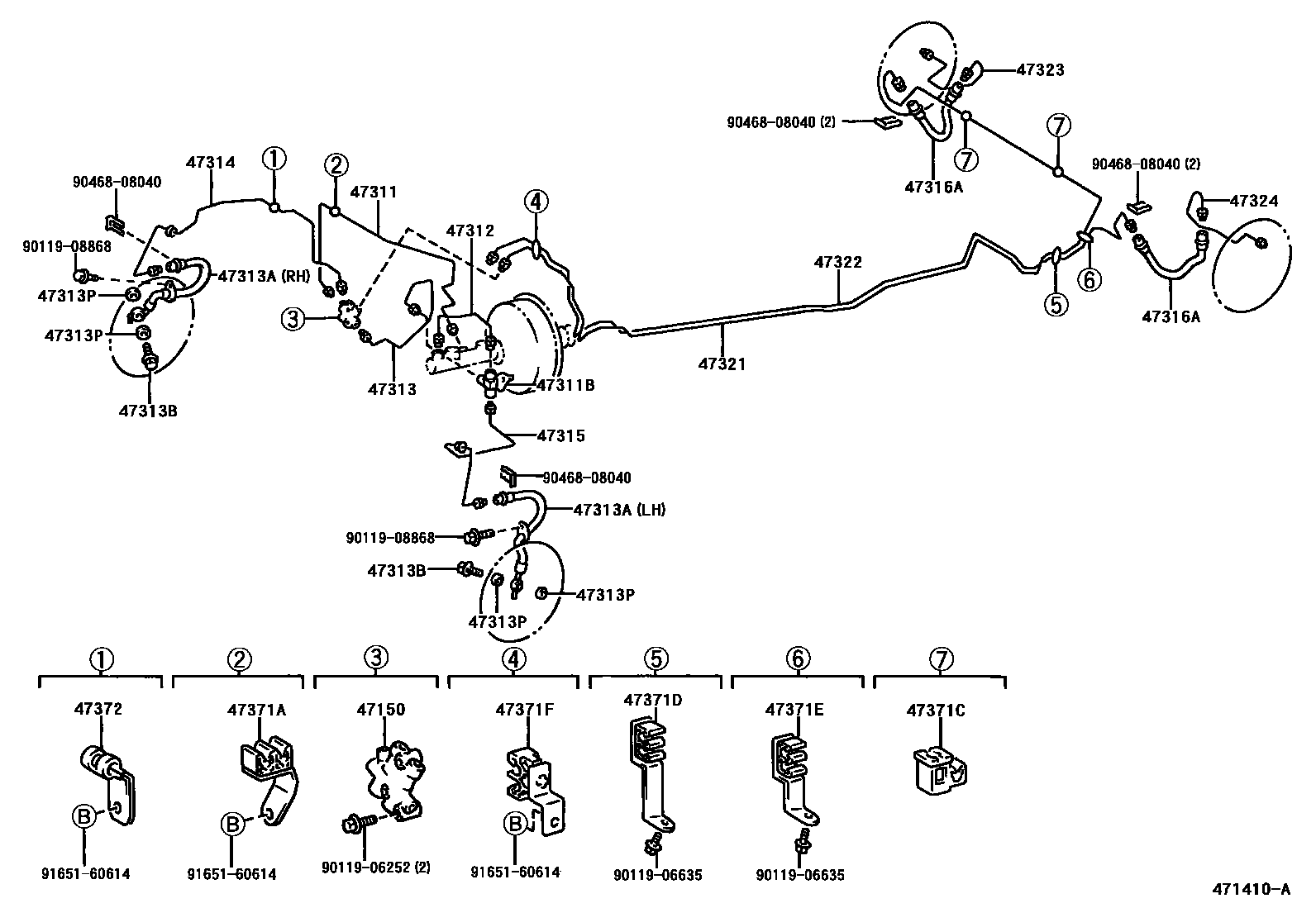

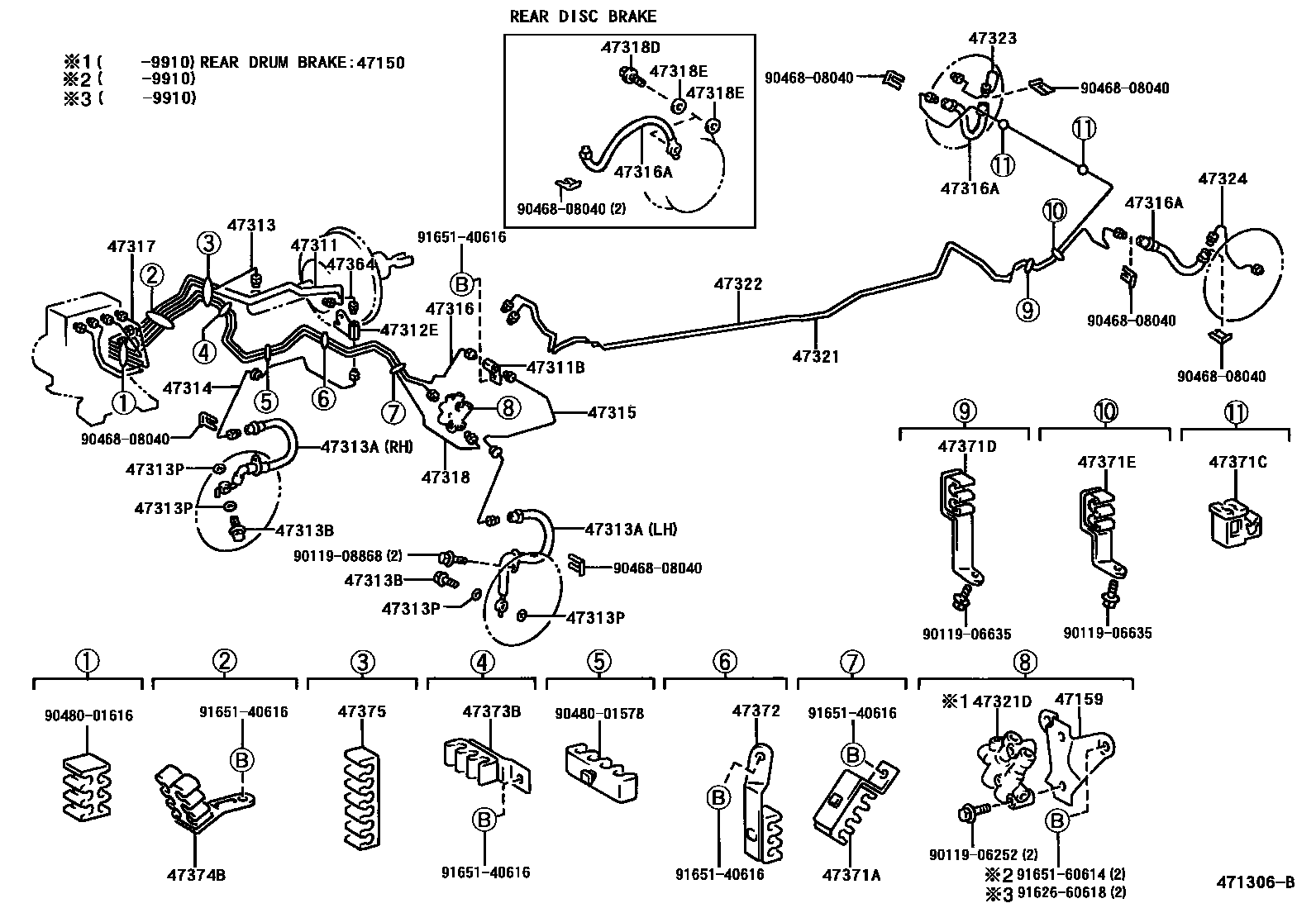

| 47311 | No. 1 front brake pipe | 47311-12560 · 47311-12580 · 47311-12590 · 47311-12610 · 47311-12620 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 47391-12010 · 90412-10116 · 90412-10208 · 90413-10159 |
| 47312 | No. 2 front brake pipe | 47312-12330 · 47312-12350 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10207 · 90904-12007 |
| 47313 | No. 3 front brake pipe | 47313-12370 · 47313-12390 · 47313-12400 · 47313-12410 · 47313-12430 |
| 47313A | No. 1 front flexible hose | 90947-02910 · 90947-02913 · 90947-02914 · 90947-02917 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12290 · 47314-12350 · 47314-12371 · 47314-12500 |
| 47315 | No. 5 front brake pipe | 47315-12420 · 47315-12450 · 47315-12460 |
| 47316 | No. 6 front brake pipe | 47316-12270 · 47316-12300 · 47316-12320 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02921 · 90947-02922 · 90947-02C41 |
| 47317 | No. 7 front brake pipe | 47317-12140 · 47317-12150 · 47317-12170 |
| 47318 | No. 8 front brake pipe | 47318-12280 · 47318-12290 · 47318-12310 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 90430-10074 |
| 47321 | No. 1 rear brake pipe | 47321-12130 · 47321-12190 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 |
| 47322 | No. 2 rear brake pipe | 47322-12280 · 47322-12340 |
| 47323 | No. 3 rear brake pipe | 47323-12250 |
| 47324 | No. 4 rear brake pipe | 47324-12210 |
| 47364 | No. 13 front brake pipe | 47364-12110 · 47364-12140 · 47364-12160 |
| 47371A | No. 1 brake pipe clamp | 47371-12090 · 47371-12100 · 47371-12190 · 47371-12200 |
| 47371C | No. 7 brake pipe clamp | 47371-12150 · 90949-01B45 |
| 47371D | No. 8 brake pipe clamp | 47375-12040 |
| 47371E | No. 9 brake pipe clamp | 47375-12060 |
| 47371F | No. 10 brake pipe clamp | 47375-12030 |
| 47372 | No. 2 brake pipe clamp | 47372-12060 · 47372-12070 · 90461-06119 |
| 47373B | No. 3 brake pipe clamp | 47373-12010 · 47374-12030 |
| 47374B | No. 4 brake pipe clamp | 47373-12010 · 47374-12030 · 47375-35120 |
| 47375 | No. 5 brake pipe clamp | 90949-01856 |
