Toyota COROLLA 制动总泵 — Figure 4702

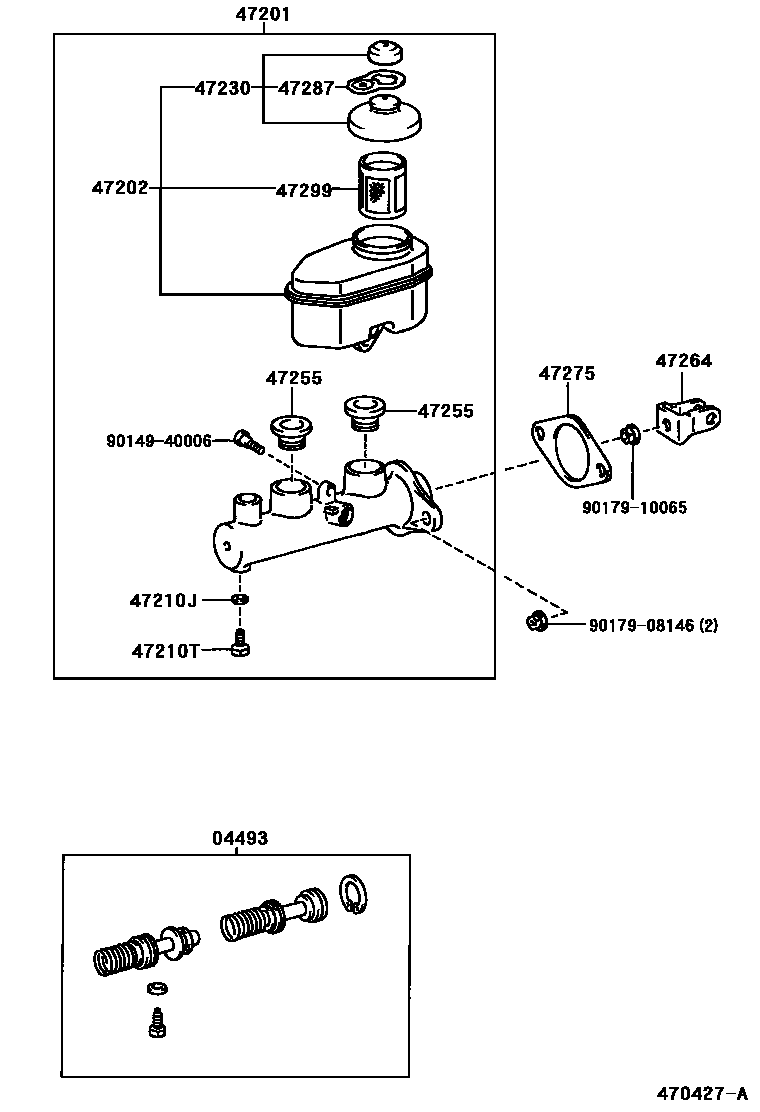

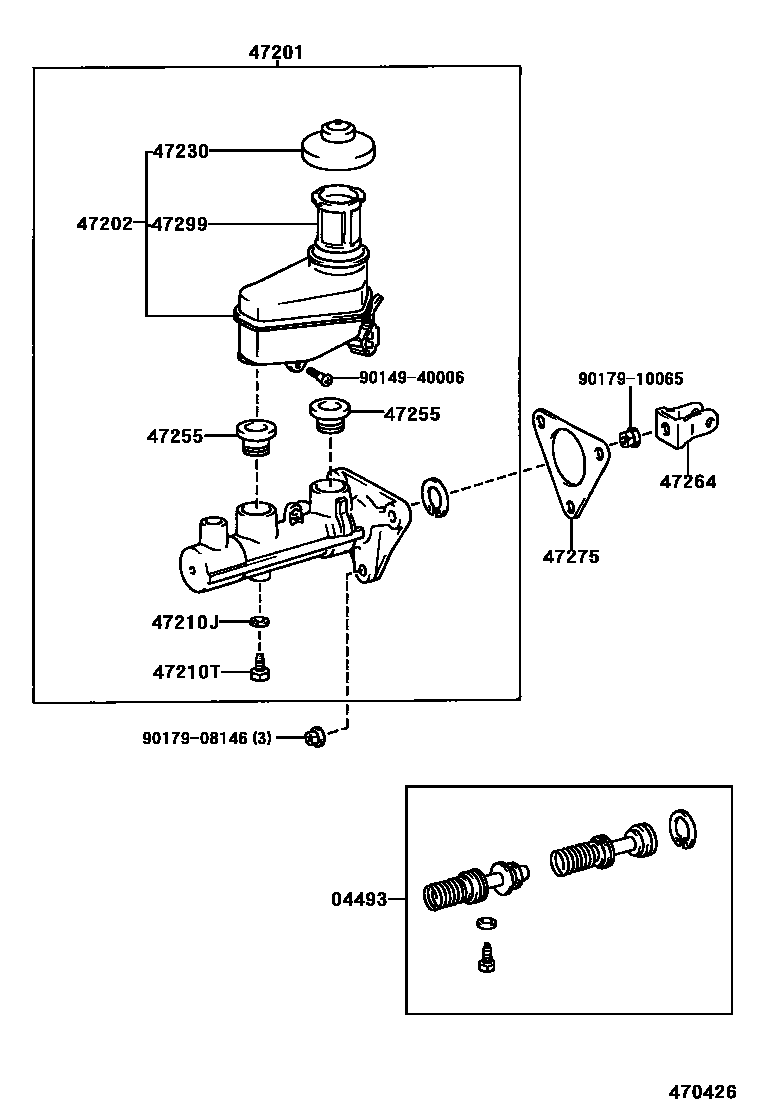

Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-12200 · 04493-16080 · 04493-32080 |
| 47201 | Brake master cylinder sub-assembly | 47201-1A020 · 47201-1A040 · 47201-1A050 · 47201-1A140 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-17050 · 47220-32060 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 · 47230-20140 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-16020 · 47264-32020 · 47264-33010 |
| 47275 | brake master cylinder gasket | 47275-12020 · 47275-32010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-24010 |
