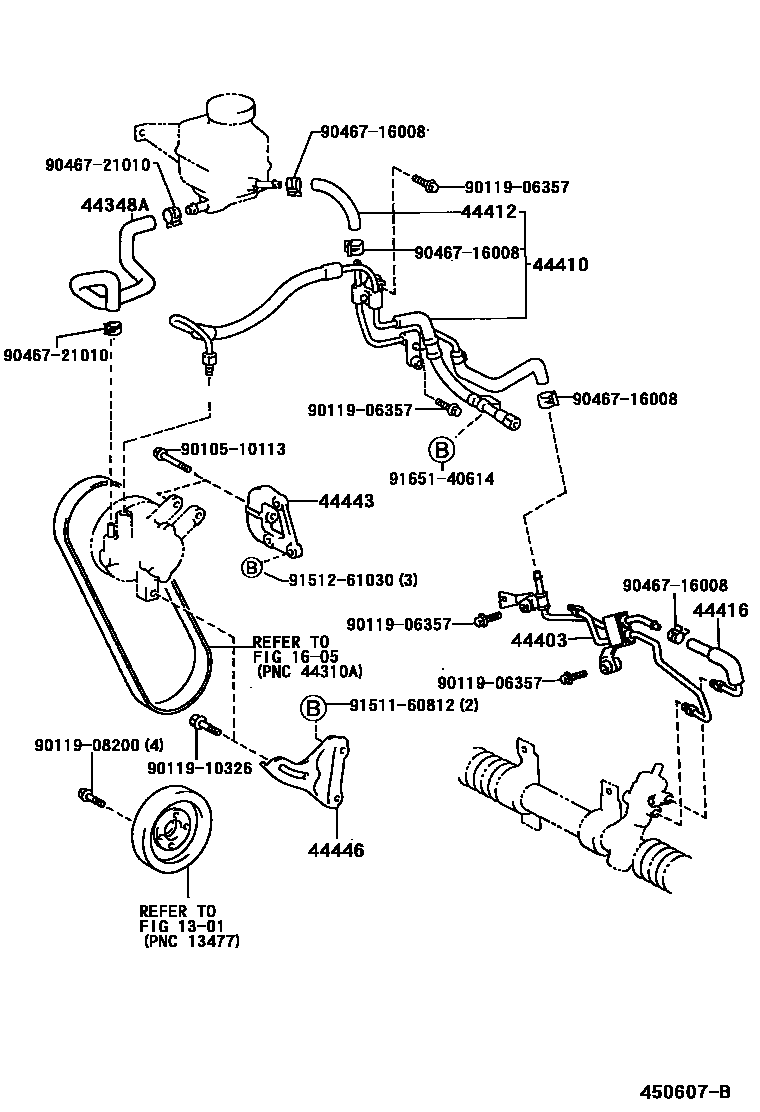

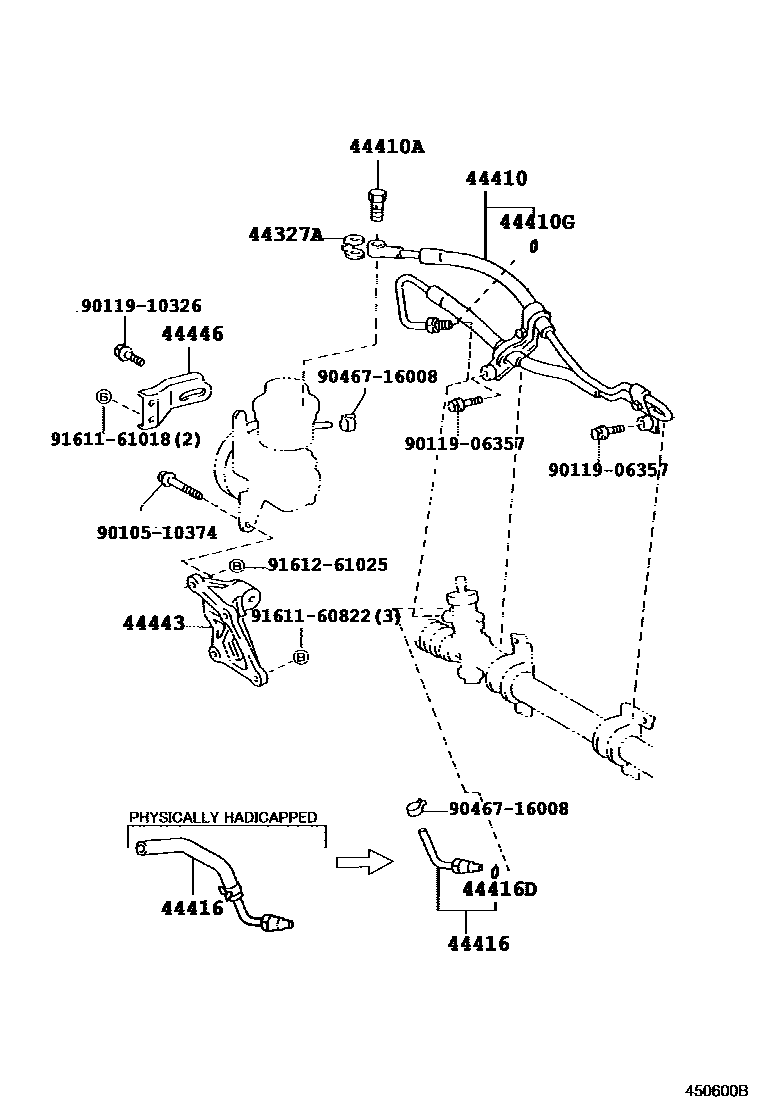

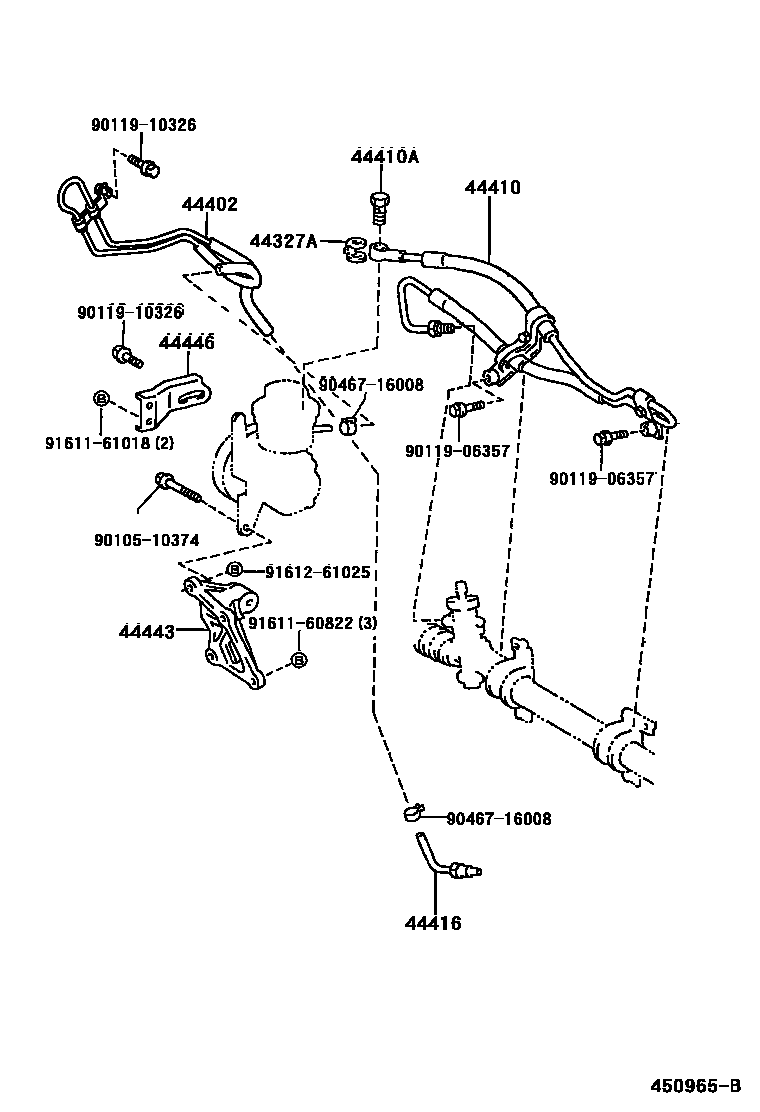

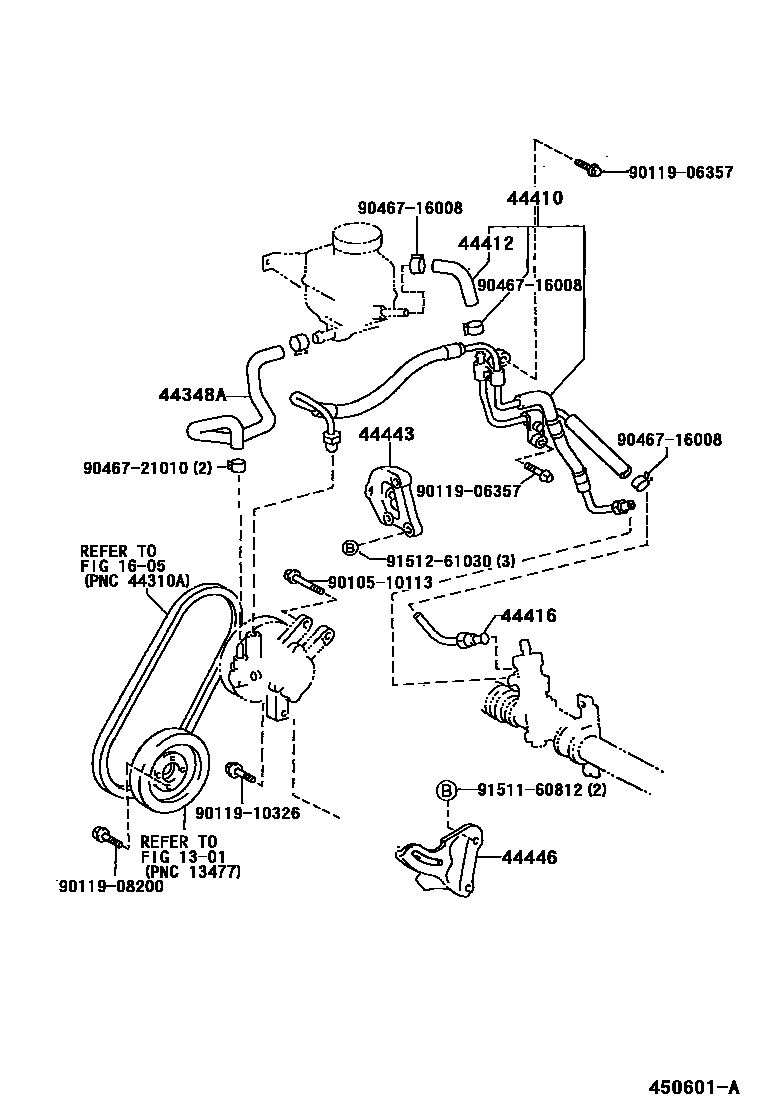

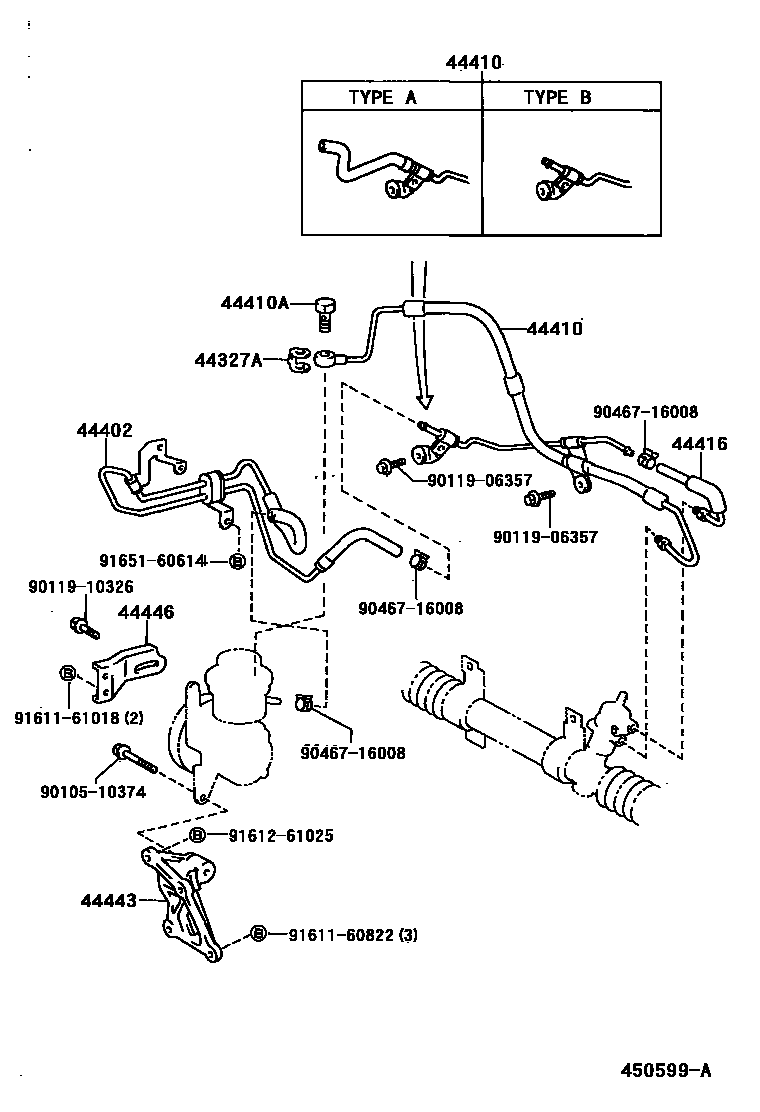

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-12070 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-12140 · 44402-12201 · 44402-12210 |
| 44403 | No. 1 pressure supply pipe sub-assembly | 44403-12061 · 44403-12062 |
| 44410 | Pressure supply pipe assembly | 44040-12121 · 44040-12182 · 44410-12391 · 44410-12451 · 44410-12481 · 44410-12492 · 44410-12493 · 44410-12500 · 44410-12512 · 44410-12540 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16012 |
| 44410G | O-ring (for pressure supply pipe) | 90301-07009 |
| 44412 | Oil return hose | 44412-12200 |
| 44416 | Oil return pipe (for steering gear outlet) | 44406-12160 · 44406-12171 · 44406-12181 · 44406-12220 · 44416-12240 |
| 44416D | O-ring (for oil return pipe) | 90301-07009 |
| 44443 | pump bracket | 44443-12070 · 44443-12100 |
| 44446 | Adjust the stand | 44446-12050 · 44446-12060 · 44446-12090 |
