Toyota COROLLA Front Drive Shaft — Figure 4302

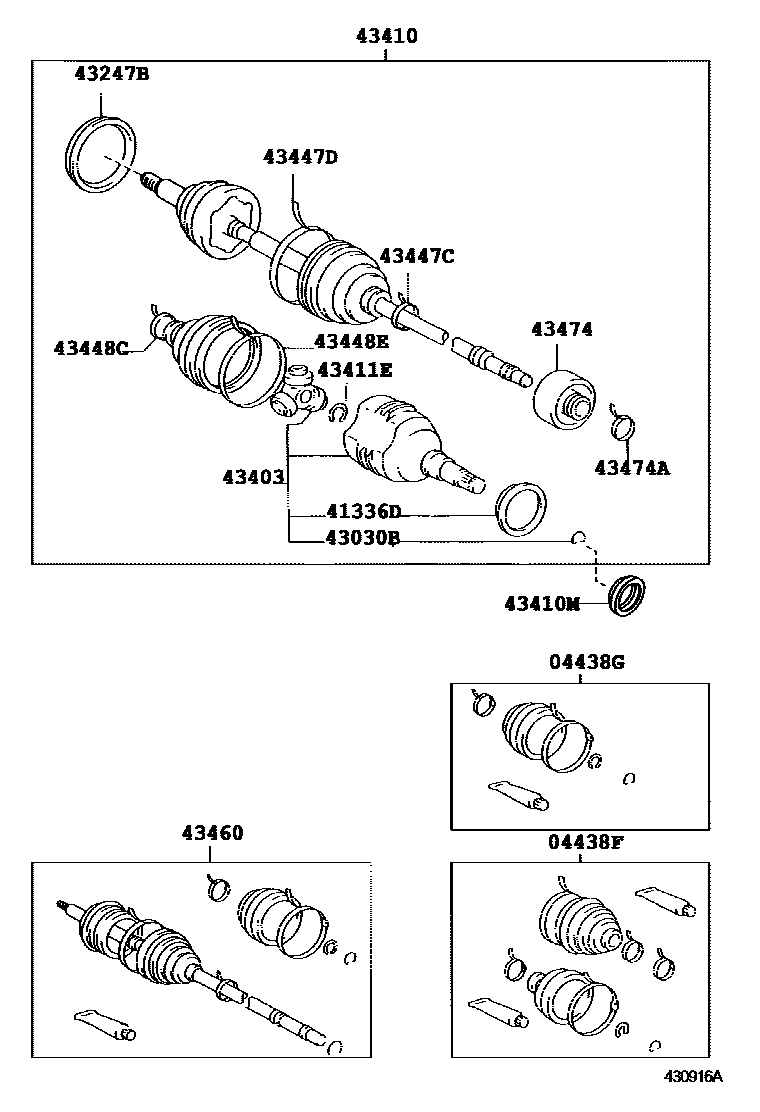

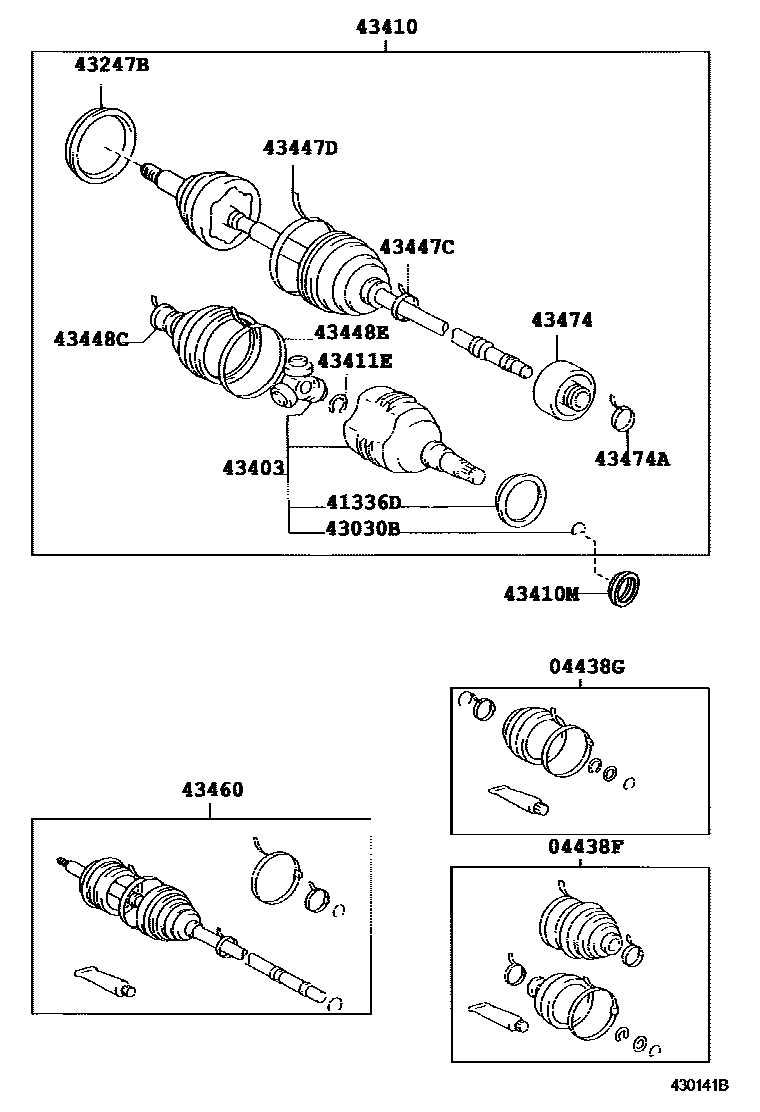

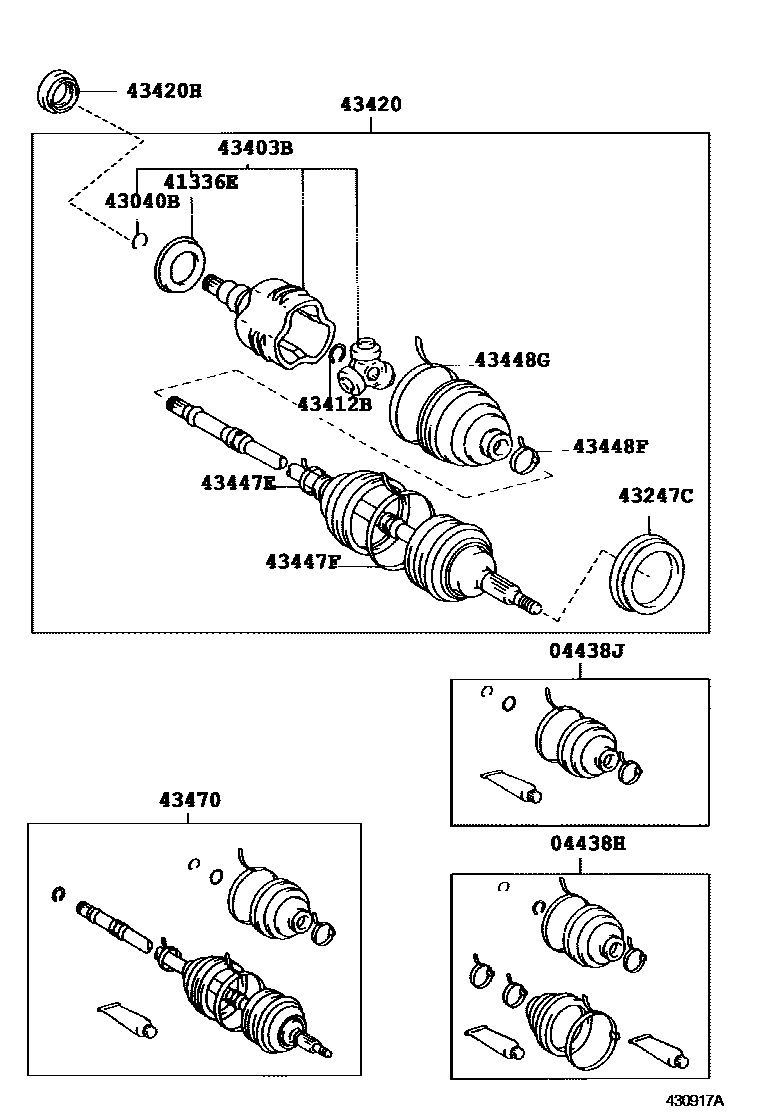

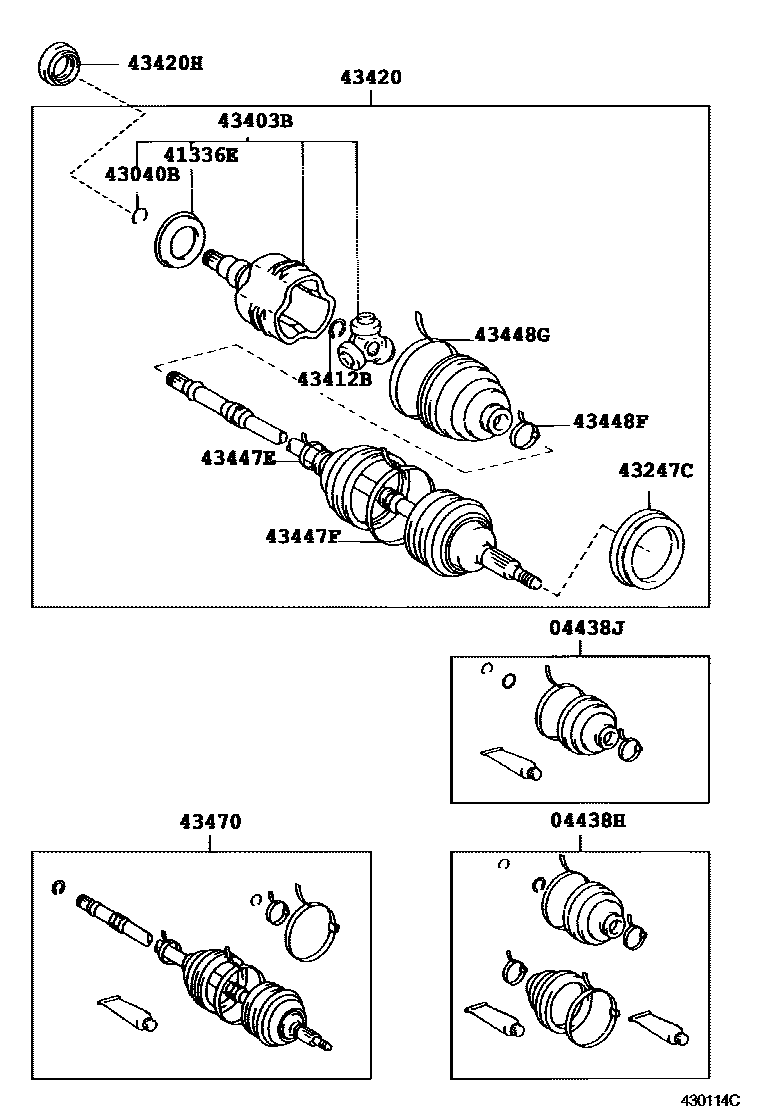

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12172 · 04438-12610 · 04438-20110 · 04438-20131 · 04438-20132 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-12410 · 04438-20121 · 04438-52051 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-12172 · 04438-12300 · 04438-12301 · 04438-12302 · 04438-12650 · 04438-12660 · 04438-20132 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-12410 · 04438-12470 · 04438-20121 · 04438-32230 · 04438-32231 · 04438-52051 |
| 41336D | Right front driveshaft dust cover | 41336-12010 |
| 41336E | Left front driveshaft dust cover | 41336-12010 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43403 | Right front axle inner universal joint assembly | 43403-12040 |
| 43403B | Left front axle inner universal joint assembly | 43403-12040 |
| 43410 | Right front driveshaft assembly | 43410-20420 · 43410-20421 · 43410-20422 · 43410-20423 · 43410-20440 · 43410-20441 · 43410-20450 · 43410-20451 · 43410-20460 · 43410-20461 · 43410-20462 · 43410-20463 |
| 43410M | Front drive shaft right oil seal | 90311-34012 · 90311-34016 · 90311-34023 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-12310 · 43420-12311 · 43420-12312 · 43420-12313 · 43420-12330 · 43420-12331 · 43420-12332 · 43420-12333 · 43420-20111 · 43420-20112 · 43420-20281 · 43420-20282 |
| 43420H | Front drive shaft left oil seal | 90311-34013 · 90311-34017 · 90311-34026 · 90311-34028 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12150 · 42345-16010 · 42345-16030 · 42345-20100 · 90949-01078 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12140 · 42345-16020 · 42345-16040 · 42345-20120 · 90949-01080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12150 · 42345-16010 · 42345-16030 · 42345-20100 · 90949-01078 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12140 · 42345-16020 · 42345-16040 · 42345-20120 · 90949-01080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 90949-01076 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 90949-01076 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-29098 · 43460-29099 · 43460-29117 · 43460-29118 · 43460-29119 · 43460-29120 · 43460-29121 · 43460-29122 · 43460-29167 · 43460-29168 · 43460-29198 · 43460-29199 · 43460-29200 · 43460-29201 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19688 · 43470-29107 · 43470-29108 · 43470-29237 · 43470-29238 · 43470-29345 · 43470-29346 · 43470-29347 · 43470-29348 · 43470-29349 · 43470-29355 · 43470-29356 · 43470-29357 · 43470-29358 · 43470-29359 |
| 43474 | drive shaft damper | 43474-12040 · 43474-20050 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 · 42345-16030 · 90949-01947 |
