Toyota COROLLA 后油泵和调速器(ATM) — Figure 3511

Toyota COROLLA EPC diagram 3511, 后油泵和调速器(ATM), with 1 images and 9 PNC and OE references.

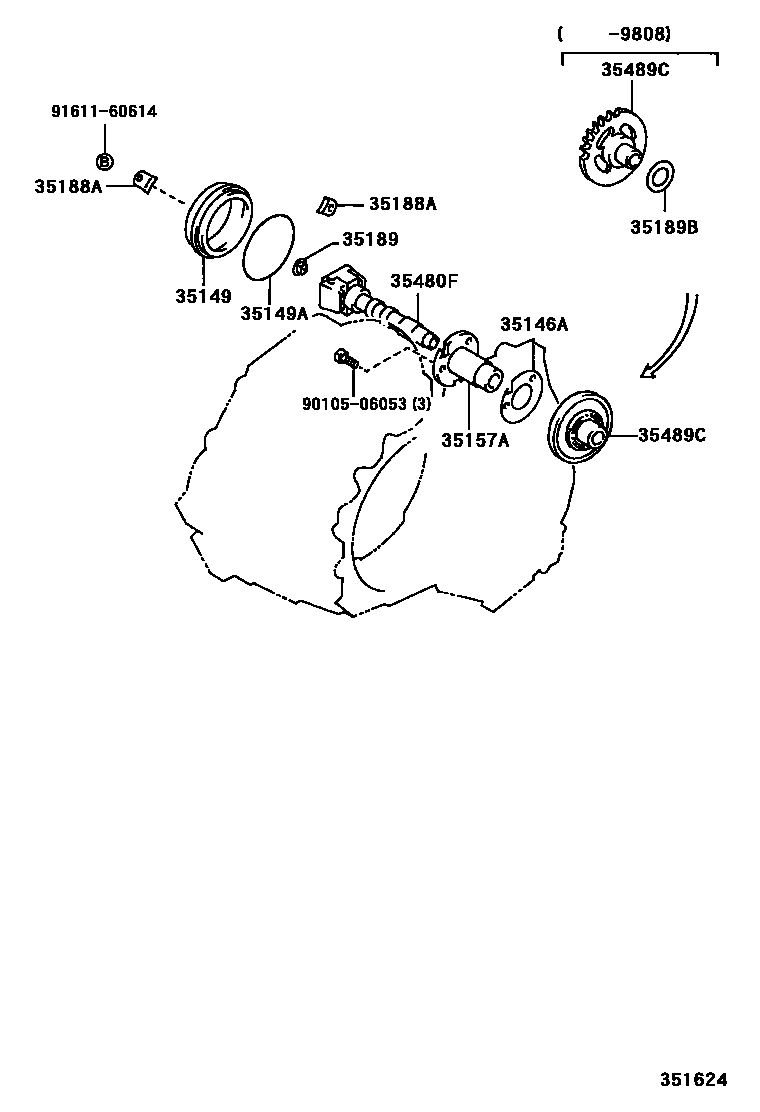

Toyota COROLLA 后油泵和调速器(ATM) EPC diagram — 351624
后油泵和调速器(ATM) — 351624 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
35146AGovernor body gasket35146-20010
35149governor cover35149-20010
35149AO-ring (for governor cover)90301-68001
35157Agovernor body adapter35157-20031
35188AGovernor cover bracket35188-20010
35189No. 1 governor thrust washer35189-32011
35189BNo. 2 governor thrust washer35189-12010
35480FGovernor body assembly35480-12030
35489CGovernor driven gear35489-16020
