Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503

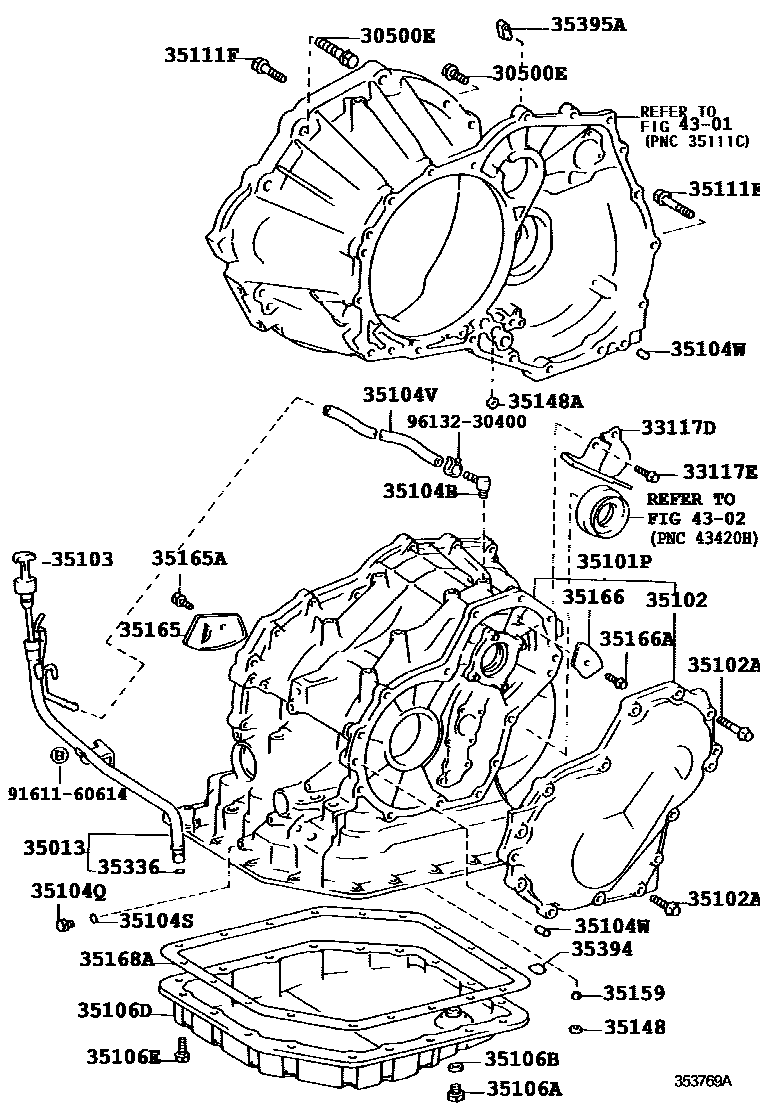

Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 29 PNC and OE references.

Toyota COROLLA 变速器壳和油底壳(ATM) EPC diagram — 353769A
变速器壳和油底壳(ATM) — 353769A (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
30500EBolts (for securing transaxle and engine)90105-10077 · 90119-12168 · 91612-41025 · 91619-61245
33117Dautomatic transmission guard plate33117-12030
33117EBolts (for automatic transmission guard)90105-08040
35013Transmission oil pipe sub-assembly35013-12391
35101PTransmission axle housing and cover sub-assembly35101-12023
35102Transmission axle rear cover sub-assembly35102-20050
35102ABolts (for fixing the transmission axle rear cover)90105-08065 · 90105-08068
35103Transmission oil level scoring assembly35103-12271
35104BVentilation plug No. 1 (ATM)90930-03101
35104QNo. 1 screw plug (for transmission axle housing)90341-08001
35104SO-ring (for transmission axle housing plug No. 1)90301-06196
35104VHoses (for breather plug)90447-11039
35104WDirect sales (for transmission axle housing)90250-10021 · 90250-11001
35106ADrain plug sub-assembly (ATM)90341-10006
35106BDrain plug gasket (ATM)35178-30010
35106DAutomatic transmission axle oil pan sub-assembly35106-12070
35106EBolts (for transaxle oil pan)90119-06173
35111FBolts (for securing transaxle housing and transaxle housing)90105-08065 · 90105-08066 · 90105-08068 · 90105-08071
35148Governor oil supply pipe No. 1 gasket35148-16010
35148AGovernor oil supply pipe gasket No. 235148-12010
35159brake drum gasket35159-20010
35165No. 1 gearbox block35165-12010
35165ABolt (for gearbox block No. 1)90105-06049
35166No. 3 gearbox block35166-12010
35166ABolt (for gearbox block No. 3)90105-06049
35168AAutomatic transaxle oil pan gasket35168-12020
35336O-ring (for transmission filler pipe)90301-09173
35394Oil filter magnet (for transmission)35394-30011
35395Agovernor oil filter35395-12020
